Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces - Front Panel

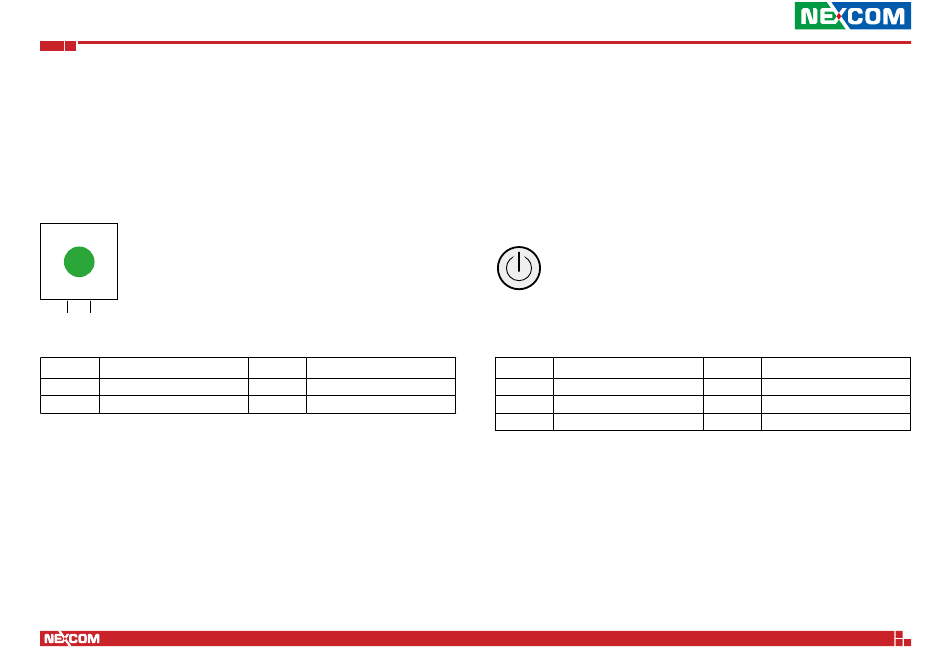

Reset Button

Connector location: SW1
1 2
Pin Definition
1 GND
3 GND
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 Reset signal
4 GND

Power Button

Connector location: SW2
Pin Definition
1 GND
3 Power button signal
L1 Bi-color LED
9
Pin Definition
2 Power button signal
4 GND
L2 Bi-color LED
