Summary of Contents for Nexcom NSA 7136

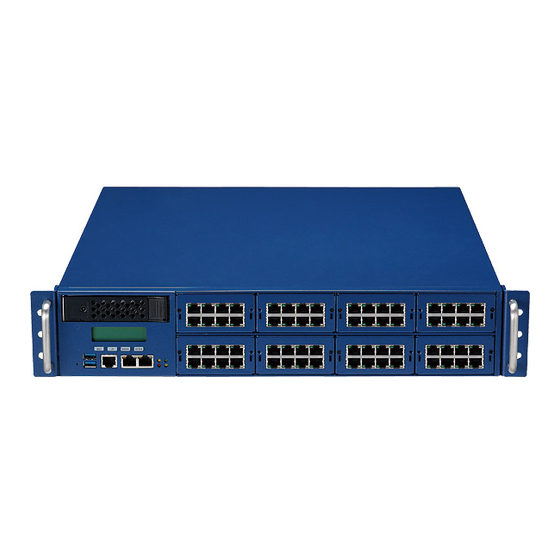

- Page 1 NEXCOM International Co., Ltd. Network and Communication Solutions Network Security Appliance NSA 7136 User Manual NEXCOM International Co., Ltd. www.nexcom.com Published November 2017...
-
Page 2: Table Of Contents
LCM Header ...................14 Knowing Your NSA 7136 ................3 USB Headers ..................14 Front Panel ..................3 Fan Headers ...................15 Rear Panel ...................4 ATX Connector ................15 ATX Connector ................16 Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 3 Default Configuration ................28 Entering Setup ..................28 Legends ....................28 BIOS Setup Utility ..................30 Main ....................30 Advanced ..................31 Intel RC Setup ..................39 Security ....................50 Boot ....................50 Save & Exit ..................51 Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 4: Preface
No describes how to keep the system CE compliant. part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM Declaration of Conformity International Co., Ltd. -
Page 5: Rohs Compliance
0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard... -
Page 6: Warranty And Rma
(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, ▪ If RMA goods can not be repaired, NEXCOM will return it to the customer please note clearly which components are included. Otherwise, NEXCOM without any charge. - Page 7 ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 8: Safety Information
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. viii Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 9: Safety Precautions
RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS. 10. All cautions and warnings on the equipment should be noted. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 10: Technical Support And Assistance
Preface Technical Support and Assistance Conventions Used in this Manual 1. For the most updated information of NEXCOM products, visit NEXCOM’s Warning: website at www.nexcom.com. Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself 2. -
Page 11: Global Service Contact Information
13F, No.920, Chung-Cheng Rd., ZhongHe District, Beijing, 100094, China New Taipei City, 23586, Taiwan, R.O.C. Tel: +86-10-5704-2680 Tel: +886-2-8226-7796 Fax: +86-10-5704-2681 Fax: +886-2-8226-7792 Email: sales@nexcom.cn Email: sales@nexcom.com.tw www.nexcom.cn www.nexcom.com.tw Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 12 Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: frankyang@nexcom.cn www.nexcom.cn Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 13: Package Contents
Preface Package Contents Before continuing, verify that the NSA 7136 package that you received is complete. Your package should have all the items listed in the following table. Item Part Number Name Description 19S00713600X0 NSA 7136 50311F0095X00 Flat Head Screw Long Fei:F6#32Tx5 Nylok NIGP... -
Page 14: Ordering Information
Preface Ordering Information The following information below provides ordering information for NSA 7136. Barebone NSA 7136 (P/N: 10S00713600X0) 2U Intel ® Xeon ® E5-2600 v4/v3 PCH C612, with LCM, 1 swappable 3.5” HDD tray, 3 swappable system fans, 8 LAN module (NI/NX series) bays, 700W PSU... -
Page 15: Chapter 1: Product Introduction
▪ Support CRPS (1 + 1) redundant power supply ▪ Support DDR4 1866/2133/2400 ECC & REG, up to 512GB ▪ Support LCD module ▪ Modular design supports 8 LAN module slots Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 16: Hardware Specifications
▪ CE approval ▪ 1 x Power button switch ▪ FCC Class A ▪ 1 x VGA Port ▪ UL ▪ 2 x USB 2.0 ports Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 17: Knowing Your Nsa 7136
Indicates the power, hard drive and GPIO activity of the system. LED indicators Management LAN ports RJ45 type Color console port Power Green GPIO Power LED Yellow System Failure HDD LED System Failure GPIO Yellow Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 18: Rear Panel
AC Power Sockets Dual redundant power supply sockets, plug an AC power cord here before turning on the system. Power VGA USB AC power switch ports sockets Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 19: Chapter 2: Jumpers And Connectors
Static electricity can damage many of the electronic ▪ Use correct screws and do not over tighten screws. components. Humid environments tend to have less static electricity than Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 20: Jumper Settings
(on) and open (off). Two-Pin Jumpers: Open (Left) and Short (Right) Three-Pin Jumpers: Pins 1 and 2 are Short Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 21: Locations Of The Jumpers And Connectors
The figure below shows the location of the jumpers and connectors. JBIS1 JMEUP1 SATA2 SATA3 J10 VGACONN1 SATA1 JP12 JP13 LAN1 CON1 JP15 JP16 FAN1 JP17 JP18 FAN2 SATA4 Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 22: Jumpers
Function Enable some special 1-2 On Normal 1-2 On commands 2-3 On Clear CMOS Disable some special 1-2 On: default 2-3 On commands 2-3 On: default Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 23: Me Firmware Update
Connector location: JMEUP1 Function Function 1-2 On Normal 1-2 On Normal 2-3 On ME Force Update 2-3 On Password Clear 1-2 On: default 1-2 On: default Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 24: Bios Recovery
Connector location: JBIS1 Connector location: JWDT Function Function 1-2 On Normal 1-2 On 2-3 On Recover BIOS 2-3 On Reset at WDTO 1-2 On: default 2-3 On: default Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 25: Console Type Selection (Rts/Cts)
Connector location: JP12 Function Function 1-2 On RTS to CTS 1-2 On RTS to CTS 2-3 On Normal 2-3 On Normal 2-3 On: default 2-3 On: default Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 26: Connector Pin Definitions
Connector Pin Definitions External Connectors System Reset Button RJ45 Console Port Connector location: SW3 Connector location: LAN1 Definition Definition Definition SP_RTS1_R SP_DTR1_R RST_BTN_N SP_TXD1_R SP_DCD1_R SP_RXD1_R SP_DSR1_R SP_CTS1_CON Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 27: Internal Connectors
Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180) Connector location: VGACONN1 Connector location: SATA1, SATA2, SATA3 and SATA4 Definition Definition Definition Definition DACROA_B DACGOA_B DACBOA_B VGA_VCC DDC_DATAO_B AHSYNCO_B AVSYNCO_B DDC_CLKO_B Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 28: Lcm Header
Connector type: 1x6 6-pin header, 2.0mm Connector type: 1x6 6-pin header, 2.0mm Connector location: J17 Connector location: J10 and J21 Definition Definition Definition Definition LED_KR_N LED_KG_N Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 29: Fan Headers
Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector type: 2x4 8-pin header, 4.2mm pitch Connector location: FAN1 and FAN2 Connector location: CON1 Definition Definition Definition Definition P12V FAN_TACH FAN_PWM Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 30: Atx Connector
Chapter 2: Jumpers and Connectors ATX Connector Connector type: 1x4 4-pin header, 5.08mm pitch Connector location: J7 Definition Definition Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 31: Pcie Slots
TX2P 3.3V TX2N 3.3V RX2P 3.3V P3V3AUX RX2N PRSNT# WAKE# TX3P BYPASS GATE Enable TX3N CLK_P RX3P CLK_N TX0P RX3N BYPASS_B Enable TX0N RX0P BYPASS_C Enable Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 32 Chapter 2: Jumpers and Connectors Definition Definition BYPASS_D Enable TX4P TX4N RX4P RX4N TX5P TX5N RX5P RX5N TX6P TX6N RX6P RX6N TX7P TX7N RX7P RX7N Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 33: Block Diagram
1 x LCM, Back Plane 2 x USB 3.0 Port 1 x Console Port Up to 8 LAN Module 1 x MGMT LAN Port 1 x SW Bottom Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 34: Chapter 3: System Setup
1. Remove the screws on the chassis cover then put them in a safe place 2. Gently slide the cover outwards, then lift up the cover to remove it. for later use. Lift here Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 35: Installing An External Sata Hard Drive
1. Push the eject button on the HDD drive bay to release the latch. 2. Grab on the latch and pull the drive tray out gently. Eject button Latch Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 36 4. Repeat step 3 for securing the screws on the other side of the HDD tray. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 37: Installing A Lan Module
1. Remove the screw on the LAN module then put them in a safe place for later use. Insert here 3. Once the handle is firmly secured in position, pull the handle outwards to remove the LAN module bay. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 38 User needs to install appropriate and UL approved Laser Class I Transceivers, rated 3.3Vdc, max. 1W. Connector side 5. Secure the module in place with screws, and slide the tray back into the bay. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 39: Installing The Rackmount Rails
1. Extend the rackmount rail to its maximum length. are used to support the system in a rack cabinet. Slide here Rack ear Rack ear Fully extended rail Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 40 5. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).” Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 41: Chapter 4: Bios Setup
This chapter describes how to use the BIOS setup program for the The settings made in the setup program affect how the computer performs. NSA 7136. The BIOS screens provided in this chapter are for reference only It is important, therefore, first to try to understand all the setup options, and and may change if the BIOS is updated in the future. -
Page 42: Default Configuration
Powering on the computer and immediately pressing allows you to Load previous values. enter Setup. Load optimized default values. Saves and resets the system. Press <Enter> to enter the highlighted sub-menu Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 43 When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 44: Bios Setup Utility
+/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1245. Copyright (C) 2015 American Megatrends, Inc. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 45: Advanced
ESC: Exit Configuration settings for serial port 1. Serial Port 2 Configuration Version 2.17.1245. Copyright (C) 2015 American Megatrends, Inc. Configuration settings for serial port 2. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 46 Enables or disables the serial port. Change SettingsGSIO60 Change SettingsGSIO60 Selects an optimal setting for the Super IO device. Selects an optimal setting for the Super IO device. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 47 System Fan1 to System Fan3 Speed Detects and displays the current System Fan1, Fan2 and Fan3 speed. VCOREA to P12V Detects and displays the output voltages. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 48 Legacy OS. Default value is Always Enable The options are 7 and 8. which means Legacy Console Redirection is enabled for Legacy OS. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 49 Enables or disables SR-IOV support. No Snoop Enables or disables the PCI Express device’s no snoop option. Maximum Payload Selects the maximum TLP payload size of the PCI Express devices. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 50 OS, CSM will be enabled or disabled automatically. Network Enables or disables the boot option for legacy network devices. Storage Enables or disables the boot option for legacy storage devices. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 51 Security Device Support Enables or disables BIOS support for security device. O.S. will not show security device. TCG EFI protocol and INT1A interface will not be available. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 52 Disable Keeps USB devices available only for EFI applications. XHCI Hand-off This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 53: Intel Rc Setup
Enables or disables Intel TXT support. Enables or disables Virtual Machine Extensions. Enable SMX Enables or disables Secure Mode Extensions. Hardware Prefetcher Enables or disables the MLC streamer prefetcher. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 54 Configures the number of cores to enable. 0 means all cores. CPU Socket 1 Configuration IoT Cfg Cbo Bitmap Processor settings for the CPU on socket 1. Configures the bit to enable IOT/OCLA. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 55 Version 2.17.1245. Copyright (C) 2015 American Megatrends, Inc. Cores Enabled Configures the number of cores to enable. 0 means all cores. IOT Cfg Cbo Bitmap Configures the bit to enable IOT/OCLA. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 56 Version 2.17.1245. Copyright (C) 2015 American Megatrends, Inc. Version 2.17.1245. Copyright (C) 2015 American Megatrends, Inc. Link Speed Mode Configures the link speed mode. Link Frequency Select Configures the QPI frequency. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 57 Version 2.17.1245. Copyright (C) 2015 American Megatrends, Inc. Version 2.17.1245. Copyright (C) 2015 American Megatrends, Inc. Memory Frequency Configures the maximum frequency of the memory. Do not select Reserved. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 58 No PCIe Port Active Configures the workaround solution for ECO when the PCIe ports are not active. IIO0 Redriver Control Configures the redriver options for IIO0. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 59 No PCIe Port Active Configures the workaround solution for ECO when the PCIe ports are not active. IIO1 Redriver Control Configures the redriver options for IIO1. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 60 Intel VT for Directed I/O Enables or disables Intel Virtualization Technology for Directed I/O (VT-d) by ® reporting the I/O device assignment to VMM through DMAR ACPI tables. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 61 Settings for PCI Express Root Port 1, 3, 4 and 5. PCH Display Enables or disables the PCH Display. PCH State After G3 Configures the PCH state after G3. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 62 This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
- Page 63 Enables or disables automatic LAN Bypass function. Trunk Clock Gating Enables or disables Trunk Clock Gating. USB Ports Per-Port Enables or disables control of each USB port. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
-
Page 64: Security
NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... -
Page 65: Save & Exit
To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual... - Page 66 Confirm by selecting Yes. Boot Override To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>. Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved. NSA 7136 User Manual...
