Chapter 2: Jumpers and Connectors

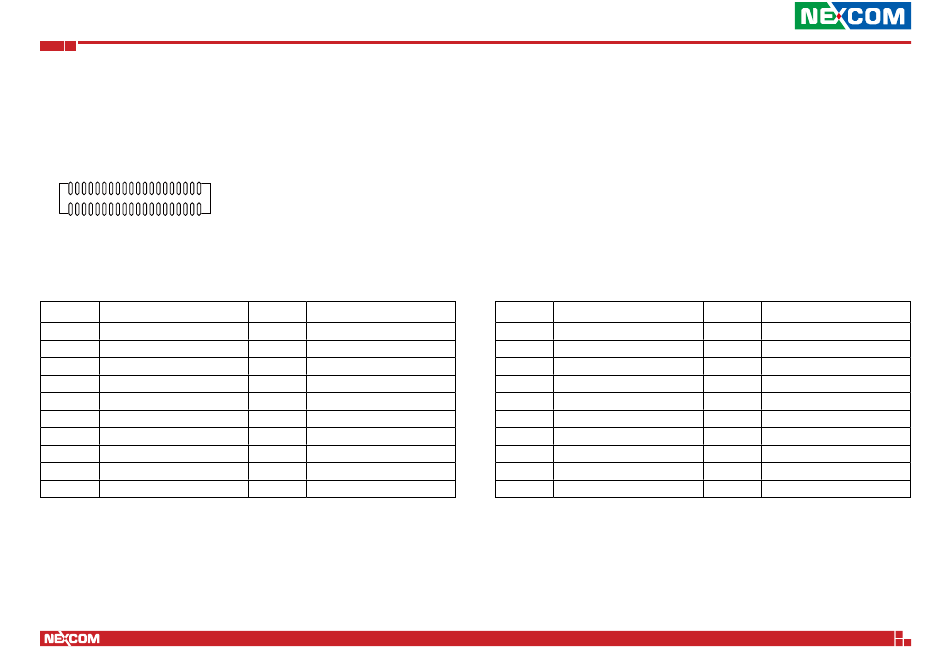

PoE Box Header (Connector to PoE module)

Connector type: 2 x 20 = 40 Pin, 1.27mm
Connector location: JP2, JP5, JP6, JP79
39 1
40 2
JP2 (for Marvell 2.5GBE RJ45 P1~P8 PoE)
Pin Definition
1 N.C.
2 VPORT_NEG_OUT4
3 N.C.
4 N.C.
5 N.C.
6 VPORT_NEG_OUT3
7 N.C.
8 N.C.
9 N.C.
10 VPORT_NEG_OUT2
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
11 N.C.
12 N.C.
13 P12V
14 VPORT_NEG_OUT1
15 GND
16 V_52V_OUT
17 P3V3
18 V_52V_OUT
19 P3V3
20 V_52V_OUT
Pin Definition
21 GND
22 V_52V_OUT
23 POE1_DETECT
24 V_52V_OUT
25 GND
26 V_52V_OUT
27 DRG_SPI_MISO
28 VPORT_NEG_OUT8
29 GND
30 N.C.
43
Pin Definition
31 DRG_SPI_MOSI
32 VPORT_NEG_OUT7
33 GND
34 N.C.
35 DRG_SPI_SCK
36 VPORT_NEG_OUT6
37 GND
38 N.C.
39 DRG_SPI_CS
40 VPORT_NEG_OUT5
