Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

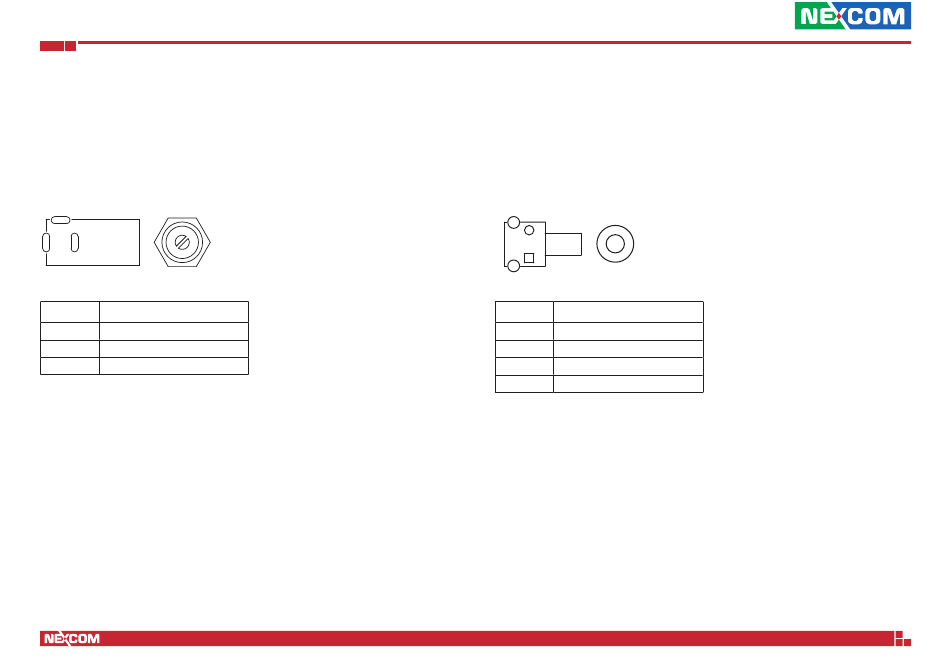

DC In Jack

Connector location: CN2, CN3
2
3
1
Pin
Definition
1
DC_IN
2
GND
3
GND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.

Power Button

Connector location: SW1
2
1
Pin
Definition
1
GND
2
PWRBTN#_IN
3
GND
4
GND
9
DNA 1170 Series User Manual
