Intel Xdp Connector (For Debug) - Nexcom FTA 1170 Series User Manual

Chapter 2: Jumpers and Connectors

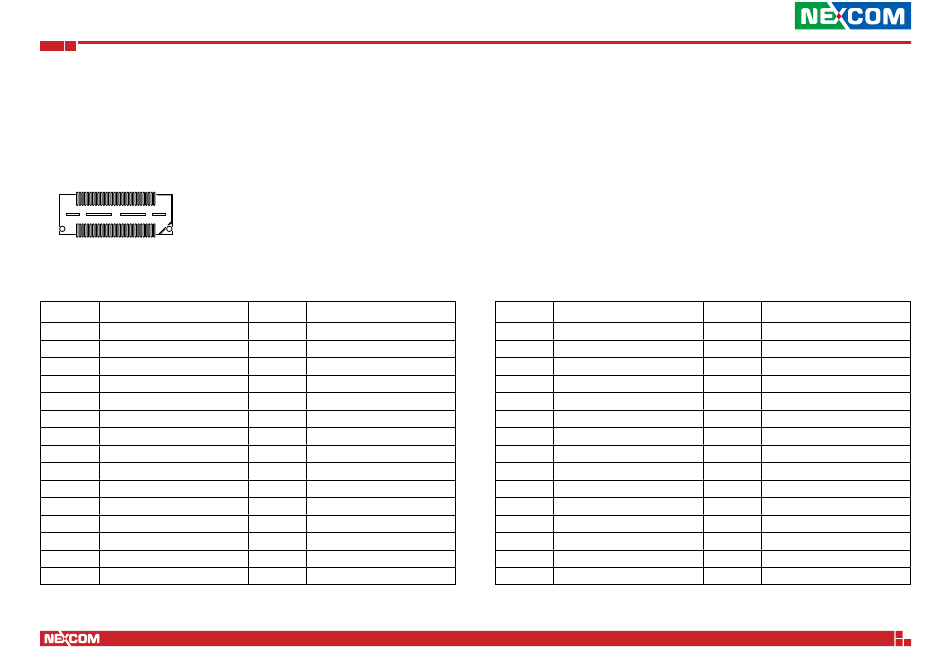

Intel XDP Connector (for Debug)

Connector size: BD TO BD 2x 30 = 60 pin 0.5mm
Connector location: CN8
59 1
60 7
Pin Definition
1 P1V05_A
3 JTAG_CPU_TCK
5 JTAG_SOC_TDI
7 RST_LTB_PLTRST_R_N
9 JTAG_SOC_TRST_N
11 DBP_LTB_SOC_PRDY_N
13 TRC_DFX_CLK0_R
15
DBP_LTB_PCH_DEBUG_CONSENT_R_N
17
FM_LTB_CPU_DEBUG_EN_N
19 TRC_PTI_DATA_R0
21 TRC_PTI_DATA_R1
23 TRC_PTI_DATA_R2
25 TRC_PTI_DATA_R3
27 TRC_PTI_DATA_R4
29 TRC_PTI_DATA_R5
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 JTAG_SOC_TMS
4 JTAG_SOC_TDO
6 RST_LTB_RSTBTN_R_N
8 PD_JTAG_LTB_TRST
10
DBP_DBG_LTB_SOC_PREQ_N
12 P1V05_A
14 GND
16 GND
18 N.C.
20 N.C.
22 N.C.
24 N.C.
26 N.C.
28 N.C.
30 N.C.
Pin Definition
31 TRC_PTI_DATA_R6
33 TRC_PTI_DATA_R7
35 TRC_PTI_DATA_R8
37 TRC_PTI_DATA_R9
39 TRC_PTI_DATA_R10
41 TRC_PTI_DATA_R11
43 TRC_PTI_DATA_R12
45 TRC_PTI_DATA_R13
47 TRC_PTI_DATA_R14
49 TRC_PTI_DATA_R15
51 JTAG_PCH_TCK
53
DBP_LTB_MBP1_R_N (N.C.)
55
DBP_LTB_MBP0_R_N (N.C.)
57 GND
59 TRC_DFX_CLK1_R
16
Pin Definition
32 N.C.
34 TP_LTB_PIN34
36
FM_BOOT_HALT_TIMESYNC2_R
38 DBP_LTB_SOC_FBRK_N
40 FM_LTB_PWRBTN_R_N
42
RST_CPLD_LTB_RSMRST_R_N
44
CLK_100M_MIPI60_DN_R
46
CLK_100M_MIPI60_DP_R
48 SMB_SMT0_LTB_CLK
50 SMB_SMT0_LTB_DATA
52 PU_P52_3V3
54 TP_J5K1_54
56 TP_J5K1_56
58 GND
60 PD_LTB_P60
