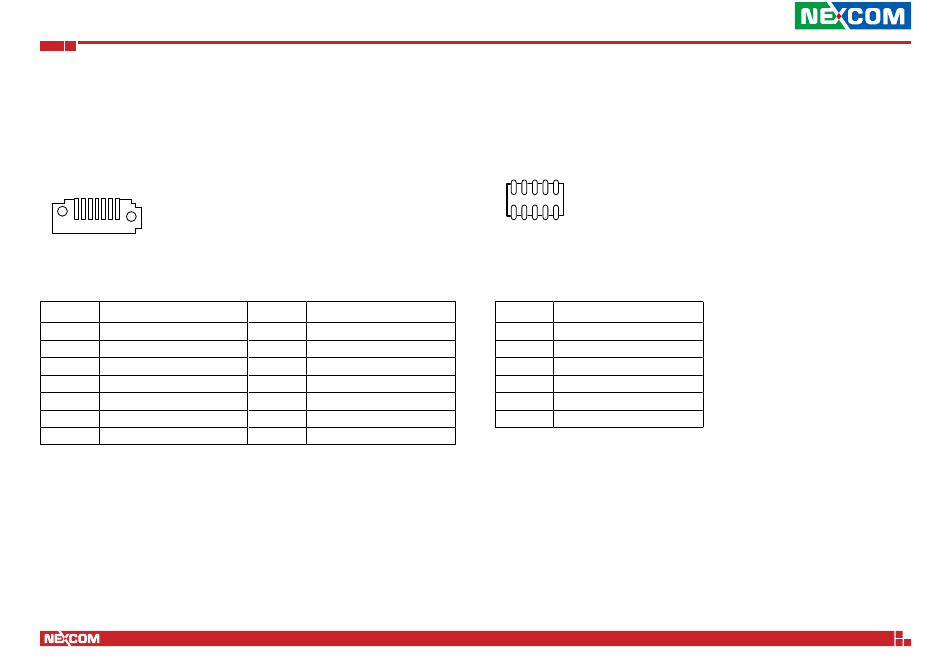

Chapter 2: Jumpers and Connectors
SATA Connector
Connector type: 1 x 7 = 7 pin
Connector location: CN3, CN4
7
1
CN3
Pin
Definition
1
GND
2
SATA1_TX_DP_C
3
SATA1_TX_DN_C
4
GND
5
SATA1_RX_DN_C
6
SATA1_RX_DP_C
7
GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
CN4
Pin
Definition
1
GND
2
SATA0_TX_DP_C
3
SATA0_TX_DN_C
4
GND
5
SATA0_RX_DN_C
6
SATA0_RX_DP_C
7
GND
CPLD GPIO Header
Connector type: 2 x 3 = 6 pin, 4.2mm
Connector location: CN5
1
9
2
10
Pin
Definition
1
P12V1
2
P12V1
3
P12V1
4
GND
5
GND
6
GND
12
FTA 1170 Series User Manual
