Installing Memory Modules

Before beginning the memory installation, please pay attention to the

following notices.

•

Before installing or removing internal components on the

motherboard, please ensure that the AC power cord is unplugged for

at least over 20 seconds.

•

The memory modules are foolproof design and can only be installed

in one direction. If you encounter difficulty, try reversing the module's

orientation and avoid using force to prevent damage.

•

It is recommended to install memory modules with the same brand,

speed, and capacity.

•

To install a single memory module, it is recommended to plug the

module into the A1 slot. For dual-channel installation, the sequence

should be A1 and B1, followed by A0 and B0. Refer to

the mechanical location and sequence of DIMM slots.

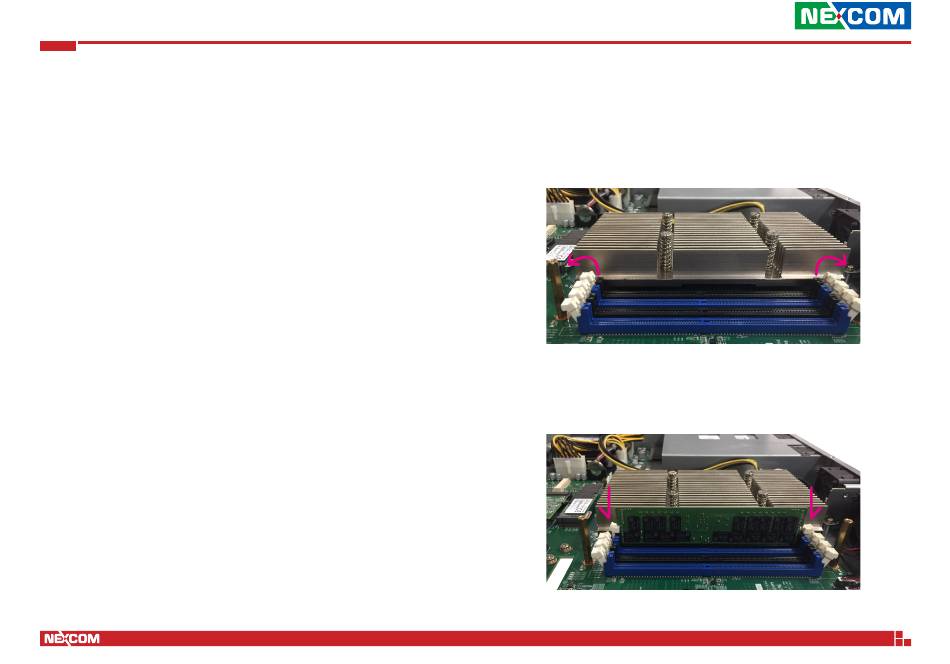

Locate the DIMM slots on the motherboard and release the locks.

Insert the modules into the sockets at a 90 degree angle. Apply firm,

Chapter 2

for

even pressure to both ends of the modules until they slip into the

sockets.
