Connector Pin Definitions

External I/O Interface

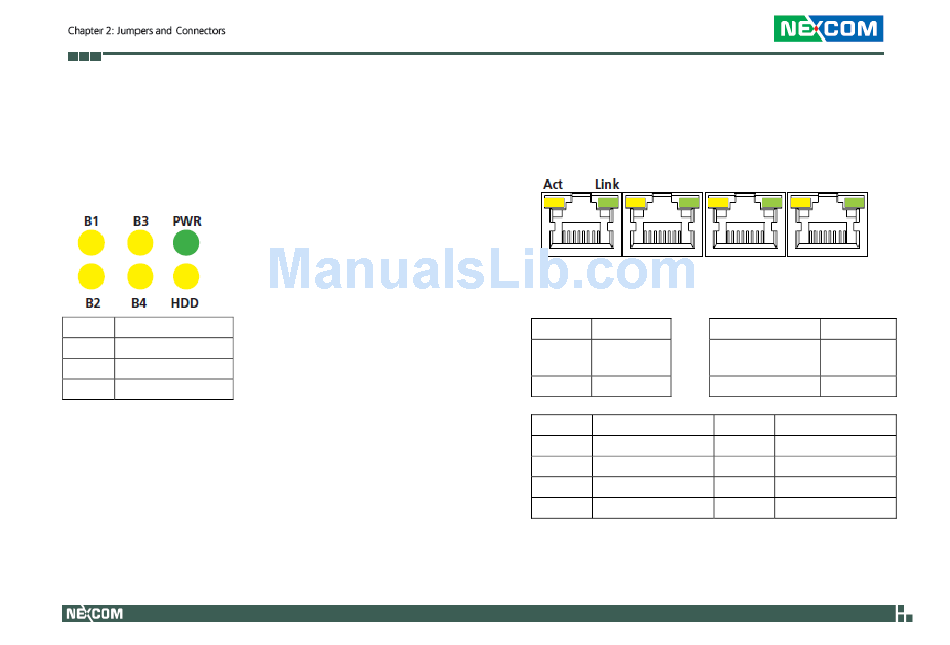

Status Indicators
Connector location: LED14, LED15 and LED16
Status LED Color
PWR Green
HDD Yellow
B1-B4 Yellow
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
Copper LAN Ports
Connector size: RJ45 port with LEDs Connector location:
CON1, CON2
Act Status
Yellow Data
Blinking Activity
Off No Activity
Pin Definition
1
2
3
4
10
Link
Green
Always Lighted
Off
Pin Definition
TX+0 5
TX-0 6
TX+1 7
TX+2 8
NSA 3130 User Manual
Status
1G and
10/100MB
No link
TX-2
TX-1
TX+3
TX-3
