Board To Board Connector (High Speed) - Nexcom FTA 1170 Series User Manual

Chapter 2: Jumpers and Connectors

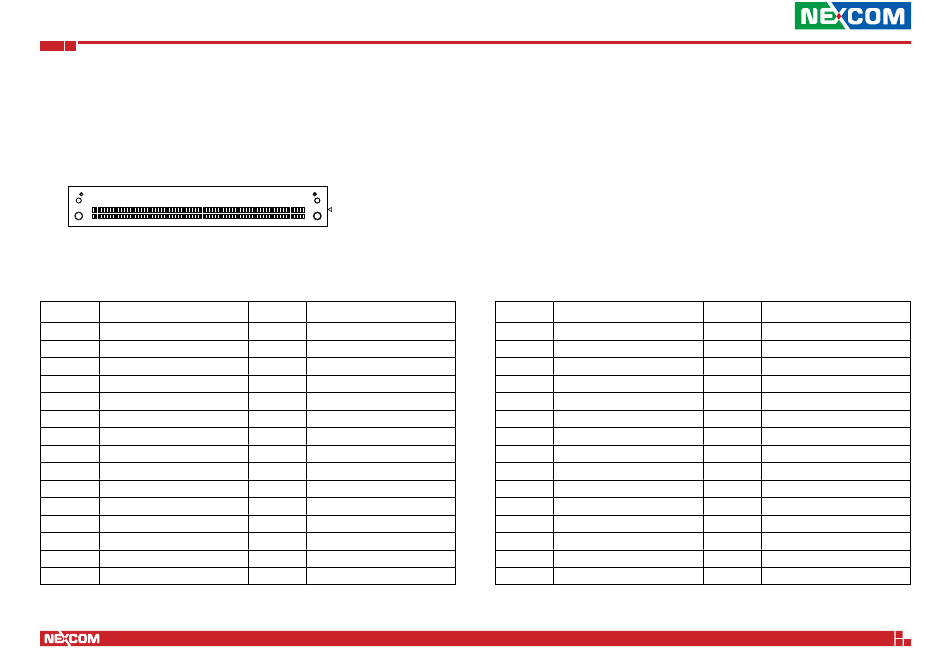

Board to Board Connector (High Speed)

Connector size: 150 Pin, 0.8mm
Connector location: CN11
149
150
Pin Definition
1 GND
2 GND
3 P12V
4 P3V3_MB
5 P12V
6 P3V3_MB
7 GND
8 GND
9 P12V
10 P12V_AUX
11 P12V
12 P12V_AUX
13 GND
14 GND
15 SMB_HOST_CLK
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
1
2
Pin Definition
16 USB_0_OC#
17 SMB_HOST_DATA
18 CLK_32K_SUSCLK_SOC
19 GND
20 GND
21 SW_INIT_DONE_R
22 SW_UART_RXD
23 TEMP_INT_N_R
24 SW_UART_TXD
25 GND
26 GND
27 3258_MR_N
28 PMD_L0_RX_P
29 RESETN1_R
30 PMD_L0_RX_N
Pin Definition
31 GND
32 GND
33 SYSRST_OUT_N_R
34 PMD_L1_RX_P
35 RST_M_RESET_N_R
36 PMD_L1_RX_N
37 GND
38 GND
39 PMD_L0_TX_P
40 PMD_L2_RX_P
41 PMD_L0_TX_N
42 PMD_L2_RX_N
43 GND
44 GND
45 PMD_L1_TX_P
39
Pin Definition
46 PMD_L3_RX_P
47 PMD_L1_TX_N
48 PMD_L3_RX_N
49 GND
50 GND
51 PMD_L2_TX_P
52 3258_L0_RX_P
53 PMD_L2_TX_N
54 3258_L0_RX_N
55 GND
56 GND
57 PMD_L3_TX_P
58 3258_L1_RX_P
59 PMD_L3_TX_N
60 3258_L1_RX_N
