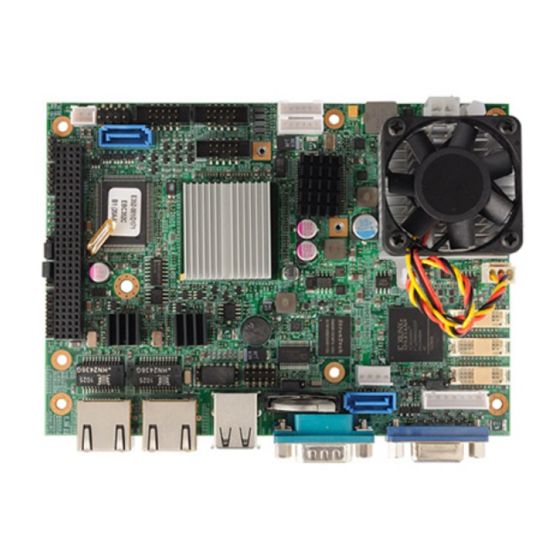

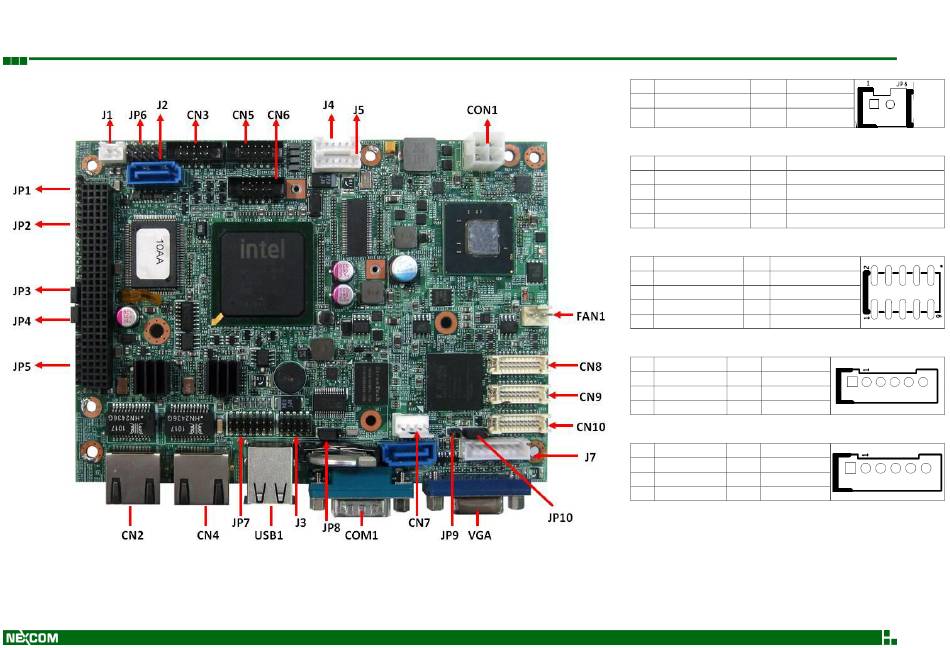

EBC352 Quick Reference Guide
Ver A. (P/N: 60177A0224X00)
SYSTEM FAN Connector(J1)
Pin Definition
Pin
Definition
1
GND
3
Sense
2
+12V
SATA0 connector (J2)
Pin Definition
Pin
Definition
1
GND
5
SATA_RXN0
2
SATA_TXP0
6
SATA_RXP0
3
SATA_TXN0
7
GND
4
GND
GPIO pin head(J3)
Pin Definition
Pin Definition
1
+5V
2
GND
3
GPIO24(Pin58) 4
GPIO20(Pin52)
5
GPIO25(Pin59) 6
GPIO21(Pin54)
7
GPIO26(Pin60) 8
GPIO22(Pin56)
USB 2/3 Connector(J4)
Pin Definition
Pin
Definition
1
+5V
4
Data 5-
2
Data 4-
5
Data 5+
3
Data 4+
6
GND
USB 2/3 Connector(J5)
Pin Definition
Pin
Definition
1
+5V
4
Data 3-
2
Data 2-
5
Data 3+
3
Data 2+
6
GND
