Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External Connectors

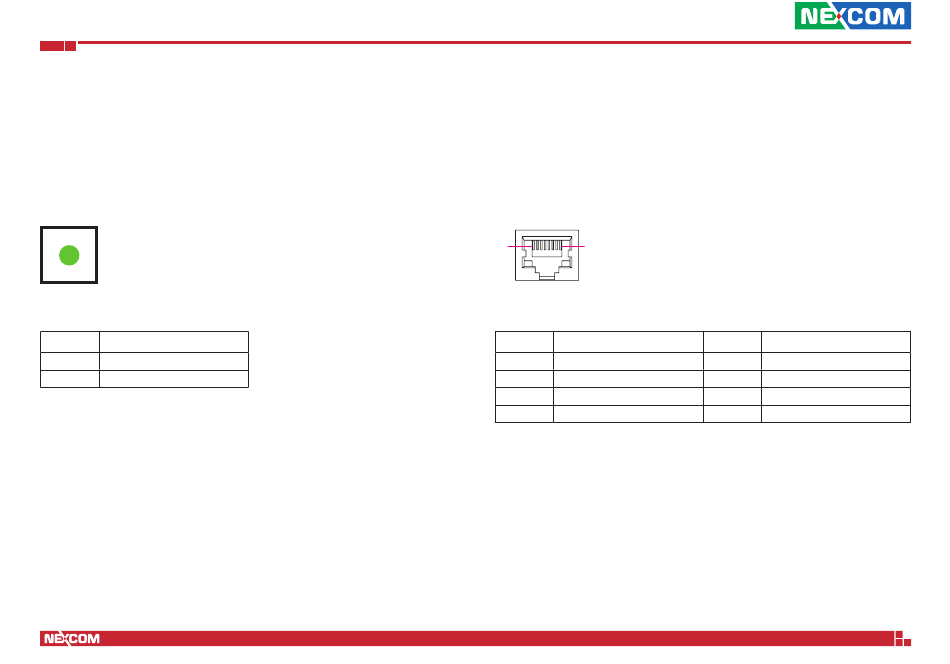

System Reset Button
Connector location: SW3
Pin
Definition
1
GND
2
RST_BTN_N
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
RJ45 Console Port
Connector location: LAN1
1
8
Pin
Definition
1
SP_RTS1_R
3
SP_TXD1_R
5
SP_DCD1_R
7
SP_DSR1_R
12
Pin
Definition
2
SP_DTR1_R
4
GND
6
SP_RXD1_R
8
SP_CTS1_CON
NSA 7136 User Manual
