Chapter 2: Jumpers and Connectors

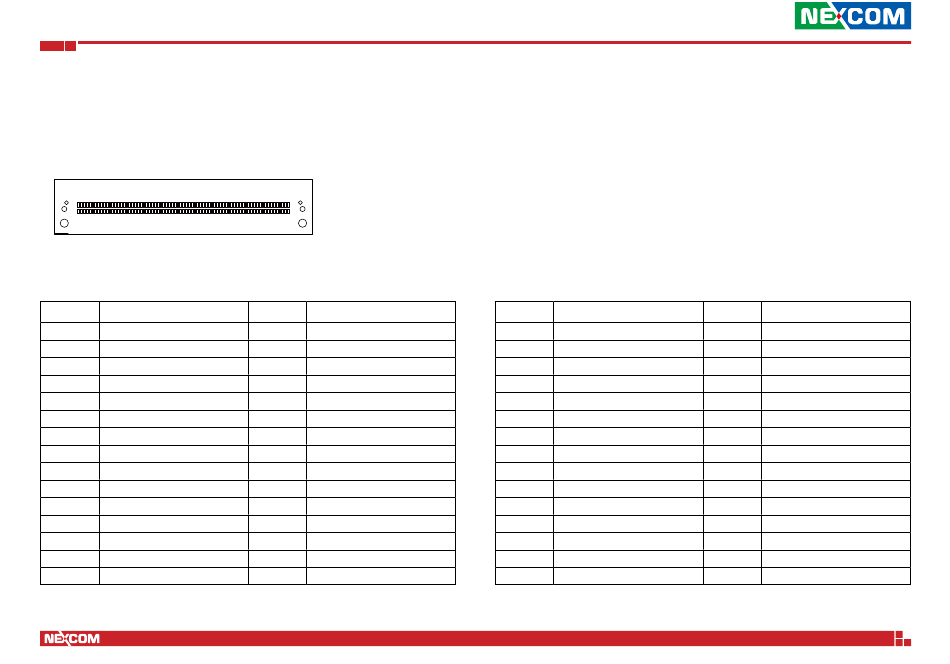

Board to Board Connector (High Speed)

Connector size: 150 Pin, 0.8mm
Connector location: J6
1
2
Pin Definition
1 GND
2 GND
3 P12V2
4 P3V3_S
5 P12V2
6 P3V3_S
7 GND
8 GND
9 P12V2
10 P12V_AUX
11 P12V2
12 P12V_AUX
13 GND
14 GND
15 SMB_HOST_CLK
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
149
150
Pin Definition
16 USB_0_OC#
17 SMB_HOST_DATA
18 CLK_32K_SUSCLK_SOC
19 GND
20 GND
21 SW_INIT_DONE
22 SW_UART_RXD
23 TEMP_INT_N
24 SW_UART_TXD
25 GND
26 GND
27 3258_MR_N
28 PMD_L0_RX_P
29 RESETN1
30 PMD_L0_RX_N
Pin Definition
31 GND
32 GND
33 SYSRST_OUT_N
34 PMD_L1_RX_P
35 RST_M_RESET_N
36 PMD_L1_RX_N
37 GND
38 GND
39 CR0_TX_DP0
40 PMD_L2_RX_P
41 CR0_TX_DN0
42 PMD_L2_RX_N
43 GND
44 GND
45 CR0_TX_DP1
28
Pin Definition
46 PMD_L3_RX_P
47 CR0_TX_DN1
48 PMD_L3_RX_N
49 GND
50 GND
51 CR0_TX_DP2
52 3258_L0_RX_P_C
53 CR0_TX_DN2
54 3258_L0_RX_N_C
55 GND
56 GND
57 CR0_TX_DP3
58 3258_L1_RX_P_C
59 CR0_TX_DN3
60 3258_L1_RX_N_C
