Chapter 1: Product Introduction

C 1: P
haPter roduCt

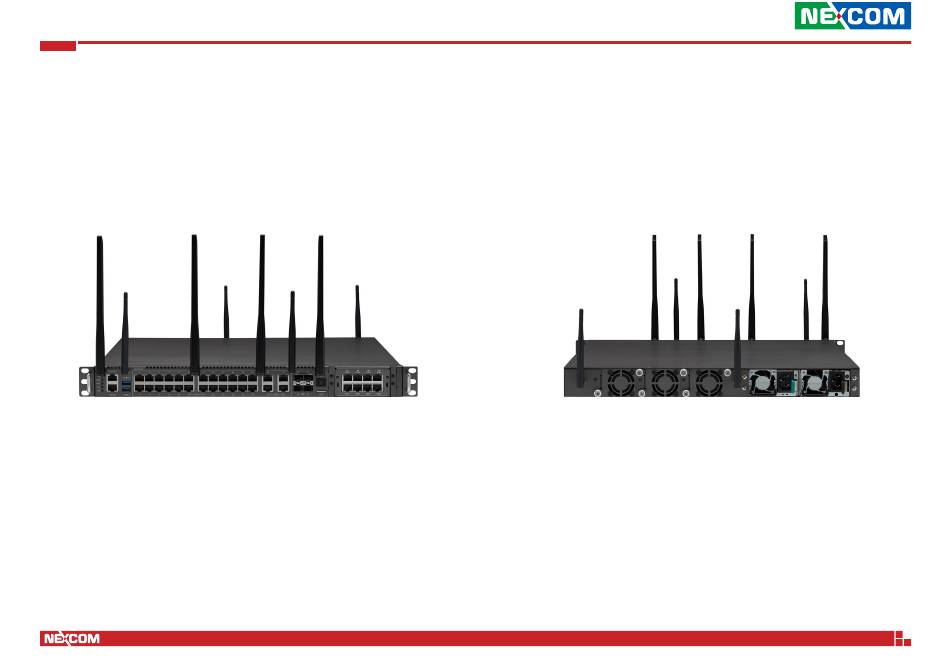

Overview

Key Features

▪ Intel Atom
P5300 processor series SoC, BGA type
®
▪ 4 x 288-pin DDR4 DIMM socket
▪ 1 x mini-PCIe slot for Wi-Fi 6 module
▪ 1 x M.2 3052 Key B for 5G FR1 module
▪ 1 x SO-DIMM DDR4 260-pin for BMC module
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
I
ntroduCtIon
1
▪ 24 x 2.5GbE RJ45 switch ports
▪ 4 x 10GbE RJ45 NIC ports
▪ 2 x 10GbE SFP+ switch ports
▪ 2 x 10GbE SFP+ NIC ports
▪ 1 x PCIe Gen3 x16 interface LAN module slot
