Chapter 2: Jumpers and Connectors

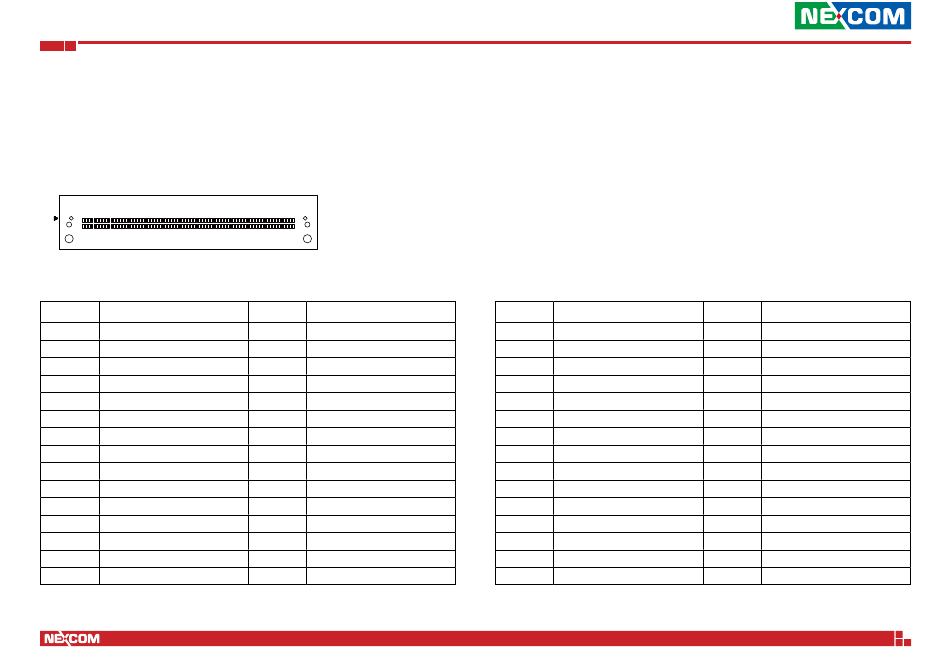

PCIe Gen3 x16 Riser Card Board to Board Connector

Connector size: 2 x 75 = 150 Pin, 0.8mm
Connector location: J5
1
2
Pin Definition
1 GND
2 GND
3 IRQ_PCIE_WAKE_N
4 SMB_PCIE_S1_CLK_R
5 PCIE_SLOT_RST_N
6 SMB_PCIE_S1_DATA_R
7 GND
8 GND
9 PE_SOC_RX_DP0
10 PE_SOC_TX_C_DN0
11 PE_SOC_RX_DN0
12 PE_SOC_TX_C_DP0
13 GND
14 GND
15 PE_SOC_RX_DP1
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
149
150
Pin Definition
16 PE_SOC_TX_C_DN1
17 PE_SOC_RX_DN1
18 PE_SOC_TX_C_DP1
19 GND
20 GND
21 PE_SOC_RX_DP2
22 PE_SOC_TX_C_DN2
23 PE_SOC_RX_DN2
24 PE_SOC_TX_C_DP2
25 GND
26 GND
27 PE_SOC_RX_DP3
28 PE_SOC_TX_C_DN3
29 PE_SOC_RX_DN3
30 PE_SOC_TX_C_DP3
Pin Definition
31 GND
32 GND
33 PE_SOC_RX_DP4
34 PE_SOC_TX_C_DN4
35 PE_SOC_RX_DN4
36 PE_SOC_TX_C_DP4
37 GND
38 GND
39 PE_SOC_RX_DP5
40 PE_SOC_TX_C_DP5
41 PE_SOC_RX_DN5
42 PE_SOC_TX_C_DN5
43 GND
44 GND
45 PE_SOC_RX_DP6
25
Pin Definition
46 PE_SOC_TX_C_DP6
47 PE_SOC_RX_DN6
48 PE_SOC_TX_C_DN6
49 GND
50 GND
51 PE_SOC_RX_DP7
52 PE_SOC_TX_C_DP7
53 PE_SOC_RX_DN7
54 PE_SOC_TX_C_DN7
55 GND
56 GND
57 PE_SOC_RX_DP8
58 PE_SOC_TX_C_DP8
59 PE_SOC_RX_DN8
60 PE_SOC_TX_C_DN8
