7. Software Control – Lightware Device Controller
7.5.2. DisplayPort Inputs
INFO:
This window appears only when the selected port is DisplayPort. See the
on which model has DP input.
Click on a port to display its properties; Signal status information and the most important parameters.
General Tab- General

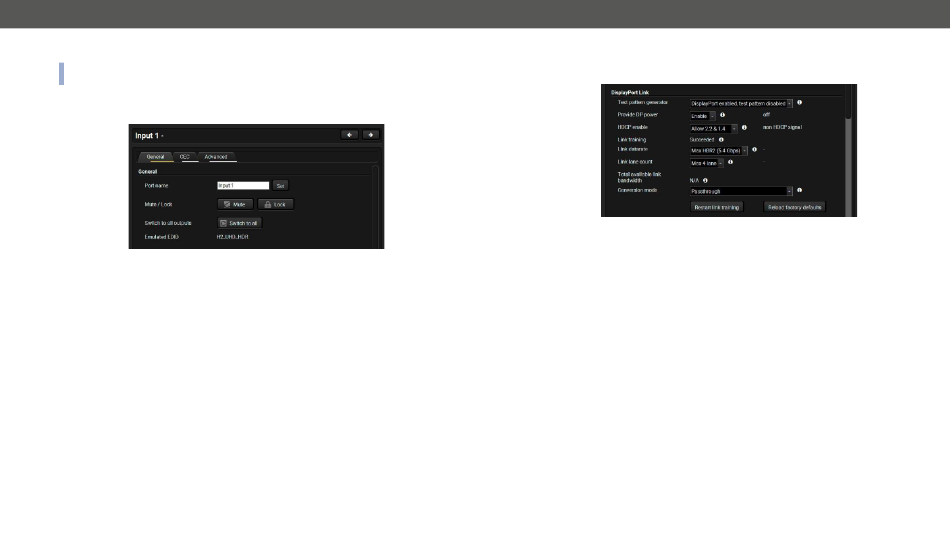

General tab in the input port properties window
Port name
The name of a port can be changed by typing the new name and clicking on the Set button. The following
characters are allowed when naming: Letters (A-Z) and (a-z), hyphen (-), underscore (_), numbers (0-9), and
dot (.). Max length: 63 characters.
Mute #mute #unmute
The incoming signal can be muted/unmuted by pressing the button. If the port is muted, button text is
Unmute. In this case no signal is transmitted from the input port.
Lock #lock #unlock
The port can be locked to the currently connected output ports by the button. If the port is locked, button text
is Unlock. In this case the mute state and the crosspoint state of this port cannot be changed.
Switch to all
The input port will be switched to all output ports.
Emulated EDID
The name of the currently emulated EDID (displays the Monitor Name in the EDID menu).
MX2 Standalone Matrix Switcher series – User's Manual
General Tab - Displayport Link
This section has a built-in help in the LDC. Click on the  icon to open the related info textbox in a pop-up
Model Comparison table
window.
Test pattern generator *
* Test pattern generator option appears only in -A or -Audio suffixed models, where there is an analog audio
port beside the DP port.
Provide DP Power
Applied firmware package: v1.9.0 | LDC software: v2.6.2b3
DisplayPort settings in the input port properties window
#testpattern #nosyncscreen
DisplayPort enabled, test pattern disabled: default value for DP video transmission.
▪
▪ DisplayPort disabled, test pattern enabled: This function makes it possible to route the analog audio
towards the output without any video transmission. Enabling testpattern will disable the DisplayPort
connector.
#testpattern #nosyncscreen
▪ Enable /Disable: DisplayPort input ports are capable of providing about 1.5 W (500 mA @ 3.3V) power
on the DP_PWR pin. As in DisplayPort copper cables this pin is not connected, the setting has no
effect when a PC or a media player is attached to the respective port. Typically, this feature can be
used for powering DisplayPort dongles, adapters and active optical cables that do not have external
power supplies. The matrix is also capable of detecting and displaying short circuit conditions where
the current exceeds the 500 mA limit. Adjusting these settings may help restarting or powering down
the connected device.
