2.3. Electrical connections

2.3.1. HDMI input and output ports

Pin
1
2
3
4
5
6
7
8
9
10
2.3.2. RS-232 port
The matrix contains a 3-pole Phoenix connector for local RS-232 serial connection.
Compatible plug type
Phoenix

2.3.3. Analog audio inputs and outputs

5-pole Phoenix connector is used for balanced analog audio input and output. Unbalanced
audio signals can be connected as well. For unbalanced input connect + and ground to the
source and connect – to the ground.
Compatible plug type
Phoenix
Section 2. Controls and connections
HDMI Type A receptacle
Signal
TMDS Data2+
TMDS Data2 Shield
TMDS Data2–
TMDS Data1+
TMDS Data1 Shield
TMDS Data1–
TMDS Data0+
TMDS Data0 Shield
TMDS Data0–
TMDS Clock+

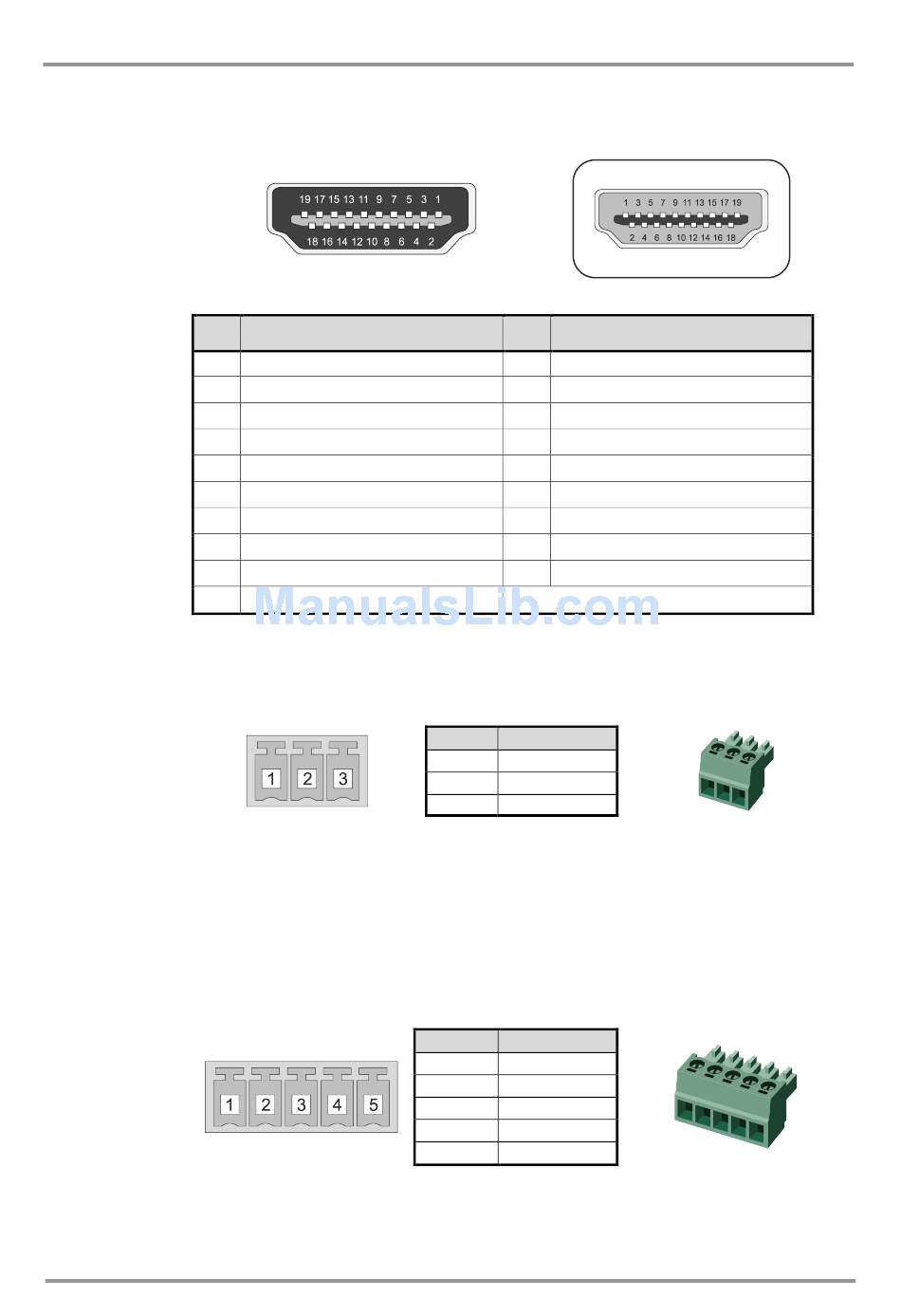

Table 2-1. HDMI connector pin assignments
Figure 2-1. RS-232 connector pin assignments
®
Combicon series (3.5mm pitch, 3-pole), type: MC 1.5/3-ST-3.5.
Figure 2-2. Analog audio input connector and plug pin assignments
®
Combicon series (3.5mm pitch, 5-pole), type: MC 1.5/5-ST-3.5.
Pin
11 TMDS Clock Shield
12
TMDS Clock–
13 CEC
14 Reserved
15
SCL
16 SDA
17 DDC/CEC Ground
18
+5 V Power (max 50 mA)
19 Hot Plug Detect
Pin no. Signal
1
Ground
2 TX data
3 RX data
Pin no. Signal
1 Left+
2 Left-
3 Ground
4 Right-
5 Right+
MMX6x2-HT
User's Manual
HDMI Type A Plug
Signal
