3.3.

Electrical connections

3.3.1. DVI inputs

UMX4x4-Pro provides standard 29 pole DVI-I connectors for inputs. This way, users can
plug in any DVI connector, but keep in mind that analog signals (such as VGA or RGBHV)
are processed only on the DVI inputs.
Always use high quality DVI cable for connecting sources and displays.
Pin
C1
C4
1 - These pins are connected only on the DVI inputs.

3.3.2. DVI outputs

29 pole DVI-I connectors for outputs have only digital pins internally connected. This way,
users can plug in any DVI connector, but keep in mind that analog signals (such as VGA
or RGBHV) are NOT available on the outputs.
Fiber Cable powering
DVI outputs are able to supply 500 mA current on DDC +5V output (pin 14 on output
connectors) which is sufficient to supply power to fiber optical DVI cables. Standard DVI
outputs usually supply only 55 mA current on +5V output, thus unable to directly power a
fiber optical cable.
Info The matrix switcher does not check if the connected sink (monitor, projector or other
equipment) supports Hotplug or EDID signals but outputs the selected signal immediately
after switch command.
Section 3. Controls and connections
Signal
1 TMDS Data2-
2 TMDS Data2+
3 TMDS Data2 Shield
4 nc
5 nc
6 DDC Clock
7 DDC Data
8
Analog Vertical Sync
1
Analog Red
Analog Horizontal Sync

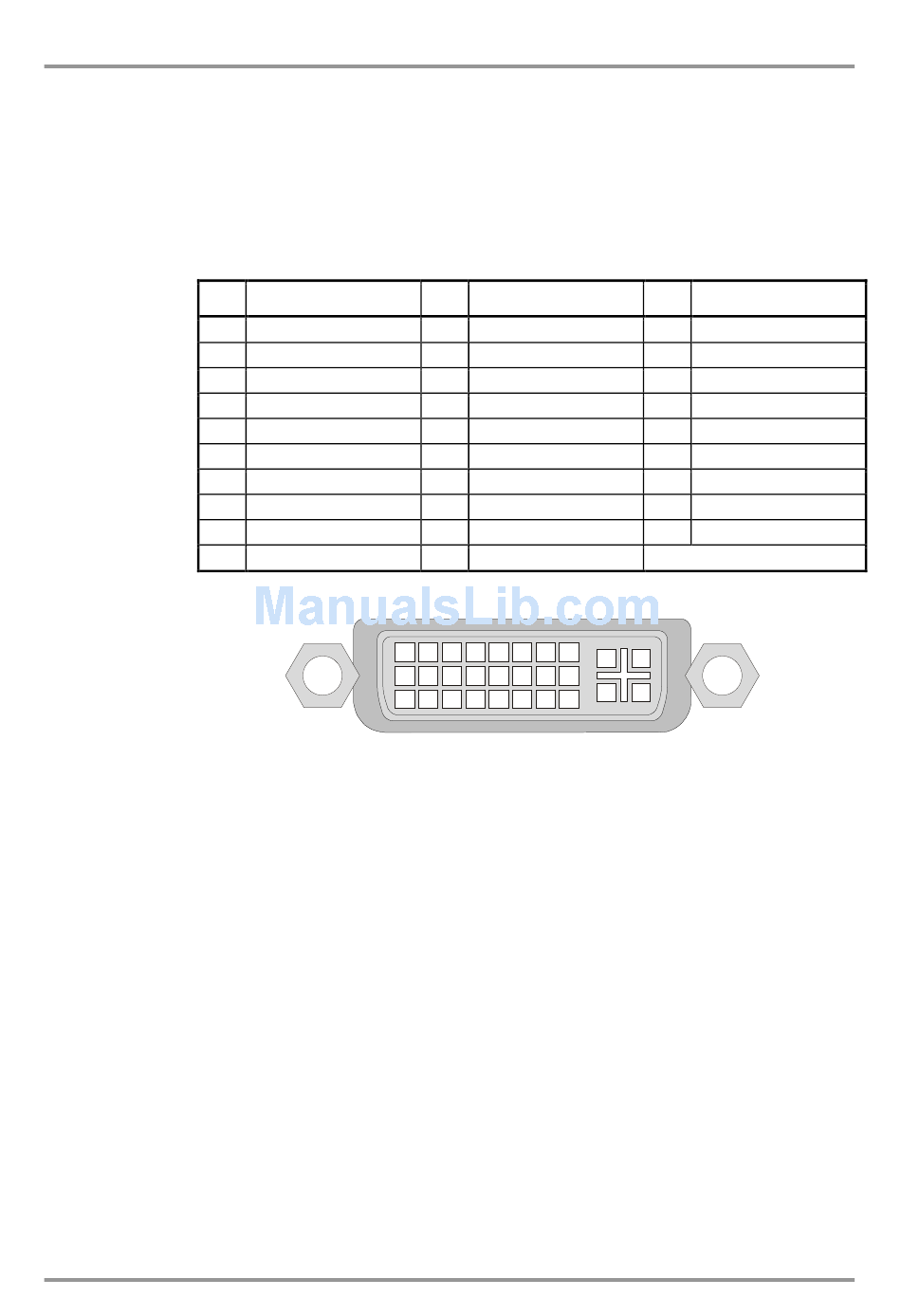

Table 3-1. DVI-I connector pin assignments
