Chapter 9 – Replacing the Transporter

Install the Side Access Panels

If you accessed the transporter from the side, use the following steps to reinstall the
access panels on the right side of the library.
1. Slide the top edge of the upper access panel into the slots on either side the chassis
so that the locking tabs on each side of the panel engage top edge of the chassis.
2. Align the screw holes on the top edge of the upper access panel (circled in
Figure 9-30) with the screw holes in the chassis. Use a #2 Phillips screwdriver to
install the screws securing the cover to the chassis.
Note:
The upper access panel can be identified by the lip on its lower
edge. This lip fits under the top edge of the lower access panel.

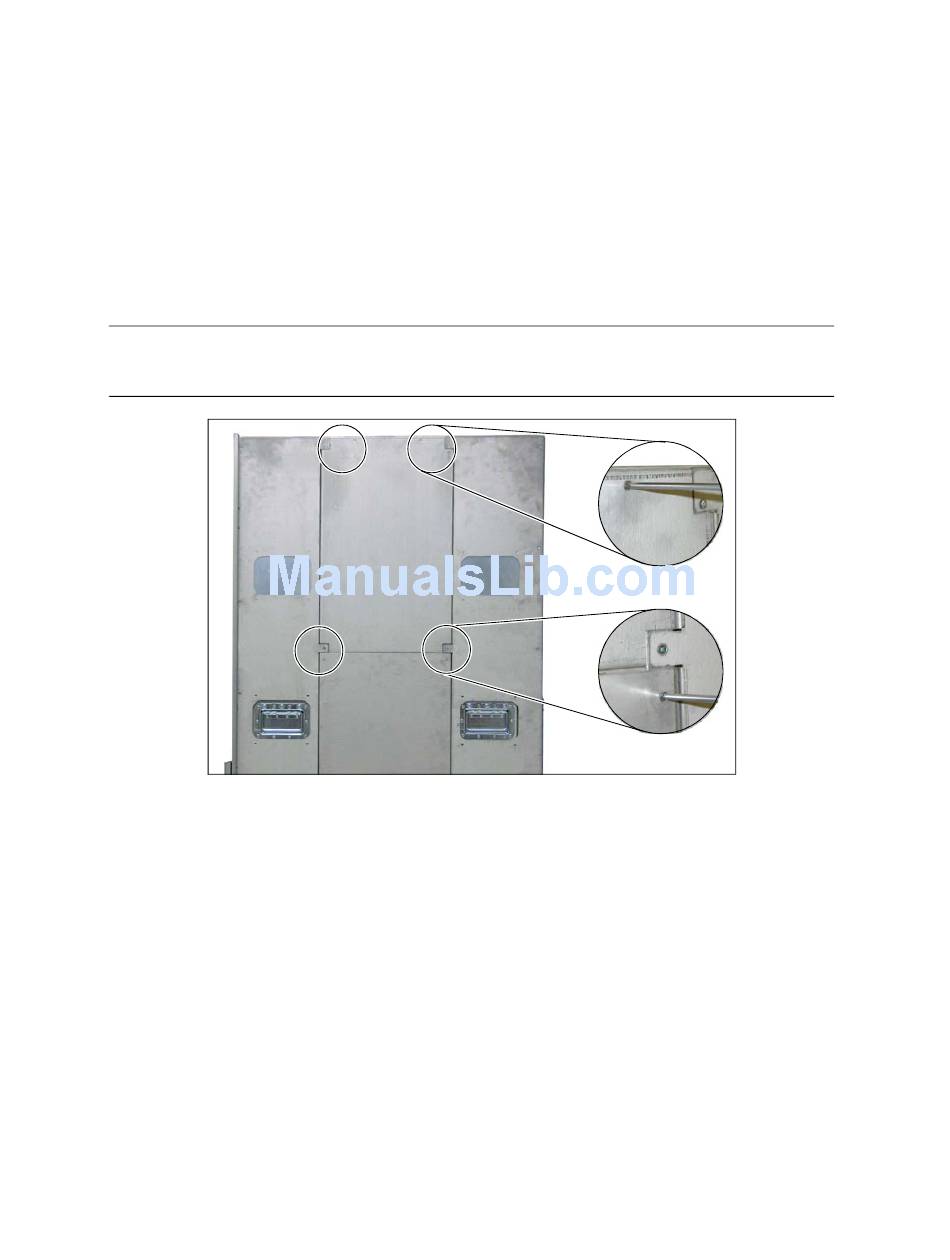

Figure 9-30 Removing the right side access panels.
3. Position the lower access panel with the notched edge down, aligning the holes on
the top edge of the panel (circled in Figure 9-30) with the corresponding holes in
the chassis. Use a #2 Phillips screwdriver to install the screws securing the cover to
the chassis.
4. Proceed to Power On the Library on page 97.
