Spectra Logic T-Series Spectra T200 User Manual page 75

3. Select All Motion Basic Tests. The Utilities screen refreshes to display information
about the selected diagnostic (Figure 9-2).

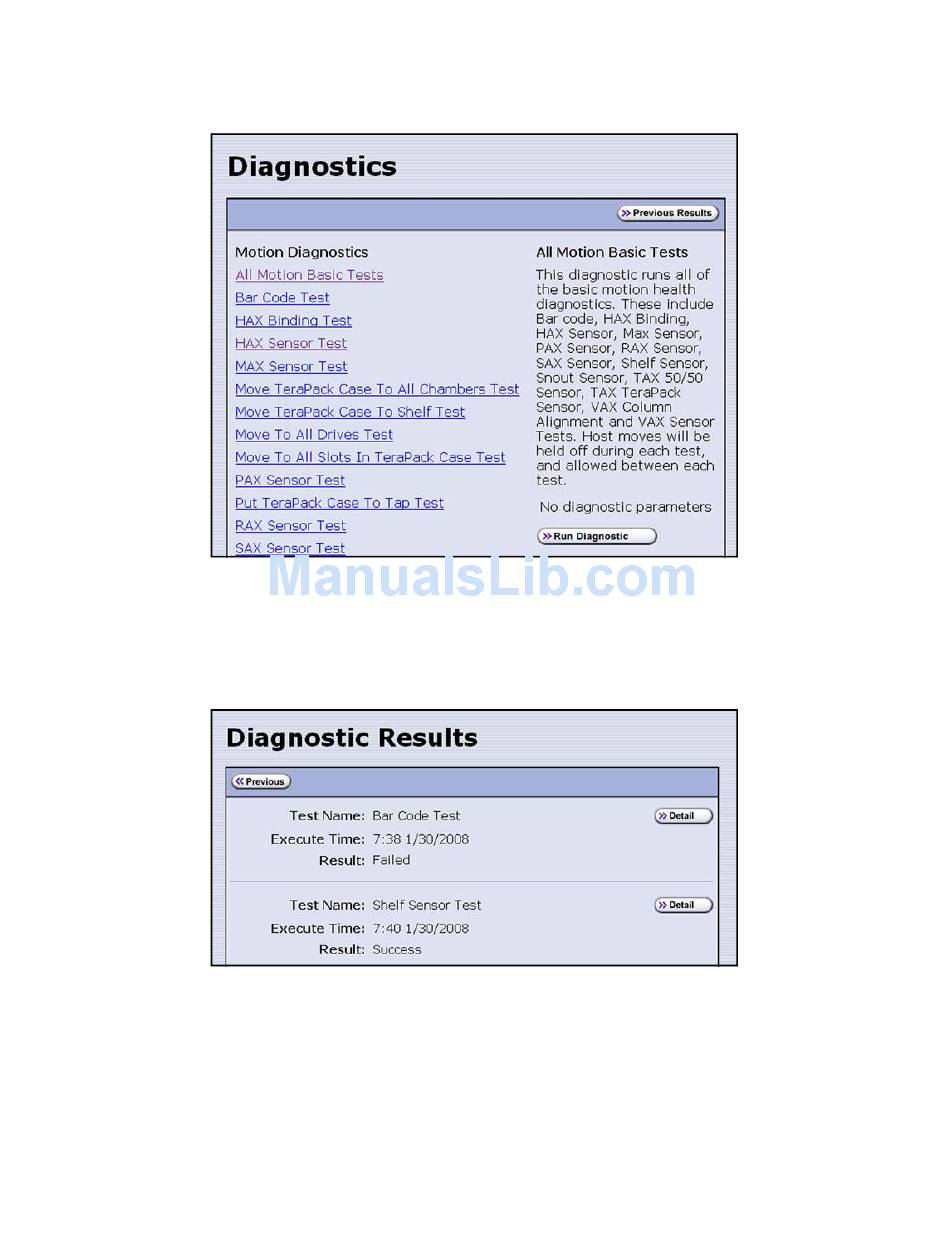

Figure 9-2 The All Motion Basic Tests Diagnostics screen.
4. Select Run Diagnostic. A series of progress screens displays as each test is run.
5. When all of the tests are complete, the Diagnostic Results screen displays showing
the result of each test.
Figure 9-3 The Diagnostic Results screen.
6. Scroll through the list of tests to determine if any of them failed. Select Details next
to any failed test to learn more information about the failed test.
If one or more tests failed, contact SpectraGuard Support for advice (see Contacting
Spectra Logic on page 4).
7. If SpectraGuard Support instructs you to replace the transporter, continue with the
steps in the following sections.
Test the Transporter
75
