Chapter 6 – Replacing a QIP or Bus Expansion Module
QIPs are identified in the library's BlueScale interface as DBAx/Y-QIPx, where:
DBAx is number of the drive bay assembly (DBA) containing the QIP.
Y is the QIP type (F for Fibre Channel or E for Gigabit Ethernet)
QIPx is number of the controller bay in the DBA. Each DBA contains one controller
bay, so x is always 1.
Figure 6-3 shows the relationship between the DBA number and the QIP locations
used in the identifier.

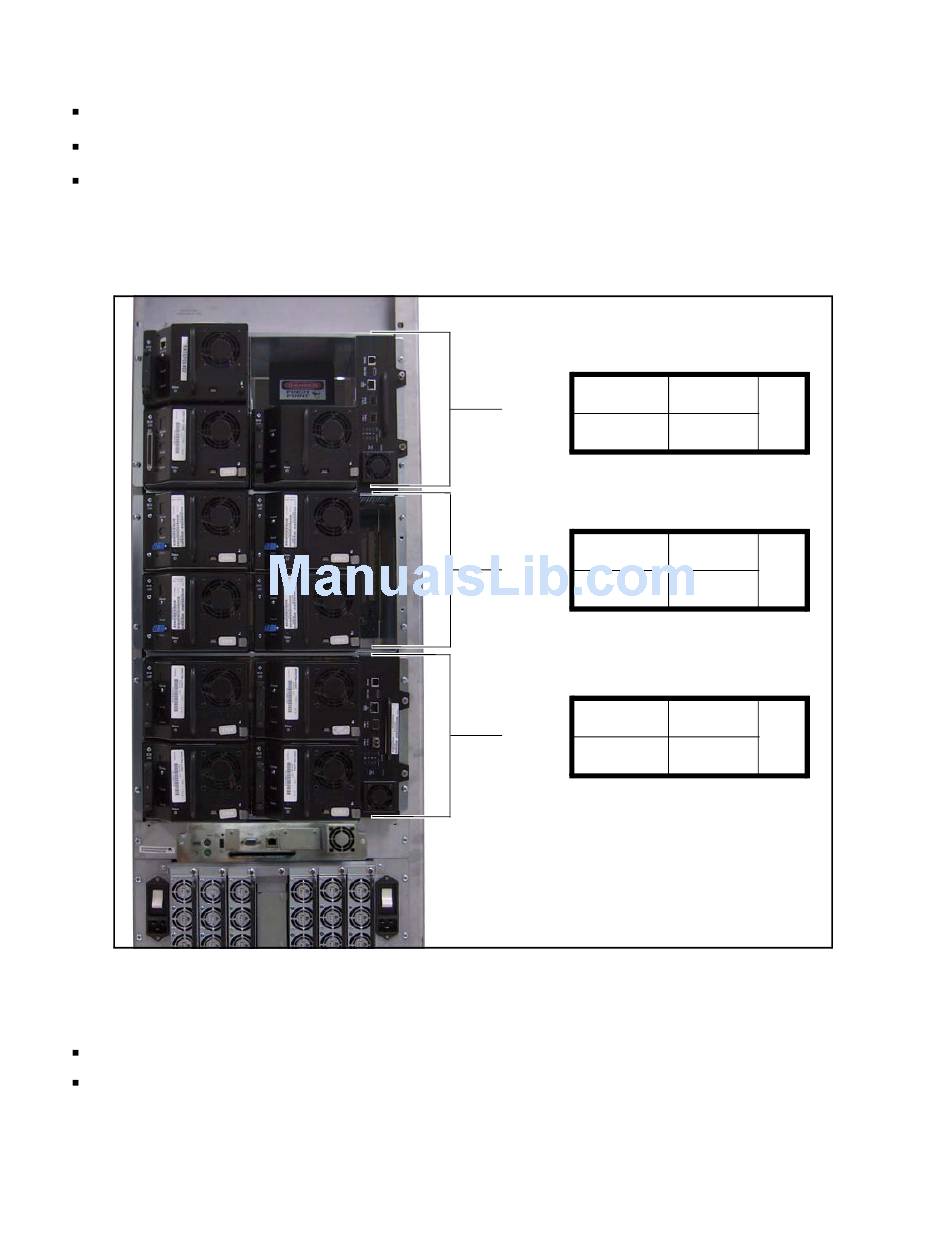

Figure 6-3 The relationship between QIP DBA locations and their identifiers.
Examples
If an F-QIP is installed in the controller bay of DBA1, its identifier is DBA1/F-QIP1.
If an E-QIP is installed in the controller bay of DBA2, its identifier is DBA2/E-QIP1.
54
Drive 3 Drive 4
DBA 3
Drive 1 Drive 2
Drive 3 Drive 4
DBA 2
Drive 1 Drive 2
Drive 3
DBA 1
Drive 1
QIP
3
QIP
2
Drive 4
QIP
1
Drive 2
