2. Check the power supply status LEDs, shown in Figure 7-2 and described in the
following table, to determine which module is malfunctioning.
Note:
You can also check the library's General Status and System
Messages screens for information about the status of the power
supply modules.
LED State
DC power status Solid green
Off (unlit)
AC power status Solid green
Off (unlit)

Replacing the Power Supply Module

1. Use a #2 Phillips screwdriver to loosen, but not remove, the captive screw in the
upper right corner of the power supply module (Figure 7-3). As you loosen the
screw, the module disengages from the connector inside the power supply bay and
moves outward.
2. Pull outward on the handle to slide the power supply module out of the power
supply bay (Figure 7-3).
Meaning
The DC power is operating normally.
The power supply is off or malfunctioning.
The AC power is on and operating normally.
The AC power is off or the power supply is malfunctioning.
Captive
screw

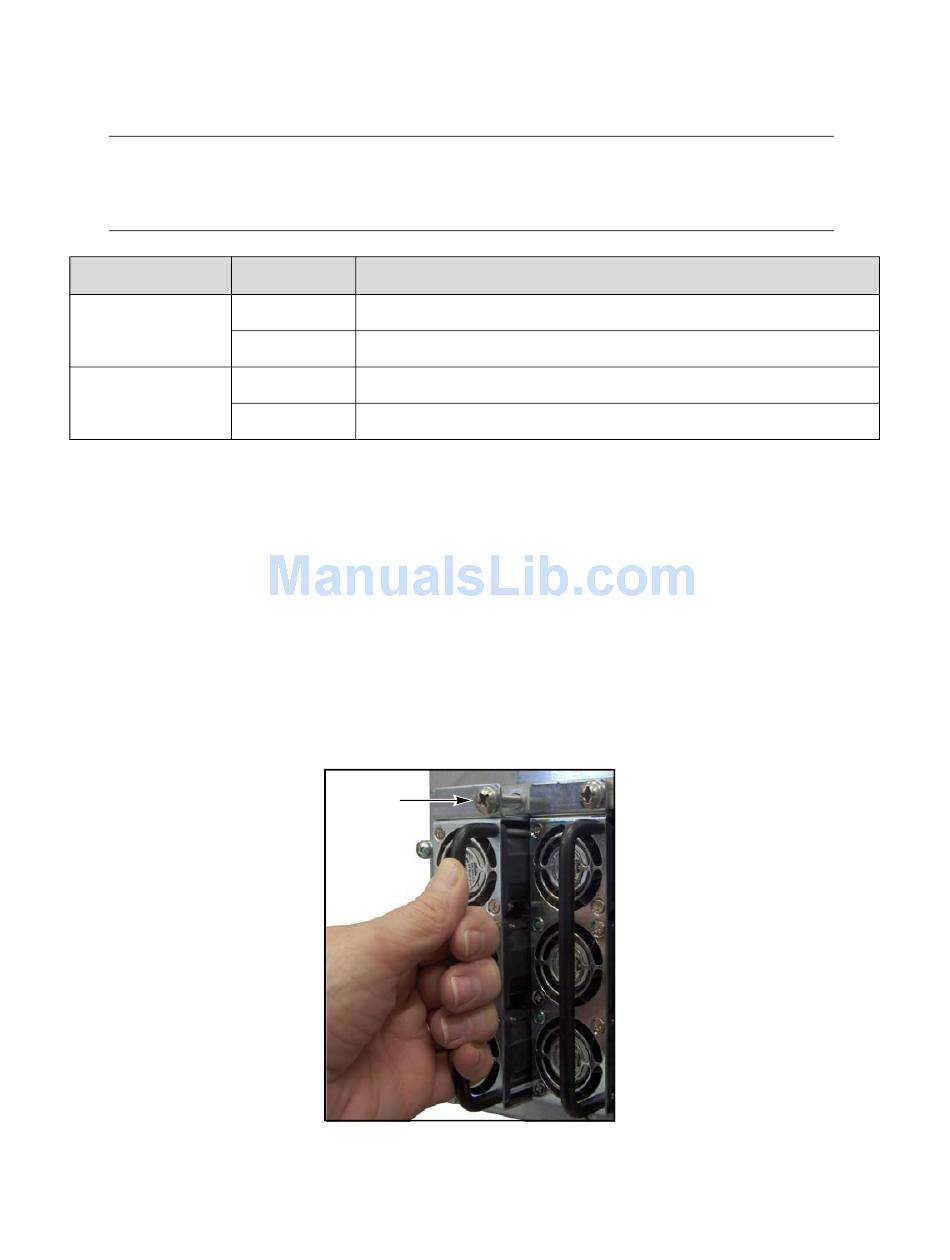

Figure 7-3 Removing and
replacing a power supply module.
