Operation, cont'd

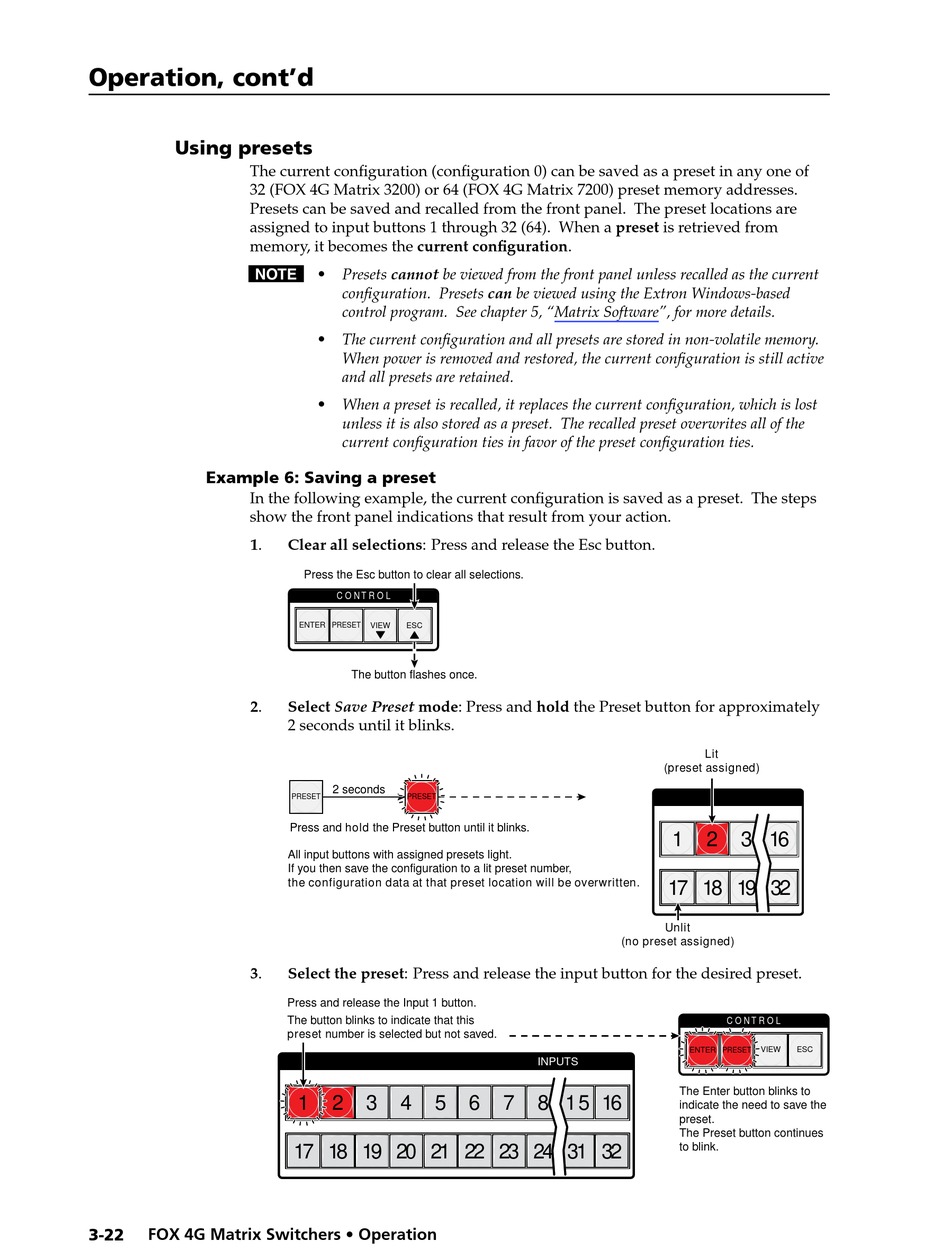

Using presets
The current configuration (configuration 0) can be saved as a preset in any one of
32 (FOX 4G Matrix 3200) or 64 (FOX 4G Matrix 7200) preset memory addresses.
Presets can be saved and recalled from the front panel. The preset locations are
assigned to input buttons 1 through 32 (64). When a preset is retrieved from
memory, it becomes the current configuration.
N • Presets cannot be viewed from the front panel unless recalled as the current
Example 6: Saving a preset
In the following example, the current configuration is saved as a preset. The steps
show the front panel indications that result from your action.
1.
2.
3.
3-22 FOX 4G Matrix Switchers • Operation
configuration. Presets can be viewed using the Extron Windows-based
control program. See chapter 5, "Matrix Software", for more details.
• The current configuration and all presets are stored in non-volatile memory.
When power is removed and restored, the current configuration is still active
and all presets are retained.
• When a preset is recalled, it replaces the current configuration, which is lost
unless it is also stored as a preset. The recalled preset overwrites all of the
current configuration ties in favor of the preset configuration ties.
Clear all selections: Press and release the Esc button.
Press the Esc button to clear all selections.
C O N T R O L
ENTER PRESET VIEW ESC
The button flashes once.
Select Save Preset mode: Press and hold the Preset button for approximately
2 seconds until it blinks.
2 seconds
PRESET PRESET
Press and hold the Preset button until it blinks.
All input buttons with assigned presets light.
If you then save the configuration to a lit preset number,
the configuration data at that preset location will be overwritten.
Select the preset: Press and release the input button for the desired preset.
Press and release the Input 1 button.
The button blinks to indicate that this
preset number is selected but not saved.
1 2 3 4 5
17 18 19 20 21 22 23 24 31 32
(no preset assigned)
INPUTS
6 7 8 15 16
Lit
(preset assigned)
1 2 3 16
17 18 19 32
Unlit
C O N T R O L
ENTER PRESET VIEW ESC
The Enter button blinks to
indicate the need to save the
preset.
The Preset button continues
to blink.
