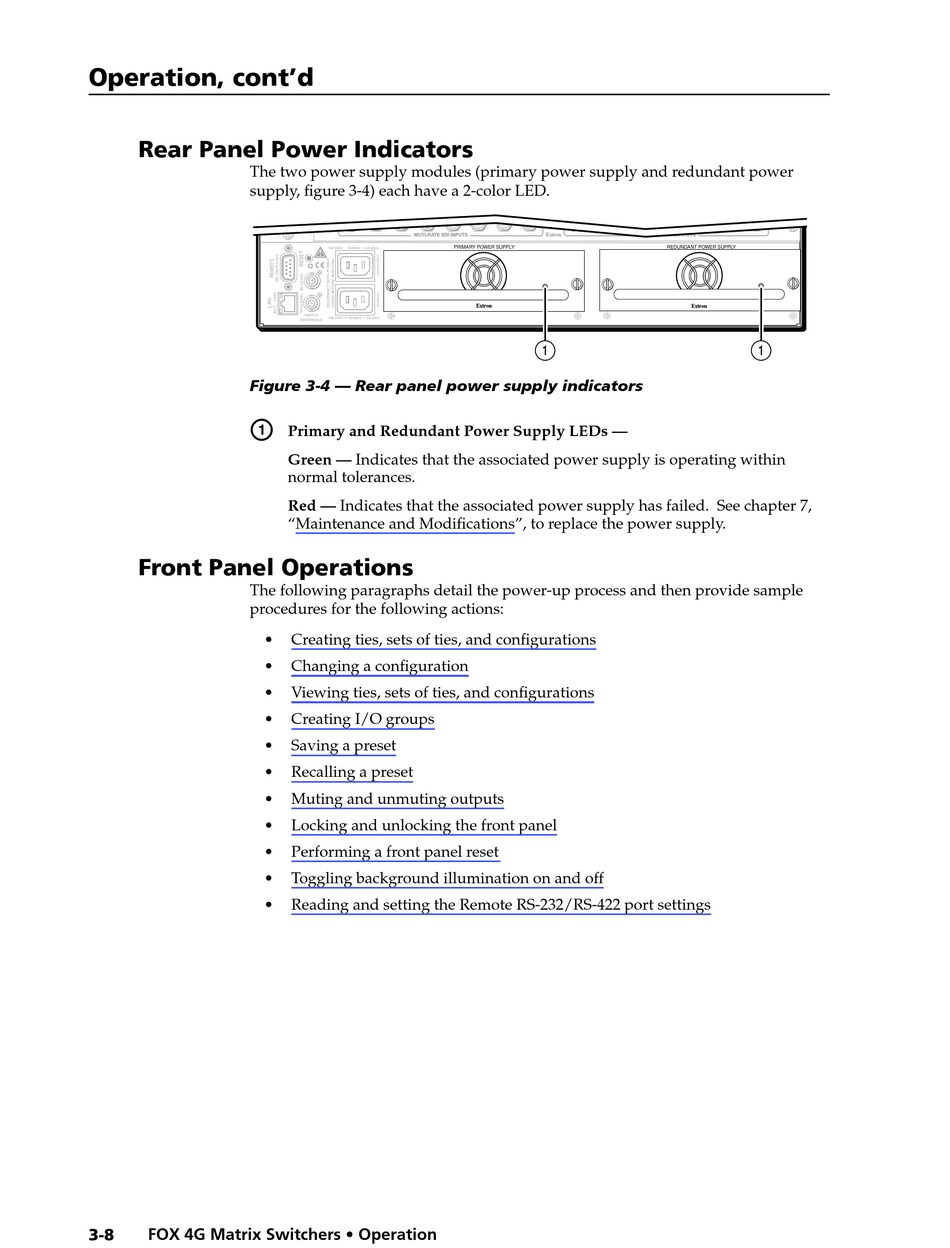

Operation, cont'd

Rear Panel Power Indicators

The two power supply modules (primary power supply and redundant power
supply, figure 3-4) each have a 2-color LED.
Figure 3-4 — Rear panel power supply indicators
a

Front Panel Operations

The following paragraphs detail the power-up process and then provide sample
procedures for the following actions:
3-8
FOX 4G Matrix Switchers • Operation
MUTI-RATE SDI INPUTS
PRIMARY POWER SUPPLY
100-240V
50/60Hz 1.2A MAX.
SWITCH
100-240V
50/60Hz 1.2A MAX.
REFERENCE
Primary and Redundant Power Supply LEDs —
Green — Indicates that the associated power supply is operating within
normal tolerances.
Red — Indicates that the associated power supply has failed. See chapter 7,
"Maintenance and Modifications", to replace the power supply.
Creating ties, sets of ties, and configurations
Changing a configuration
Viewing ties, sets of ties, and configurations
Creating I/O groups
Saving a preset
Recalling a preset
Muting and unmuting outputs
Locking and unlocking the front panel
Performing a front panel reset
Toggling background illumination on and off
Reading and setting the Remote RS-232/RS-422 port settings
MUTI-RATE SDI OUTPUTS
REDUNDANT POWER SUPPLY
1
1
