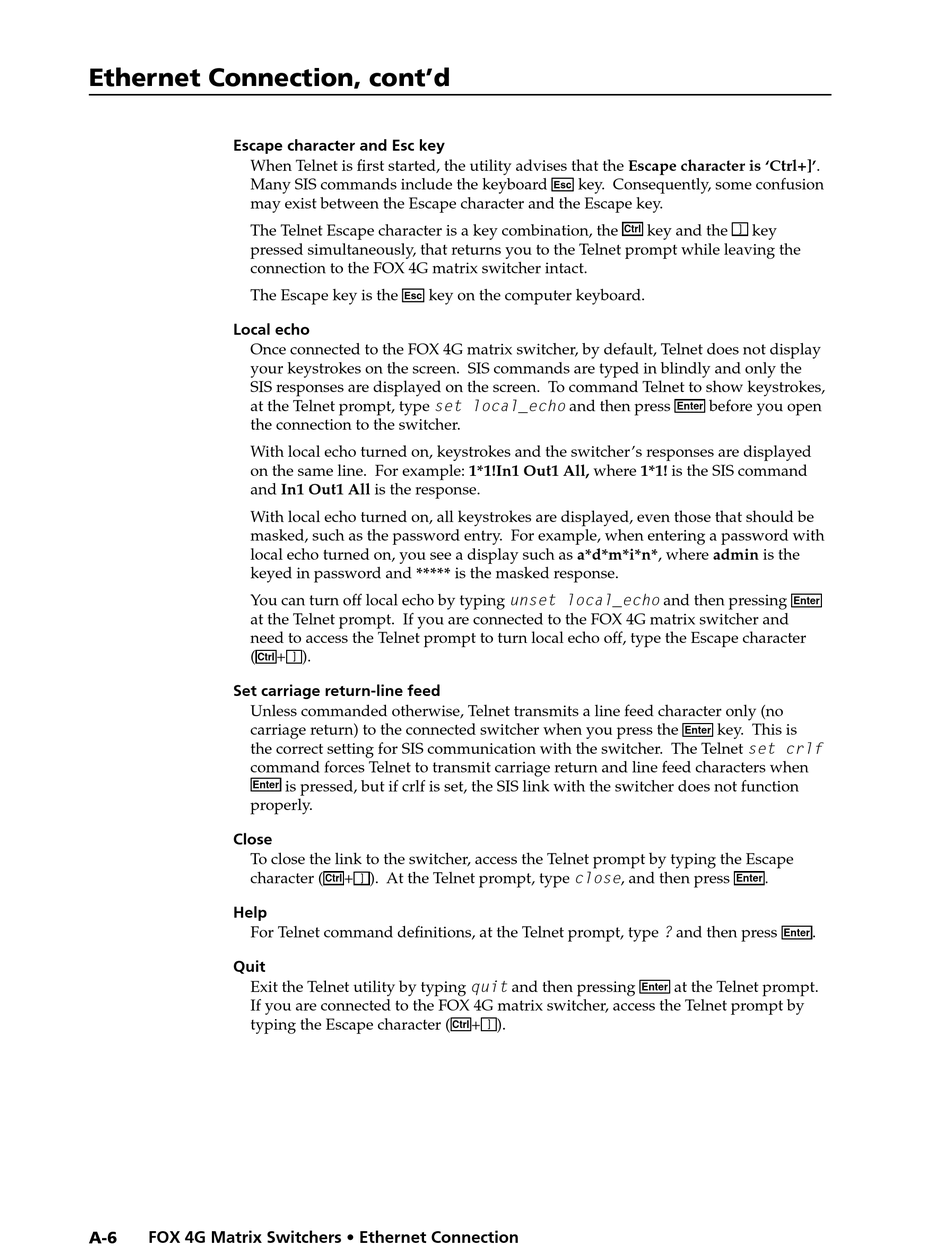

Ethernet Connection, cont'd
Escape character and Esc key
When Telnet is first started, the utility advises that the Escape character is 'Ctrl+]'.
Many SIS commands include the keyboard
may exist between the Escape character and the Escape key.
The Telnet Escape character is a key combination, the
pressed simultaneously, that returns you to the Telnet prompt while leaving the
connection to the FOX 4G matrix switcher intact.
The Escape key is the
Local echo
Once connected to the FOX 4G matrix switcher, by default, Telnet does not display
your keystrokes on the screen. SIS commands are typed in blindly and only the
SIS responses are displayed on the screen. To command Telnet to show keystrokes,
at the Telnet prompt, type set local_echo and then press
the connection to the switcher.
With local echo turned on, keystrokes and the switcher's responses are displayed
on the same line. For example: 1*1!In1 Out1 All, where 1*1! is the SIS command
and In1 Out1 All is the response.
With local echo turned on, all keystrokes are displayed, even those that should be
masked, such as the password entry. For example, when entering a password with
local echo turned on, you see a display such as a*d*m*i*n*, where admin is the
keyed in password and ***** is the masked response.
You can turn off local echo by typing unset local_echo and then pressing
at the Telnet prompt. If you are connected to the FOX 4G matrix switcher and
need to access the Telnet prompt to turn local echo off, type the Escape character
(
Ctrl
Set carriage return-line feed
Unless commanded otherwise, Telnet transmits a line feed character only (no
carriage return) to the connected switcher when you press the
the correct setting for SIS communication with the switcher. The Telnet set crlf
command forces Telnet to transmit carriage return and line feed characters when
Enter
properly.

Close

To close the link to the switcher, access the Telnet prompt by typing the Escape
character (

Help

For Telnet command definitions, at the Telnet prompt, type ? and then press

Quit

Exit the Telnet utility by typing quit and then pressing
If you are connected to the FOX 4G matrix switcher, access the Telnet prompt by
typing the Escape character (
A-6 FOX 4G Matrix Switchers • Ethernet Connection
E
key on the computer keyboard.
+ ).
]
is pressed, but if crlf is set, the SIS link with the switcher does not function
+ ). At the Telnet prompt, type close, and then press
]
Ctrl
Ctrl
E
key. Consequently, some confusion
key and the
Ctrl
Enter
+ ).
]
key
]
before you open
Enter
Enter
key. This is
Enter
.
Enter
.
Enter
at the Telnet prompt.
