Operation, cont'd

User Presets menu

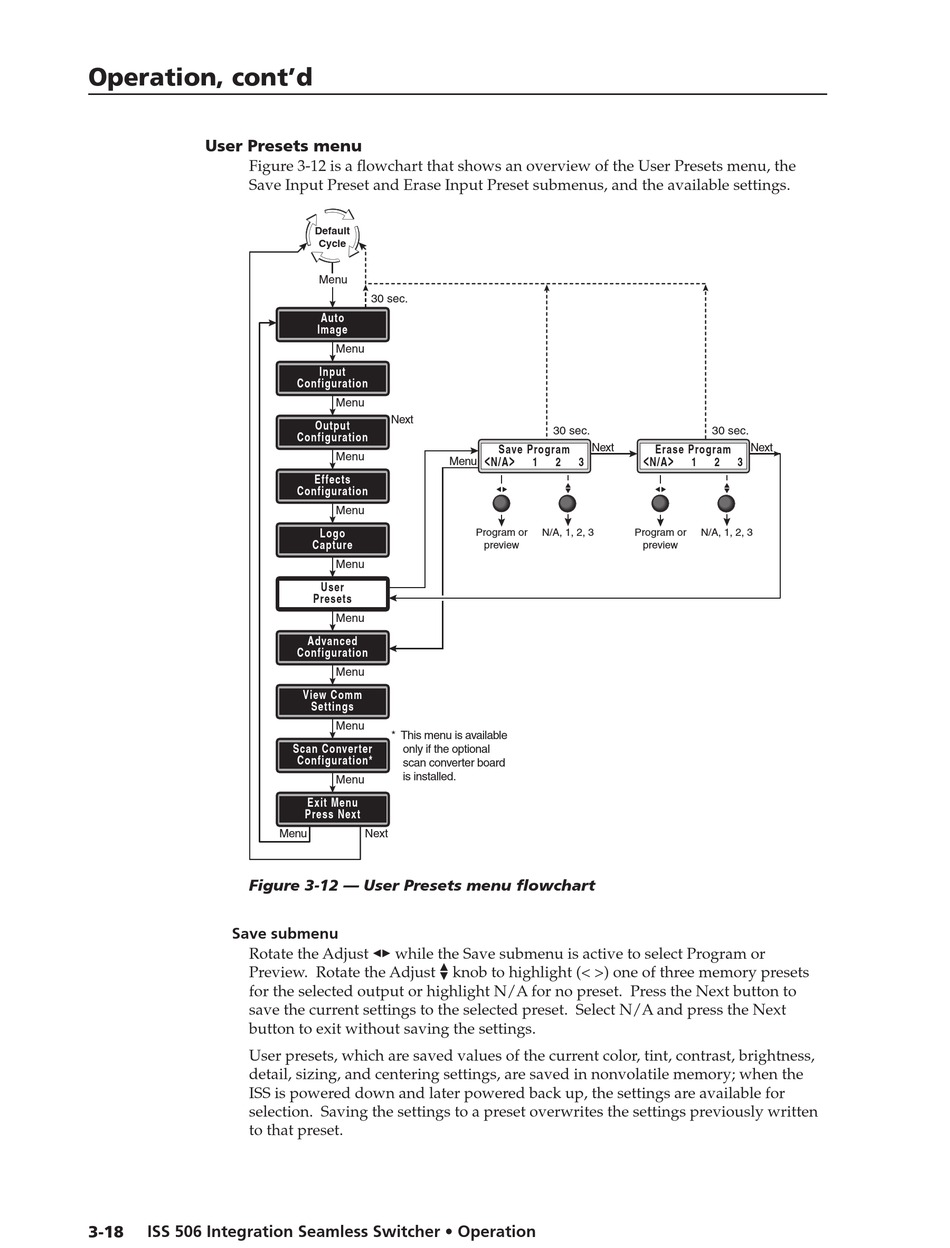

Figure 3-12 is a flowchart that shows an overview of the User Presets menu, the
Save Input Preset and Erase Input Preset submenus, and the available settings.
Figure 3-12 — User Presets menu flowchart

Save submenu

Rotate the Adjust [ while the Save submenu is active to select Program or
Preview. Rotate the Adjust { knob to highlight (< >) one of three memory presets
for the selected output or highlight N/A for no preset. Press the Next button to
save the current settings to the selected preset. Select N/A and press the Next
button to exit without saving the settings.
User presets, which are saved values of the current color, tint, contrast, brightness,
detail, sizing, and centering settings, are saved in nonvolatile memory; when the
ISS is powered down and later powered back up, the settings are available for
selection. Saving the settings to a preset overwrites the settings previously written
to that preset.
