Remote port
c
Remote RS-232/RS-422 connector — Connect a host device, such as a
computer, touch panel control, or RS-232 capable PDA to the switcher via this
9-pin D connector for serial RS-232/RS-422 control (figure 2-5).
6
9

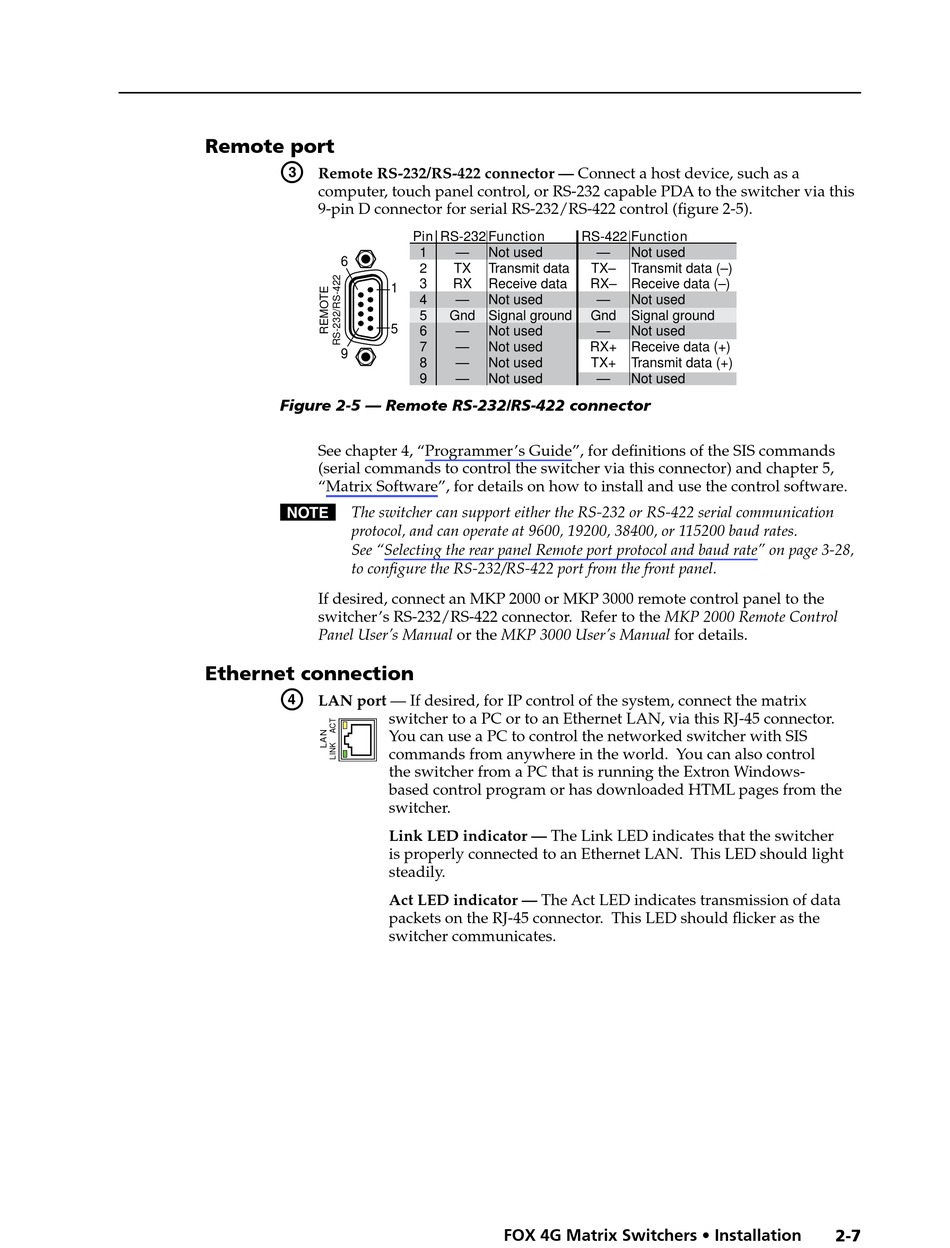

Figure 2-5 — Remote RS-232/RS-422 connector
See chapter 4, "Programmer's Guide", for definitions of the SIS commands
(serial commands to control the switcher via this connector) and chapter 5,
"Matrix Software", for details on how to install and use the control software.
N The switcher can support either the RS-232 or RS-422 serial communication
protocol, and can operate at 9600, 19200, 38400, or 115200 baud rates.
See "Selecting the rear panel Remote port protocol and baud rate" on page 3-28,
to configure the RS-232/RS-422 port from the front panel.
If desired, connect an MKP 2000 or MKP 3000 remote control panel to the
switcher's RS-232/RS-422 connector. Refer to the MKP 2000 Remote Control
Panel User's Manual or the MKP 3000 User's Manual for details.
Ethernet connection
d
LAN port — If desired, for IP control of the system, connect the matrix
Pin RS-232 Function
1 — Not used
2 TX Transmit data
3 RX Receive data
1
4 — Not used
5 Gnd Signal ground
5
6 — Not used
7 — Not used
8 — Not used
9 — Not used
switcher to a PC or to an Ethernet LAN, via this RJ-45 connector.
You can use a PC to control the networked switcher with SIS
commands from anywhere in the world. You can also control
the switcher from a PC that is running the Extron Windows-
based control program or has downloaded HTML pages from the
switcher.
Link LED indicator — The Link LED indicates that the switcher
is properly connected to an Ethernet LAN. This LED should light
steadily.
Act LED indicator — The Act LED indicates transmission of data
packets on the RJ-45 connector. This LED should flicker as the
switcher communicates.
