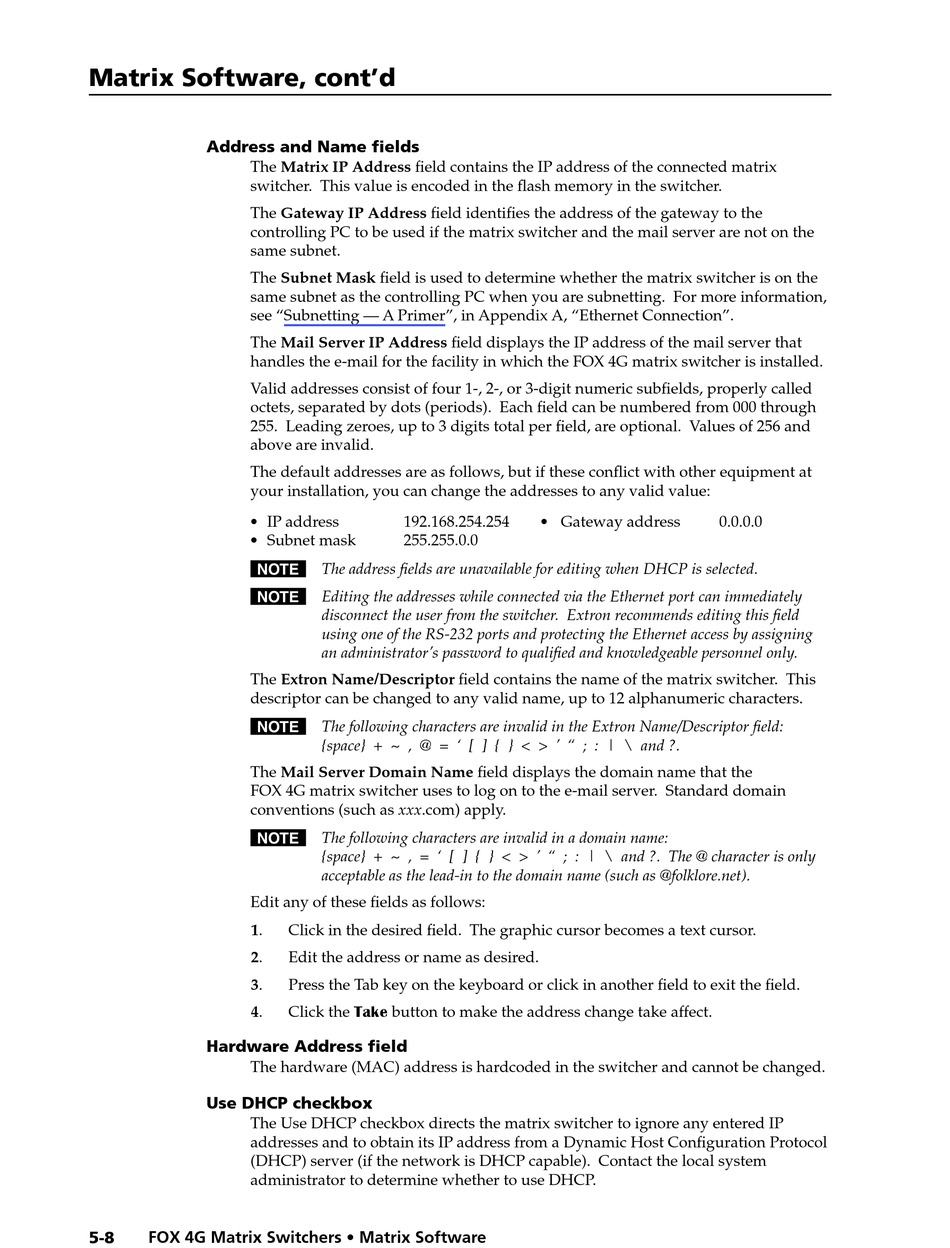

Address and Name fields
The Matrix IP Address field contains the IP address of the connected matrix
switcher. This value is encoded in the flash memory in the switcher.
The Gateway IP Address field identifies the address of the gateway to the
controlling PC to be used if the matrix switcher and the mail server are not on the
same subnet.
The Subnet Mask field is used to determine whether the matrix switcher is on the
same subnet as the controlling PC when you are subnetting. For more information,
see "Subnetting — A Primer", in Appendix A, "Ethernet Connection".
The Mail Server IP Address field displays the IP address of the mail server that
handles the e-mail for the facility in which the FOX 4G matrix switcher is installed.
Valid addresses consist of four 1-, 2-, or 3-digit numeric subfields, properly called
octets, separated by dots (periods). Each field can be numbered from 000 through
255. Leading zeroes, up to 3 digits total per field, are optional. Values of 256 and
above are invalid.
The default addresses are as follows, but if these conflict with other equipment at
your installation, you can change the addresses to any valid value:
• IP address
• Subnet mask
N The address fields are unavailable for editing when DHCP is selected.
N Editing the addresses while connected via the Ethernet port can immediately
The Extron Name/Descriptor field contains the name of the matrix switcher. This
descriptor can be changed to any valid name, up to 12 alphanumeric characters.
N The following characters are invalid in the Extron Name/Descriptor field:
The Mail Server Domain Name field displays the domain name that the
FOX 4G matrix switcher uses to log on to the e-mail server. Standard domain
conventions (such as xxx.com) apply.
N The following characters are invalid in a domain name:
Edit any of these fields as follows:
1.
2.
3.
4.
Hardware Address field
The hardware (MAC) address is hardcoded in the switcher and cannot be changed.

Use DHCP checkbox

The Use DHCP checkbox directs the matrix switcher to ignore any entered IP
addresses and to obtain its IP address from a Dynamic Host Configuration Protocol
(DHCP) server (if the network is DHCP capable). Contact the local system
administrator to determine whether to use DHCP.
5-8 FOX 4G Matrix Switchers • Matrix Software
192.168.254.254
255.255.0.0
disconnect the user from the switcher. Extron recommends editing this field
using one of the RS-232 ports and protecting the Ethernet access by assigning
an administrator's password to qualified and knowledgeable personnel only.
{space} + ~ , @ = ' [ ] { } < > ' " ; : | \ and ?.
{space} + ~ , = ' [ ] { } < > ' " ; : | \ and ?. The @ character is only
acceptable as the lead-in to the domain name (such as @folklore.net).
Click in the desired field. The graphic cursor becomes a text cursor.
Edit the address or name as desired.
Press the Tab key on the keyboard or click in another field to exit the field.
Click the Take button to make the address change take affect.
• Gateway address 0.0.0.0
