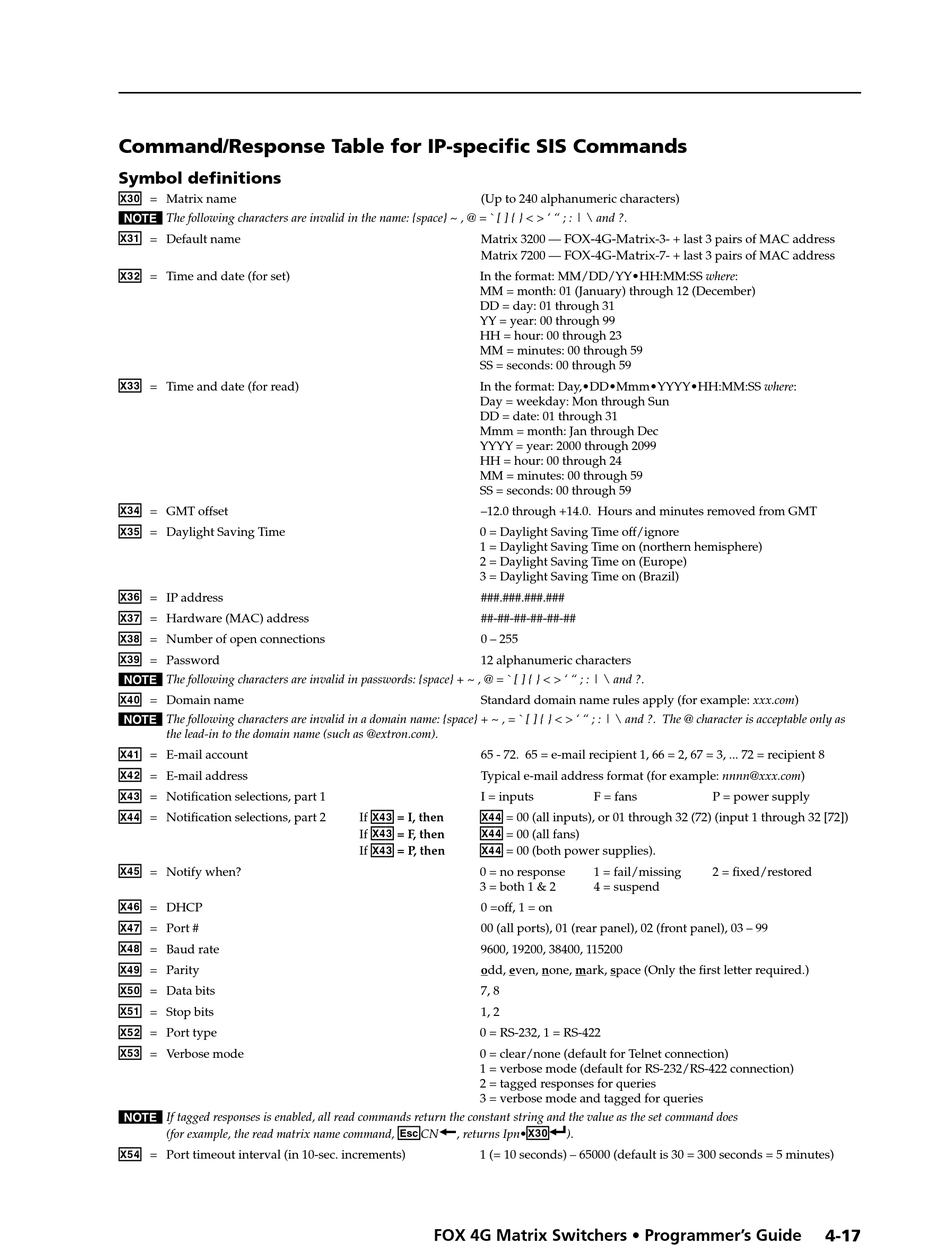

Command/Response Table for IP-specific SIS Commands

Symbol definitions

X3)
= Matrix name
N The following characters are invalid in the name: {space} ~ , @ = ` [ ] { } < > ' " ; : | \ and ?.
X3!
= Default name
X3@
= Time and date (for set)
X3#
= Time and date (for read)
X3$
= GMT offset
X3%
= Daylight Saving Time
X3^
= IP address
X3&
= Hardware (MAC) address
X3*
= Number of open connections
X3(
= Password
N The following characters are invalid in passwords: {space} + ~ , @ = ` [ ] { } < > ' " ; : | \ and ?.
X4)
= Domain name
N The following characters are invalid in a domain name: {space} + ~ , = ` [ ] { } < > ' " ; : | \ and ?. The @ character is acceptable only as
the lead-in to the domain name (such as @extron.com).
X4!
= E-mail account
X4@
= E-mail address
X4#
= Notification selections, part 1
X4$
= Notification selections, part 2
X4%
= Notify when?
X4^
= DHCP
X4&
= Port #
X4*
= Baud rate
X4(
= Parity
X5)
= Data bits
X5!
= Stop bits
X5@
= Port type
X5#
= Verbose mode
N If tagged responses is enabled, all read commands return the constant string and the value as the set command does
(for example, the read matrix name command,
X5$
= Port timeout interval (in 10-sec. increments)
(Up to 240 alphanumeric characters)
Matrix 3200 —
Matrix 7200 —
In the format: MM/DD/YY•HH:MM:SS where:
MM = month: 01 (January) through 12 (December)
DD = day: 01 through 31
YY = year: 00 through 99
HH = hour: 00 through 23
MM = minutes: 00 through 59
SS = seconds: 00 through 59
In the format: Day,•DD•Mmm•YYYY•HH:MM:SS where:
Day = weekday: Mon through Sun
DD = date: 01 through 31
Mmm = month: Jan through Dec
YYYY = year: 2000 through 2099
HH = hour: 00 through 24
MM = minutes: 00 through 59
SS = seconds: 00 through 59
–12.0 through +14.0. Hours and minutes removed from GMT
0 = Daylight Saving Time off/ignore
1 = Daylight Saving Time on (northern hemisphere)
2 = Daylight Saving Time on (Europe)
3 = Daylight Saving Time on (Brazil)
###.###.###.###
##-##-##-##-##-##
0 – 255
12 alphanumeric characters
Standard domain name rules apply (for example: xxx.com)
65 - 72. 65 = e-mail recipient 1, 66 = 2, 67 = 3, ... 72 = recipient 8
Typical e-mail address format (for example: nnnn@xxx.com)
I = inputs
X4# X4$
If = I, then = 00 (all inputs), or 01 through 32 (72) (input 1 through 32 [72])
X4# X4$
If = F, then = 00 (all fans)
X4# X4$
If = P, then = 00 (both power supplies).
0 = no response
3 = both 1 & 2
0 =off, 1 = on
00 (all ports), 01 (rear panel), 02 (front panel), 03 – 99
9600, 19200, 38400, 115200
odd, even, none, mark, space (Only the first letter required.)
7, 8
1, 2
0 = RS-232, 1 = RS-422
0 = clear/none (default for Telnet connection)
1 = verbose mode (default for RS-232/RS-422 connection)
2 = tagged responses for queries
3 = verbose mode and tagged for queries
E } X3)]
CN , returns Ipn•
1 (= 10 seconds) – 65000 (default is 30 = 300 seconds = 5 minutes)
FOX 4G Matrix Switchers • Programmer's Guide
FOX-4G-Matrix -3- + last 3 pairs of MAC address
FOX-4G-Matrix
-7- + last 3 pairs of MAC address
F = fans P = power supply
1 = fail/missing 2 = fixed/restored
4 = suspend
).
4-17
