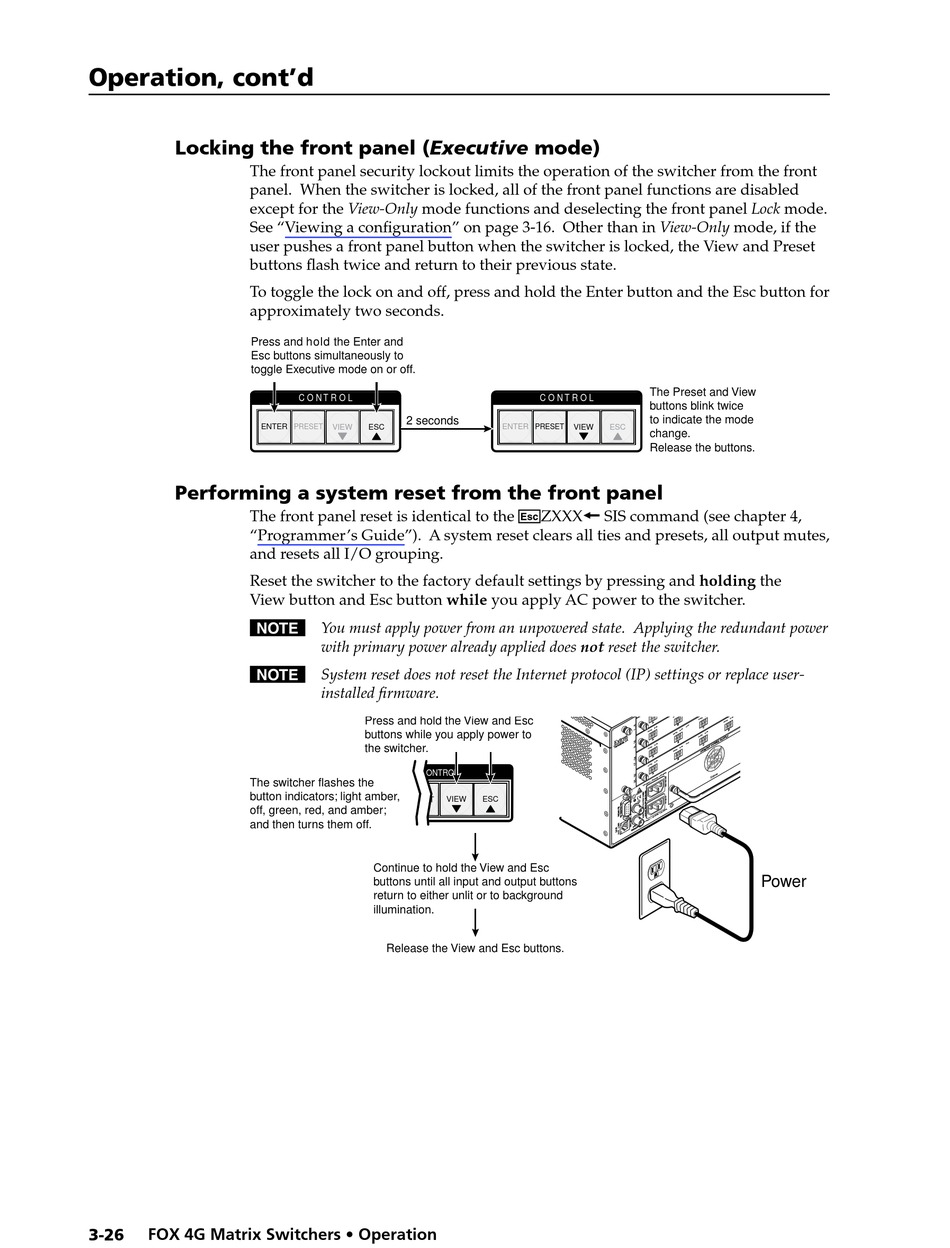

Operation, cont'd
Locking the front panel (Executive mode)
The front panel security lockout limits the operation of the switcher from the front
panel. When the switcher is locked, all of the front panel functions are disabled
except for the View-Only mode functions and deselecting the front panel Lock mode.
See "Viewing a configuration" on page 3-16. Other than in View-Only mode, if the
user pushes a front panel button when the switcher is locked, the View and Preset
buttons flash twice and return to their previous state.
To toggle the lock on and off, press and hold the Enter button and the Esc button for
approximately two seconds.
Press and hold the Enter and
Esc buttons simultaneously to
toggle Executive mode on or off.
ENTER

Performing a system reset from the front panel

The front panel reset is identical to the
"Programmer's Guide"). A system reset clears all ties and presets, all output mutes,
and resets all I/O grouping.
Reset the switcher to the factory default settings by pressing and holding the
View button and Esc button while you apply AC power to the switcher.
N You must apply power from an unpowered state. Applying the redundant power
N System reset does not reset the Internet protocol (IP) settings or replace user-
The switcher flashes the
button indicators; light amber,
off, green, red, and amber;
and then turns them off.
3-26 FOX 4G Matrix Switchers • Operation
C O N T R O L
2 seconds
PRESET VIEW ESC
with primary power already applied does not reset the switcher.
installed firmware.
Press and hold the View and Esc
buttons while you apply power to
the switcher.
CONTROL
T VIEW
Continue to hold the View and Esc
buttons until all input and output buttons
return to either unlit or to background
illumination.
Release the View and Esc buttons.
The Preset and View
C O N T R O L
buttons blink twice
to indicate the mode
ENTER PRESET VIEW ESC
change.
