Master-Reset selection
Master reset performs all of the following functions:
• Clears all ties
• Clears all presets
• Clears all output mutes
• Resets all I/O grouping
• Sets all output audio levels to 0 dB attenuation (100 percent)
N Master reset does not reset the Internet protocol (IP) settings.
Using Emulation mode
Emulation mode allows you to set up the software without attaching the switcher to
the computer. To use Emulation mode, do the following:
1.
2.
3.
4.
5.

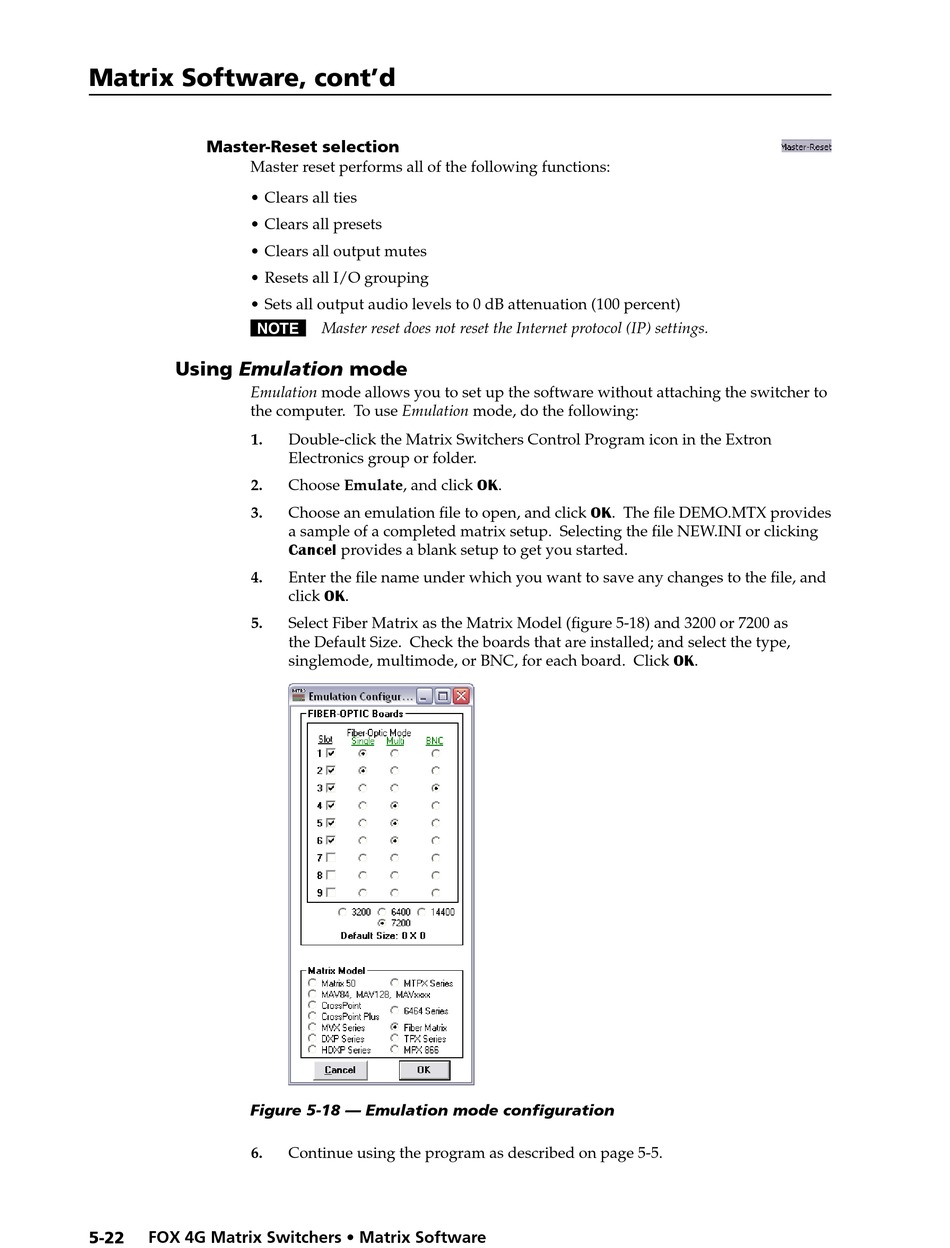

Figure 5-18 — Emulation mode configuration
6.
5-22 FOX 4G Matrix Switchers • Matrix Software
Double-click the Matrix Switchers Control Program icon in the Extron
Electronics group or folder.
Choose Emulate, and click OK.
Choose an emulation file to open, and click OK. The file DEMO.MTX provides
a sample of a completed matrix setup. Selecting the file NEW.INI or clicking
Cancel provides a blank setup to get you started.
Enter the file name under which you want to save any changes to the file, and
click OK.
Select Fiber Matrix as the Matrix Model (figure 5-18) and 3200 or 7200 as
the Default Size. Check the boards that are installed; and select the type,
singlemode, multimode, or BNC, for each board. Click OK.
Continue using the program as described on page 5-5.
