HTML Operation, cont'd
Input Link page
You can view the status of each I/O board slot on the Input Link page (figure 6-3).
Click the Input Link link to the left of the Status page to download the Input Link
page. The Input Link page updates itself every 30 seconds to show the latest status
of installed boards, LC connector installation, and input signal presence.
System Status
Refresh

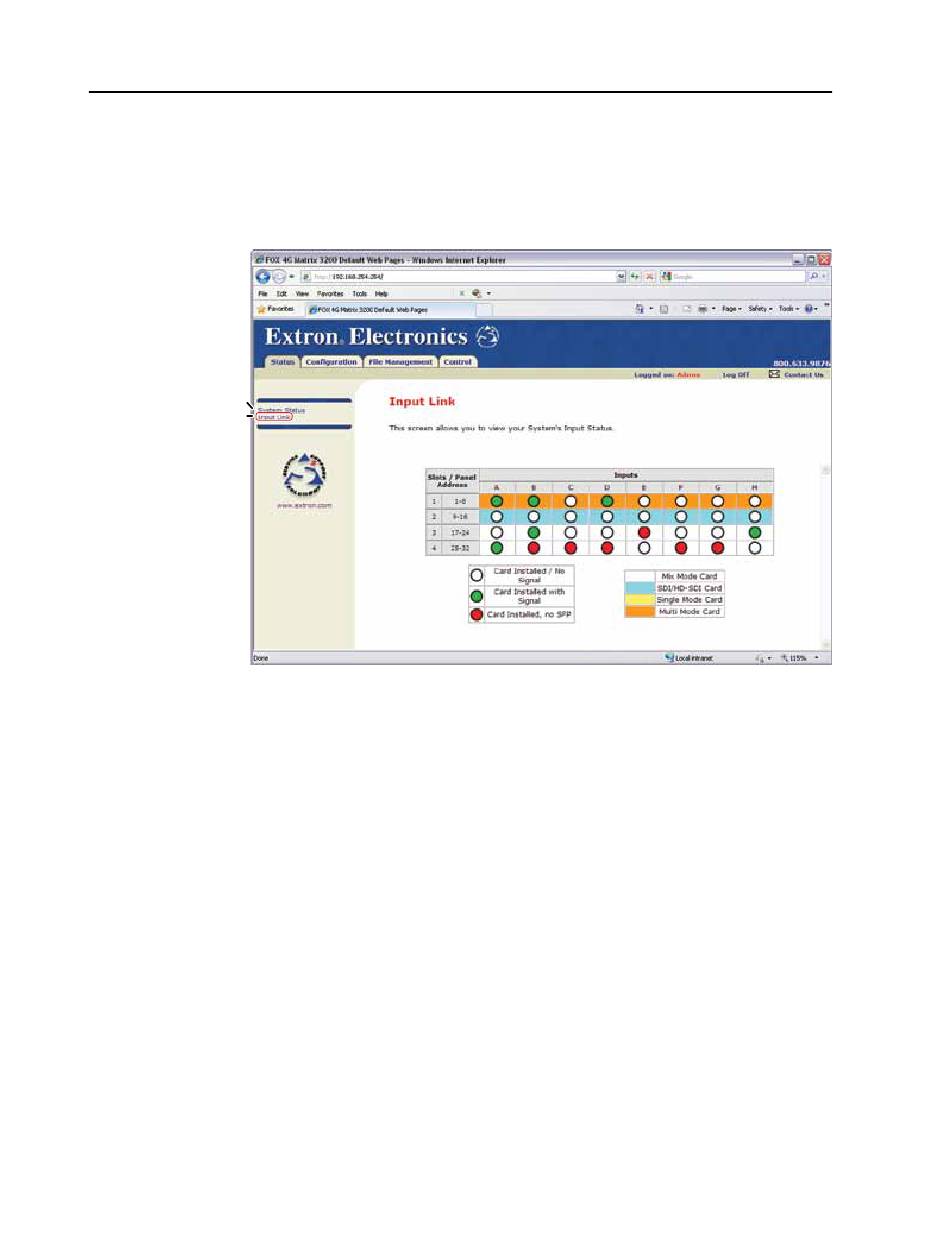

Figure 6-3 — Input Link page
6-4
FOX 4G Matrix Switchers • HTML Operation
