4. Confirm the change: Press and release the Enter button. The current
configuration is now stored in the selected memory location.
Press the Enter button to
save the preset.
C O N T R O L
ENTER PRESET VIEW
The Enter and Preset
buttons return to unlit or
background illumination.

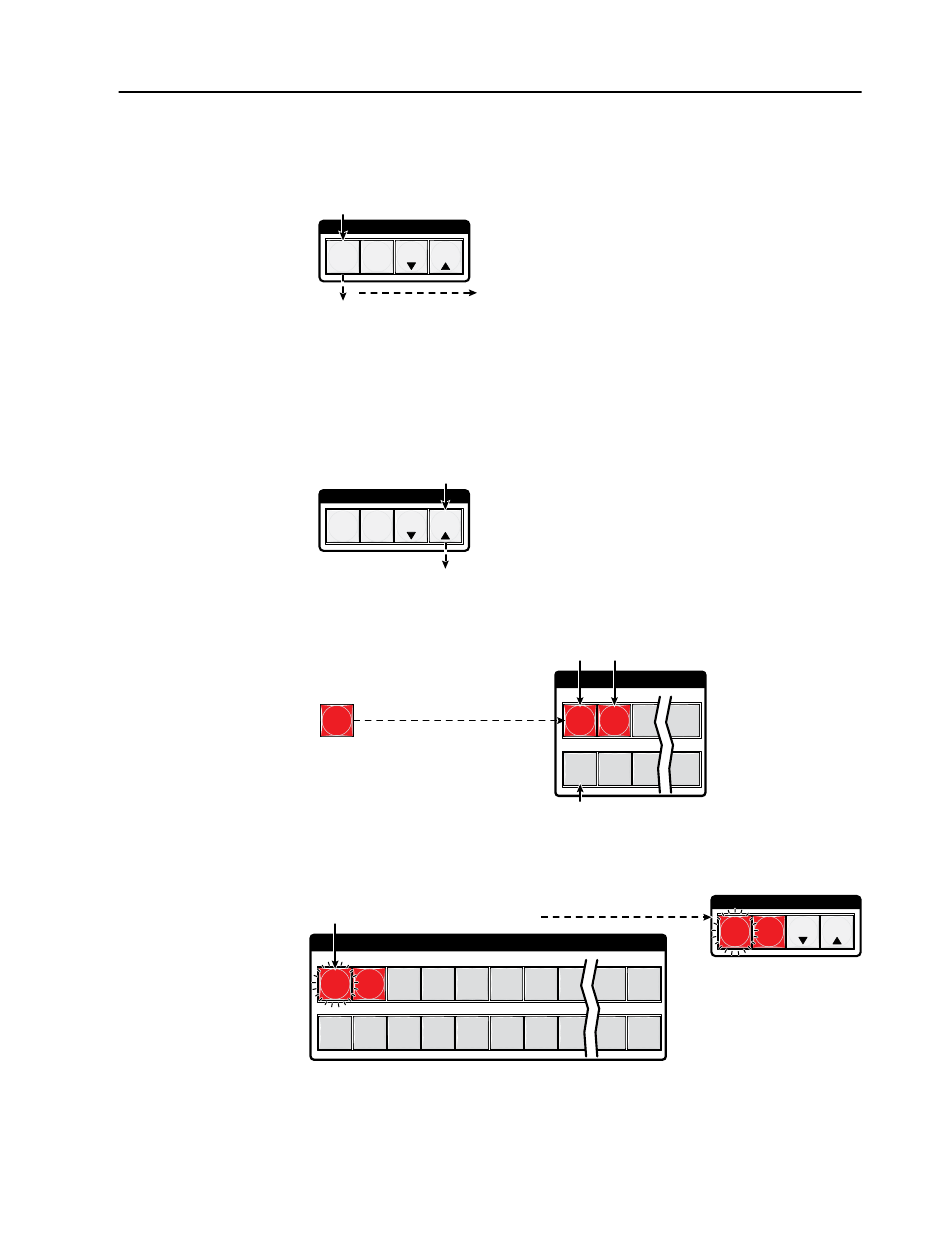

Example 7: Recalling a preset
In the following example, a preset is recalled to become the current configuration.
The steps show the front panel indications that result from your action.
1. Clear all selections: Press and release the Esc button.
Press the Esc button to clear all selections.
C O N T R O L
ENTER PRESET
VIEW
The button flashes once.
2. Select Recall Preset mode: Press and release the Preset button.
PRESET
Press and release the Preset button.
All input buttons with assigned presets light.
3. Select the preset: Press and release the input button for the desired preset.
Press and release the Input 1 button.
The button blinks to indicate that this
preset number is selected but not recalled.
1 2 3
17 18 19 20 21 22 23 24 31 32
ESC
All input buttons and output
buttons return to unlit or
background illumination.
ESC
Lit
(preset assigned)
1 2
17 18 19 32
Unlit
(no preset assigned)
INPUTS
4 5 6 7 8 15 16
FOX 4G Matrix Switchers • Operation
3 16
C O N T R O L
ENTER PRESET VIEW
The Enter button blinks
to indicate the need to
save the preset.
ESC
3-23
