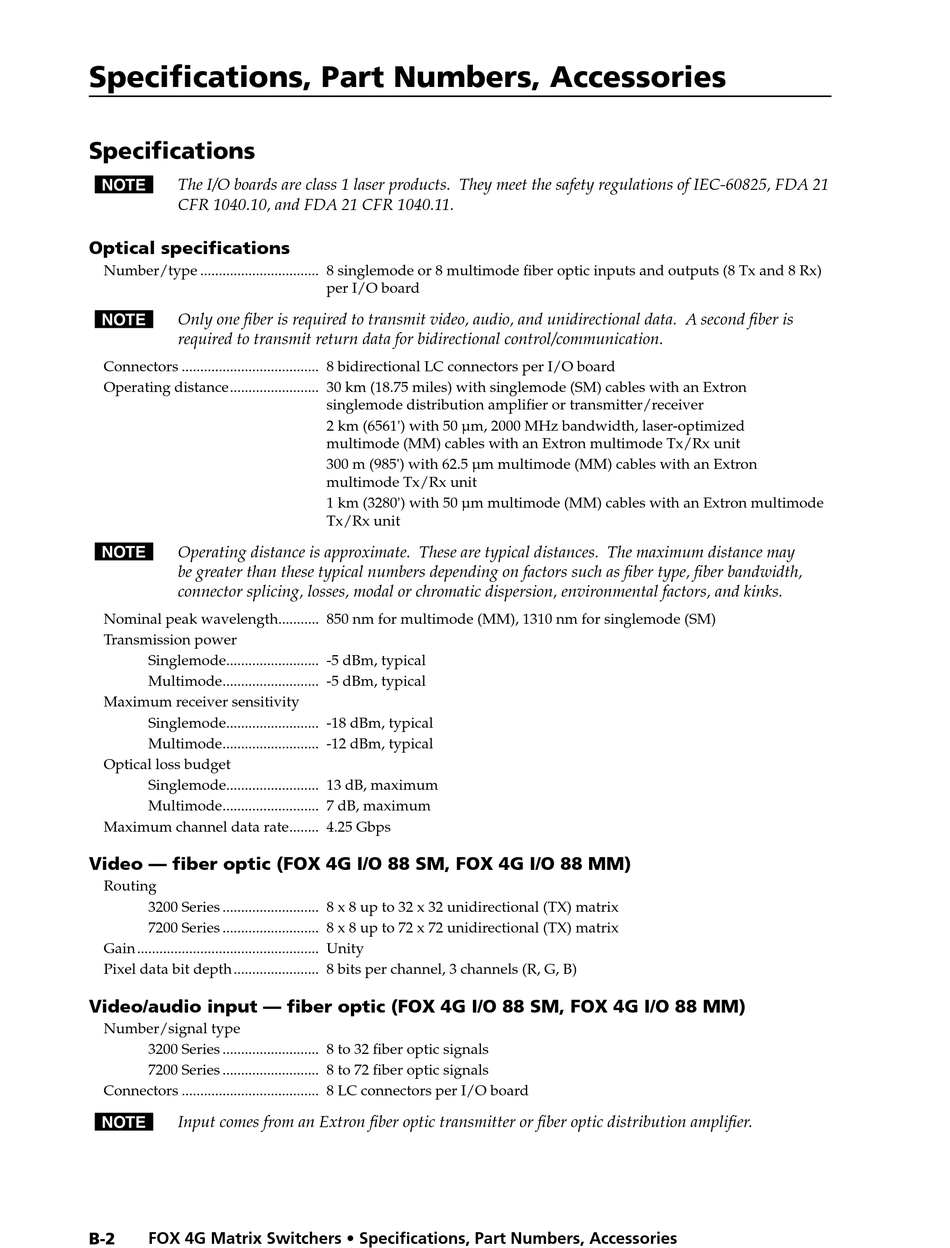

Specifications, Part Numbers, Accessories
Specifications
N The I/O boards are class 1 laser products. They meet the safety regulations of IEC-60825, FDA 21
CFR 1040.10, and FDA 21 CFR 1040.11.
Optical specifications
Number/type ................................ 8 singlemode or 8 multimode fiber optic inputs and outputs (8 Tx and 8 Rx)
Only one fiber is required to transmit video, audio, and unidirectional data. A second fiber is
N
required to transmit return data for bidirectional control/communication.
Connectors ..................................... 8 bidirectional LC connectors per I/O board
Operating distance ........................ 30 km (18.75 miles) with singlemode (SM) cables with an Extron
Operating distance is approximate. These are typical distances. The maximum distance may
N
be greater than these typical numbers depending on factors such as fiber type, fiber bandwidth,
connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Nominal peak wavelength........... 850 nm for multimode (MM), 1310 nm for singlemode (SM)
Transmission power
Singlemode ......................... -5 dBm, typical
Multimode .......................... -5 dBm, typical
Maximum receiver sensitivity
Singlemode ......................... -18 dBm, typical
Multimode .......................... -12 dBm, typical
Optical loss budget
Singlemode ......................... 13 dB, maximum
Multimode .......................... 7 dB, maximum
Maximum channel data rate ........ 4.25 Gbps
Video — fiber optic (FOX 4G I/O 88 SM, FOX 4G I/O 88 MM)
Routing
3200 Series .......................... 8 x 8 up to 32 x 32 unidirectional (TX) matrix
7200 Series .......................... 8 x 8 up to 72 x 72 unidirectional (TX) matrix
Gain ................................................. Unity
Pixel data bit depth ....................... 8 bits per channel, 3 channels (R, G, B)
Video/audio input — fiber optic (FOX 4G I/O 88 SM, FOX 4G I/O 88 MM)
Number/signal type
3200 Series .......................... 8 to 32 fiber optic signals
7200 Series .......................... 8 to 72 fiber optic signals
Connectors ..................................... 8 LC connectors per I/O board
N Input comes from an Extron fiber optic transmitter or fiber optic distribution amplifier.
B-2 FOX 4G Matrix Switchers • Specifications, Part Numbers, Accessories
per I/O board
singlemode distribution amplifier or transmitter/receiver
2 km (6561') with 50 µm, 2000 MHz bandwidth, laser-optimized
multimode (MM) cables with an Extron multimode Tx/Rx unit
300 m (985') with 62.5 µm multimode (MM) cables with an Extron
multimode Tx/Rx unit
1 km (3280') with 50 µm multimode (MM) cables with an Extron multimode
Tx/Rx unit
