Operation, cont'd
Example 5: Grouping inputs and outputs
In the following example, several switcher inputs and outputs are assigned to
groups. The steps show the front panel indications that result from your action.
1.
2.
3.
3-20 FOX 4G Matrix Switchers • Operation

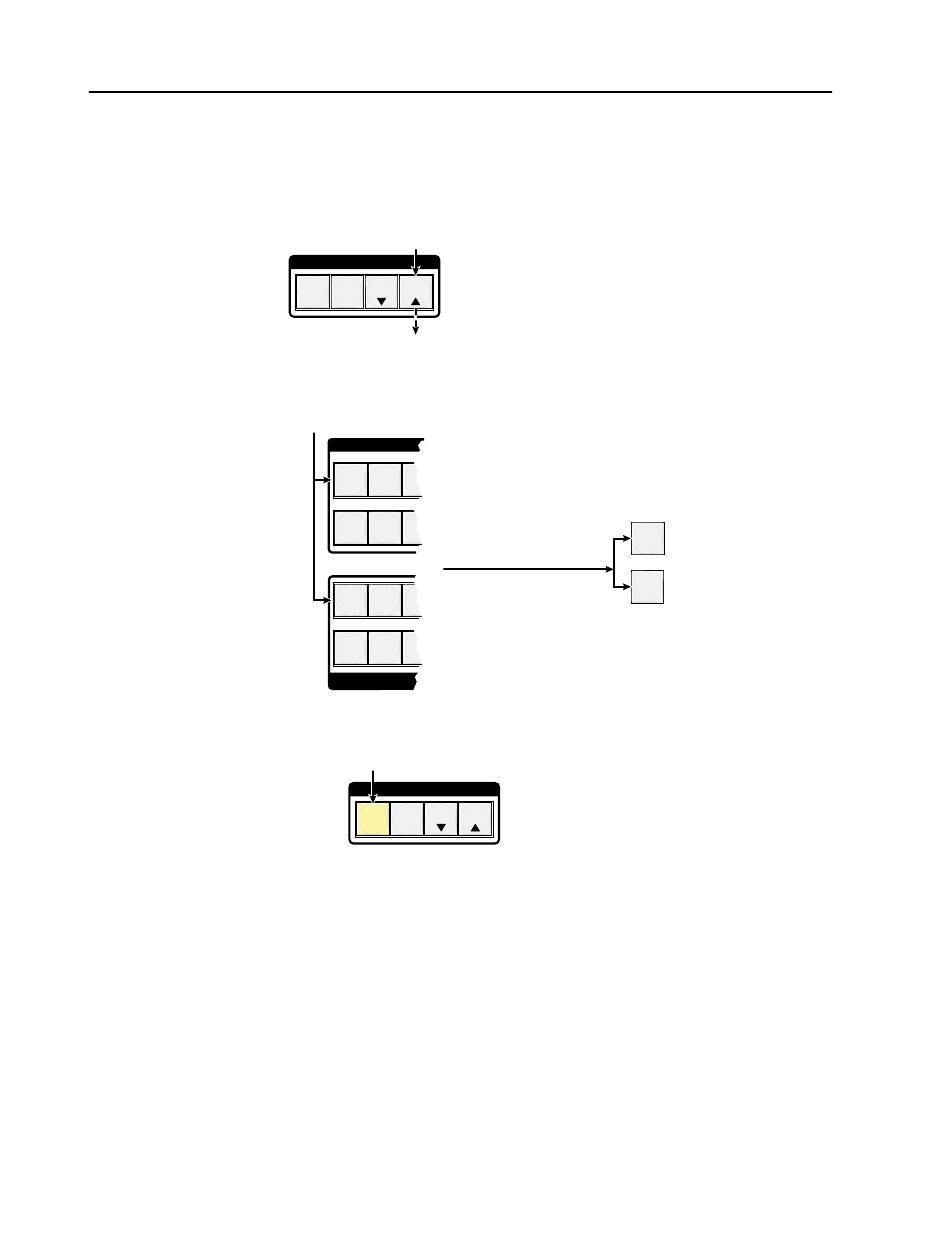

Clear all selections: Press and release the Esc button.
Press the Esc button to clear all selections.
C O N T R O L
ENTER PRESET
VIEW ESC
The button flashes once.
Select I/O Group mode: Press and hold the Input 1 and Output 1 buttons for
approximately 2 seconds and then release the buttons.
Press and hold the Input 1 button and Output 1 button.
1 2 3
17 18 19
2 seconds
Ungrouped input and
1 2 3
output buttons light.
17 18 19
Select an I/O group: Press and release the Enter button to select group 1.
Press and release the Enter button to select group 1.
The button lights to indicate the selection.
C O N T R O L
ENTER PRESET VIEW ESC
Group # 1 2 3
Release the Input 1 button
and Output 1 button.
1
1
4
