Operation, cont'd

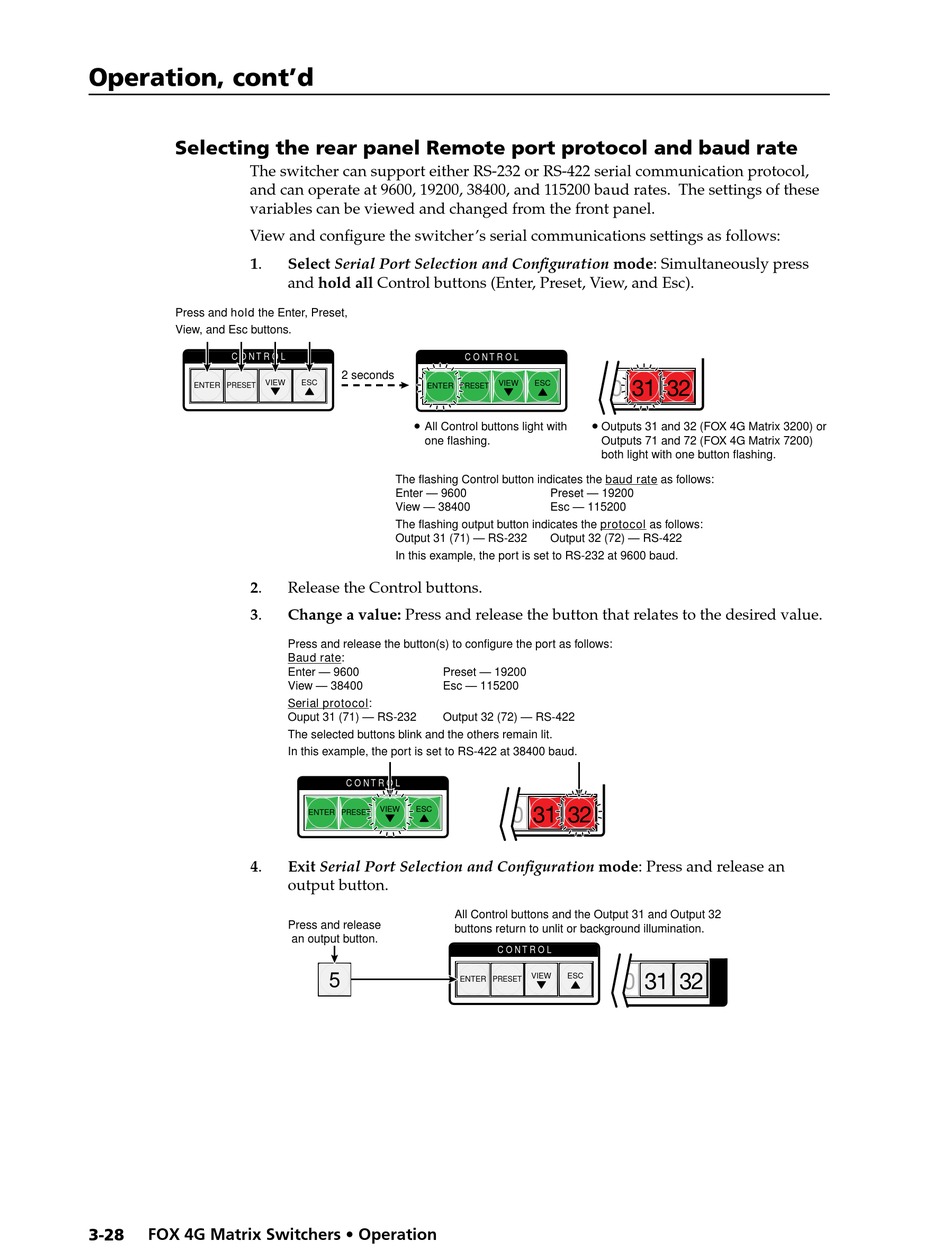

Selecting the rear panel Remote port protocol and baud rate
The switcher can support either RS-232 or RS-422 serial communication protocol,
and can operate at 9600, 19200, 38400, and 115200 baud rates. The settings of these
variables can be viewed and changed from the front panel.
View and configure the switcher's serial communications settings as follows:
1.
Press and hold the Enter, Preset,
View, and Esc buttons.
C O N T R O L
VIEW
ENTER PRESET
2.
3.
4.
3-28 FOX 4G Matrix Switchers • Operation
Select Serial Port Selection and Configuration mode: Simultaneously press
and hold all Control buttons (Enter, Preset, View, and Esc).
C O N T R O L
2 seconds
ESC
ENTER PRESET
•
All Control buttons light with
one flashing.
The flashing Control button indicates the baud rate as follows:
Enter — 9600
View — 38400
The flashing output button indicates the protocol as follows:
Output 31 (71) — RS-232
In this example, the port is set to RS-232 at 9600 baud.
Release the Control buttons.
Change a value: Press and release the button that relates to the desired value.
Press and release the button(s) to configure the port as follows:
Baud rate:
Enter — 9600 Preset — 19200
View — 38400 Esc — 115200
Serial protocol:
Ouput 31 (71) — RS-232 Output 32 (72) — RS-422
The selected buttons blink and the others remain lit.
In this example, the port is set to RS-422 at 38400 baud.
C O N T R O L
VIEW ESC
ENTER PRESET
Exit Serial Port Selection and Configuration mode: Press and release an
output button.
All Control buttons and the Output 31 and Output 32
Press and release
buttons return to unlit or background illumination.
an output button.
5
ENTER
0 31 32
VIEW ESC
•
Outputs 31 and 32 (FOX 4G Matrix 3200) or
Outputs 71 and 72 (FOX 4G Matrix 7200)
both light with one button flashing.
Preset — 19200
Esc — 115200
Output 32 (72) — RS-422
0 31 32
C O N T R O L
0 31 32
VIEW ESC
PRESET
