Removing and Installing the I/O Board or Blank Panel
W
N As factory configured, the fiber optic I/O boards are configured as either
N For proper cooling and air flow, boards or blank panels should be installed in all
See figure 7-1. The transceiver modules on fiber optic I/O boards and the BNC
connectors on SDI/HD-SDI boards are identified as A through H . Each I/O board
is identified by the input and output numbers supported by the board position (1 - 8,
9 - 16, and so on).
Location A
Output and Input
ANAHEIM, CA
Location A
Input

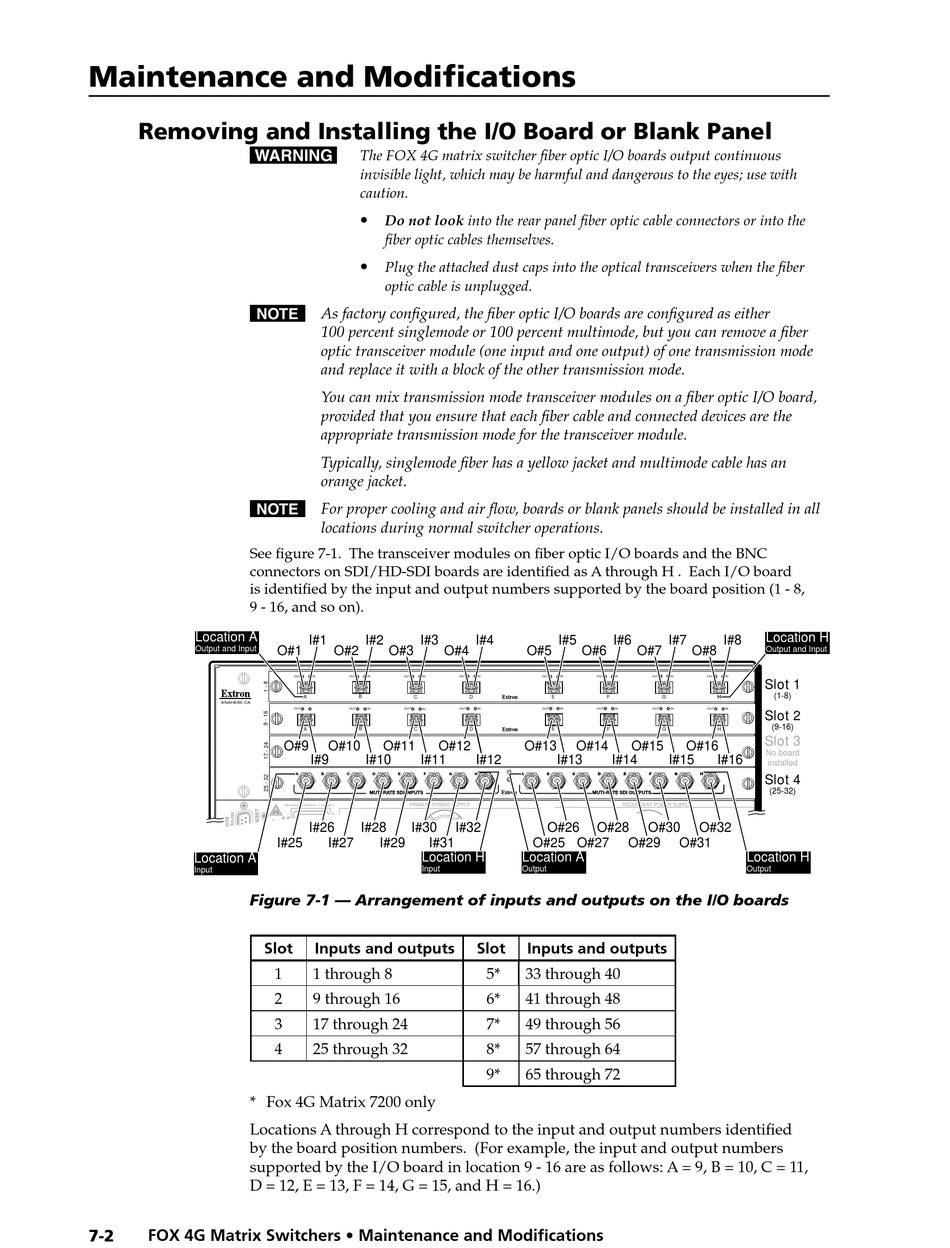

Figure 7-1 — Arrangement of inputs and outputs on the I/O boards
Slot
* Fox 4G Matrix 7200 only
Locations A through H correspond to the input and output numbers identified
by the board position numbers. (For example, the input and output numbers
supported by the I/O board in location 9 - 16 are as follows: A = 9, B = 10, C = 11,
D = 12, E = 13, F = 14, G = 15, and H = 16.)
7-2
FOX 4G Matrix Switchers • Maintenance and Modifications
The FOX 4G matrix switcher fiber optic I/O boards output continuous
invisible light, which may be harmful and dangerous to the eyes; use with
caution.
• Do not look into the rear panel fiber optic cable connectors or into the
fiber optic cables themselves.
• Plug the attached dust caps into the optical transceivers when the fiber
optic cable is unplugged.
100 percent singlemode or 100 percent multimode, but you can remove a fiber
optic transceiver module (one input and one output) of one transmission mode
and replace it with a block of the other transmission mode.
You can mix transmission mode transceiver modules on a fiber optic I/O board,
provided that you ensure that each fiber cable and connected devices are the
appropriate transmission mode for the transceiver module.
Typically, singlemode fiber has a yellow jacket and multimode cable has an
orange jacket.
locations during normal switcher operations.
