Operation, cont'd

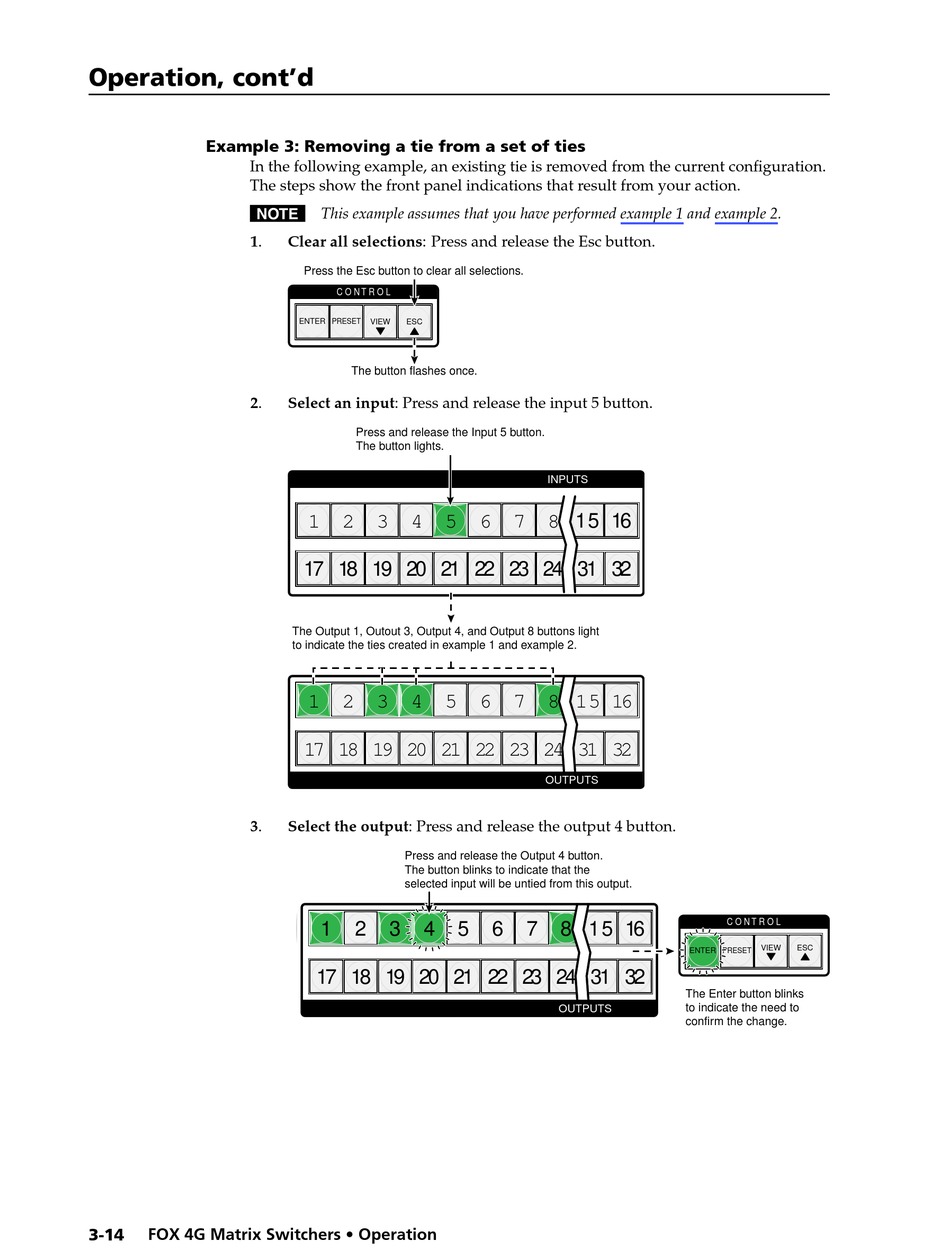

Example 3: Removing a tie from a set of ties
In the following example, an existing tie is removed from the current configuration.
The steps show the front panel indications that result from your action.
N This example assumes that you have performed example 1 and example 2.
1.
2.
3.
3-14 FOX 4G Matrix Switchers • Operation
Clear all selections: Press and release the Esc button.
Press the Esc button to clear all selections.
C O N T R O L
ENTER PRESET VIEW ESC
The button flashes once.
Select an input: Press and release the input 5 button.
Press and release the Input 5 button.
The button lights.
1 2 3 4 5
17 18 19 20 21 22 23 24 31 32
The Output 1, Outout 3, Output 4, and Output 8 buttons light
to indicate the ties created in example 1 and example 2.
1 2 3 4 5
17 18 19 20 21 22 23 24 31 32
Select the output: Press and release the output 4 button.
Press and release the Output 4 button.
The button blinks to indicate that the
selected input will be untied from this output.
1 2 3 4 5
17 18 19 20 21 22 23 24 31 32
INPUTS
6 7 8 15 16
6 7 8 15 16
OUTPUTS
6 7 8 15 16
OUTPUTS
C O N T R O L
VIEW ESC
ENTER PRESET
The Enter button blinks
to indicate the need to
confirm the change.
