Matrix Software, cont'd
Updating firmware
The firmware upgrade utility provides a way to replace the firmware that is coded
on the switcher's control board without taking the switcher out of service.
Update the switcher firmware as follows:
1.

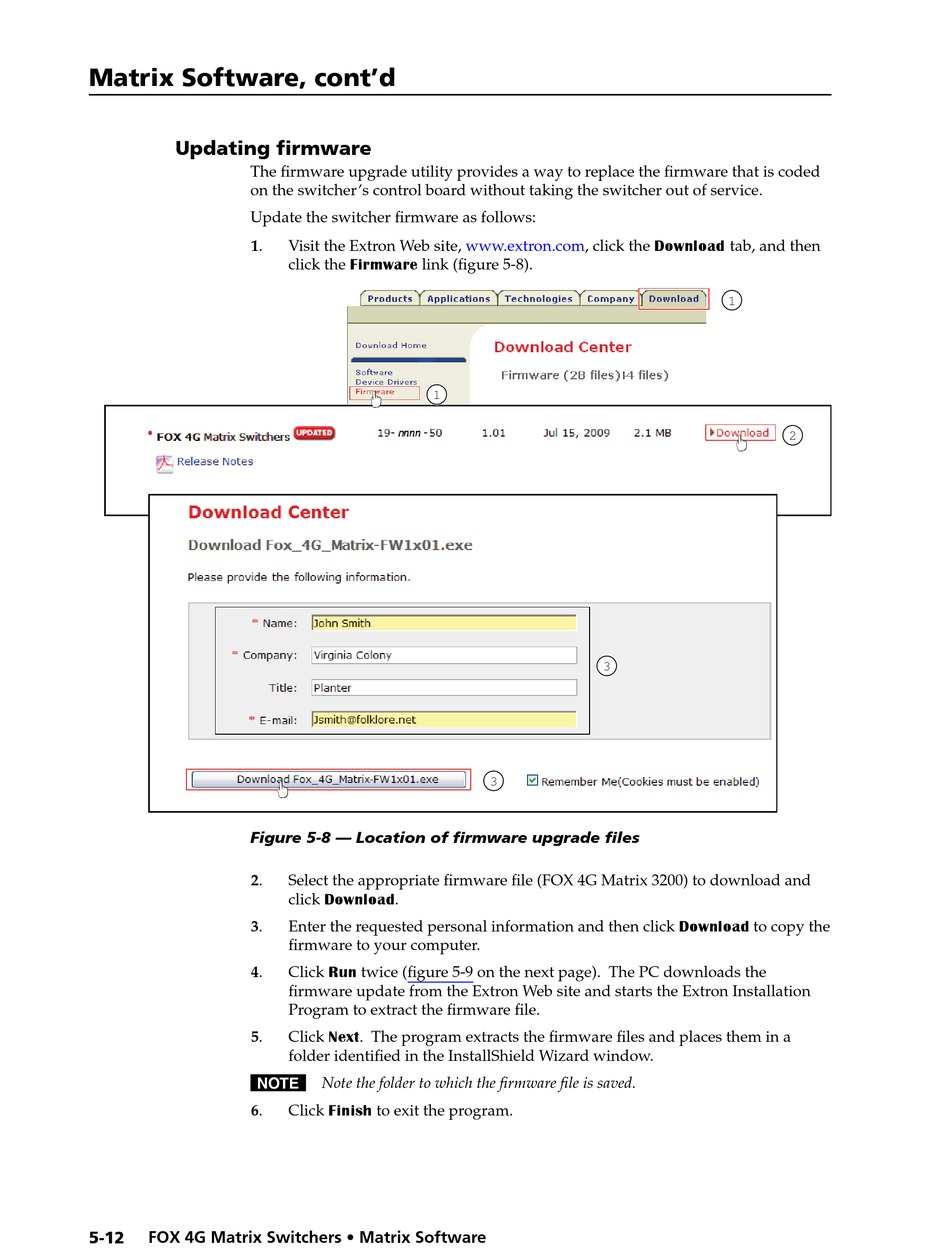

Figure 5-8 — Location of firmware upgrade files
2.
3.
4.
5.
N Note the folder to which the firmware file is saved.
6.
5-12 FOX 4G Matrix Switchers • Matrix Software
Visit the Extron Web site, www.extron.com, click the Download tab, and then
click the Firmware link (figure 5-8).
1
Select the appropriate firmware file (FOX 4G Matrix 3200) to download and
click Download.
Enter the requested personal information and then click Download to copy the
firmware to your computer.
Click Run twice (figure 5-9 on the next page). The PC downloads the
firmware update from the Extron Web site and starts the Extron Installation
Program to extract the firmware file.
Click Next. The program extracts the firmware files and places them in a
folder identified in the InstallShield Wizard window.
Click Finish to exit the program.
3
3
1
2
