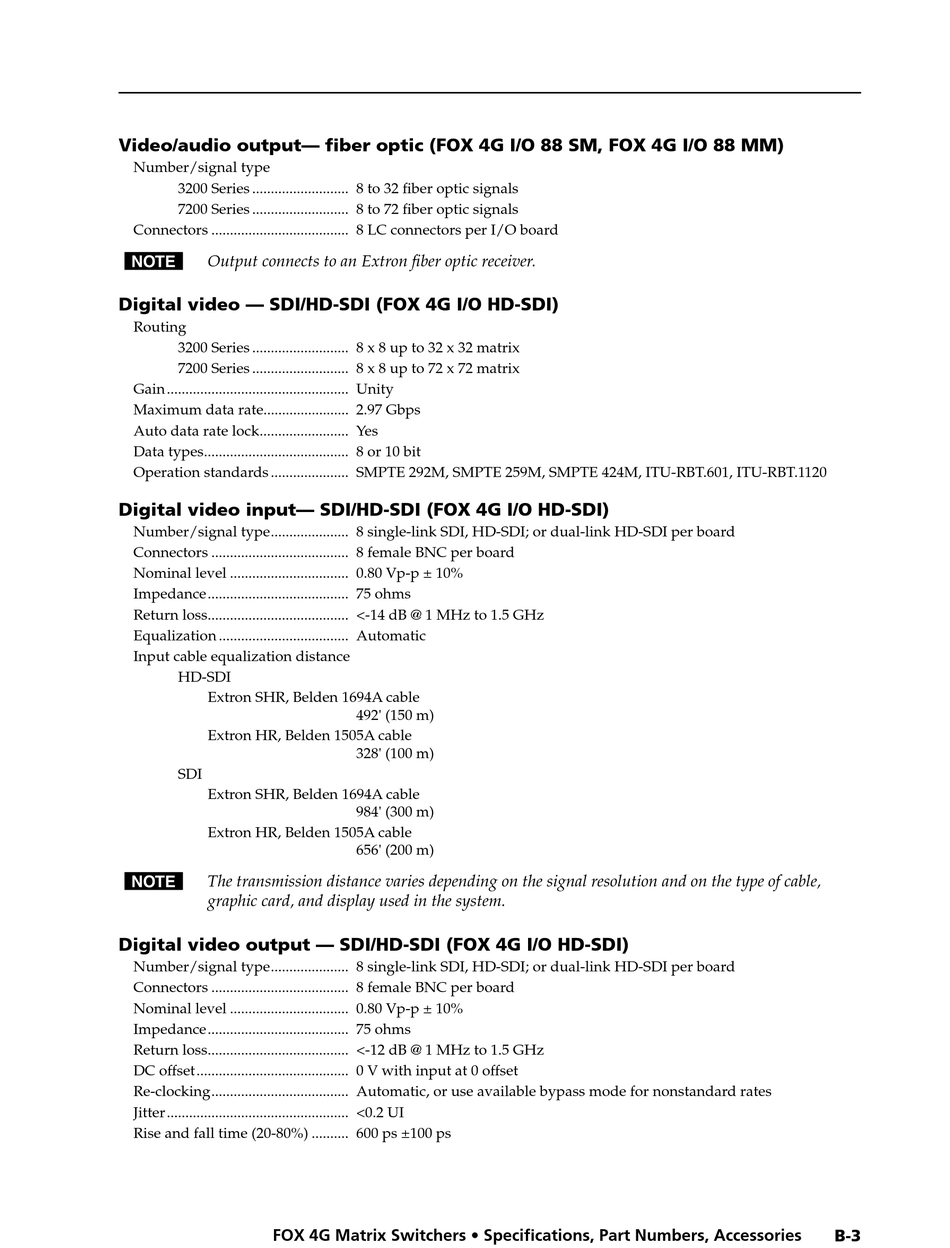

Video/audio output— fiber optic (FOX 4G I/O 88 SM, FOX 4G I/O 88 MM)
Number/signal type
3200 Series .......................... 8 to 32 fiber optic signals
7200 Series .......................... 8 to 72 fiber optic signals
Connectors ..................................... 8 LC connectors per I/O board
Output connects to an Extron fiber optic receiver.
N
Digital video — SDI/HD-SDI (FOX 4G I/O HD-SDI)
Routing
3200 Series .......................... 8 x 8 up to 32 x 32 matrix
7200 Series .......................... 8 x 8 up to 72 x 72 matrix
Gain ................................................. Unity
Maximum data rate....................... 2.97 Gbps
Auto data rate lock ........................ Yes
Data types ....................................... 8 or 10 bit
Operation standards ..................... SMPTE 292M, SMPTE 259M, SMPTE 424M, ITU-RBT.601, ITU-RBT.1120
Digital video input— SDI/HD-SDI (FOX 4G I/O HD-SDI)
Number/signal type ..................... 8 single-link SDI, HD-SDI; or dual-link HD-SDI per board
Connectors ..................................... 8 female BNC per board
Nominal level ................................ 0.80 Vp-p ± 10%
Impedance ...................................... 75 ohms
Return loss ...................................... <-14 dB @ 1 MHz to 1.5 GHz
Equalization ................................... Automatic
Input cable equalization distance
HD-SDI
Extron SHR, Belden 1694A cable
Extron HR, Belden 1505A cable
SDI
Extron SHR, Belden 1694A cable
Extron HR, Belden 1505A cable
N The transmission distance varies depending on the signal resolution and on the type of cable,
graphic card, and display used in the system.
Digital video output — SDI/HD-SDI (FOX 4G I/O HD-SDI)
Number/signal type ..................... 8 single-link SDI, HD-SDI; or dual-link HD-SDI per board
Connectors ..................................... 8 female BNC per board
Nominal level ................................ 0.80 Vp-p ± 10%
Impedance ...................................... 75 ohms
Return loss ...................................... <-12 dB @ 1 MHz to 1.5 GHz
DC offset ......................................... 0 V with input at 0 offset
Re-clocking ..................................... Automatic, or use available bypass mode for nonstandard rates
Jitter ................................................. <0.2 UI
Rise and fall time (20-80%) .......... 600 ps ±100 ps
FOX 4G Matrix Switchers • Specifications, Part Numbers, Accessories
492' (150 m)
328' (100 m)
984' (300 m)
656' (200 m)
B-3
