4.

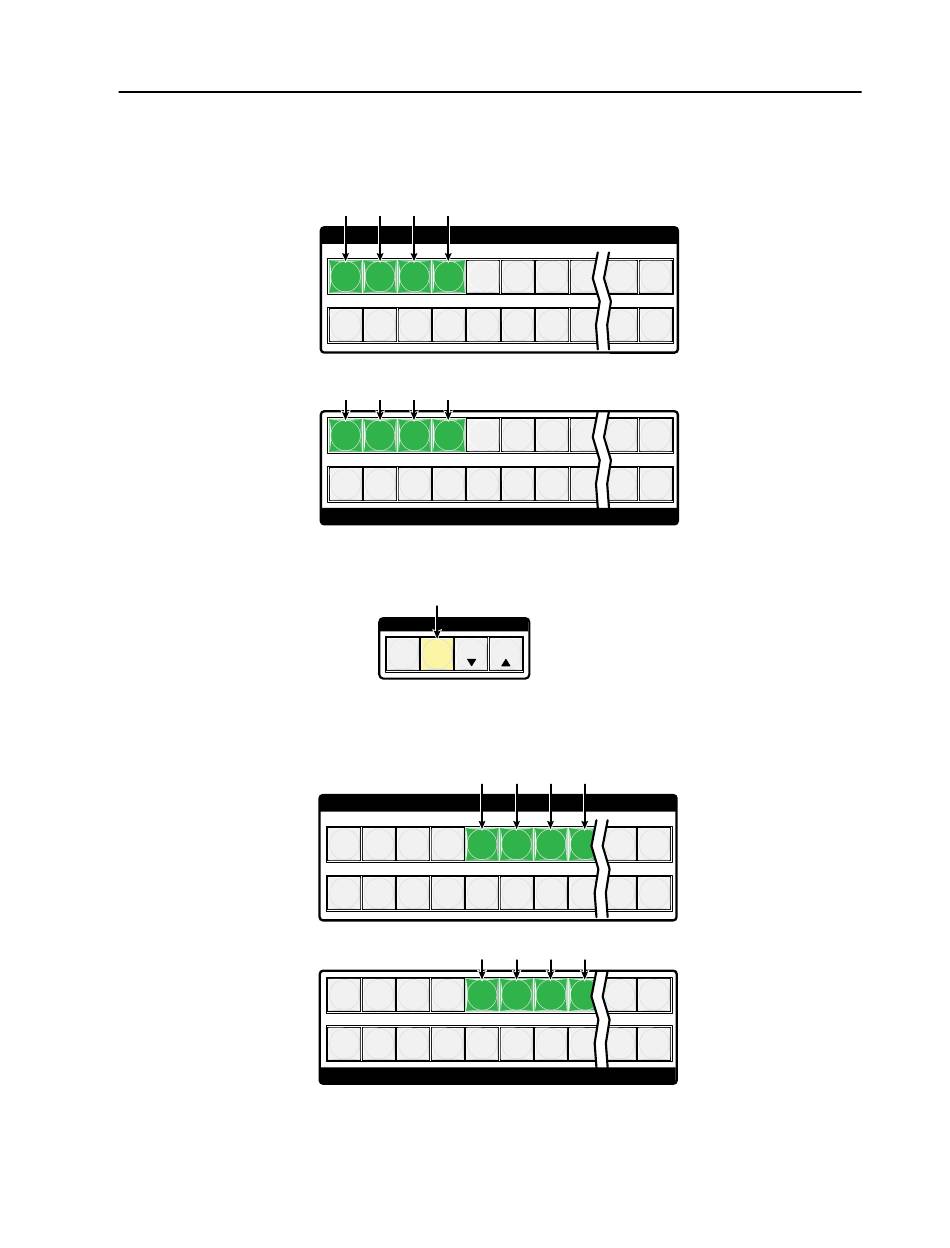

Assign inputs and outputs: Press and release the input 1 through 4 and
output 1 through 4 buttons.
One at a time, press and release the Input 1 through Input 4 buttons.
The selected buttons light.
1
2
3
4
17 18 19 20 21 22 23 24 31 32
One at a time, press and release the Output 1 through Output 4 buttons.
The selected buttons light.
1
2
3
4
17 18 19 20 21 22 23 24 31 32
5.
Select an I/O group: Press and release the Preset button to select group 2.
Press and release the Preset button to select group 2.
The button lights to indicate the selection.
C O N T R O L
ENTER
PRESET
Group #
1
2
6.
Assign inputs and outputs: Press and release the input 5 through 8 and
output 5 through 8 buttons.
One at a time, press and release the Input 5 through Input 6 buttons.
The selected buttons light.
1
2
3
4
17 18 19 20 21 22 23 24 31 32
One at a time, press and release the Output 5 through Output 8 buttons.
The selected buttons light.
1
2
3
4
17 18 19 20 21 22 23 24 31 32
7.
Do nothing for approximately 30 seconds. The switcher exits I/O Group mode.
In this example:
•
Group 1 consists of inputs 1 through 4 and outputs 1 through 4.
•
Group 2 consists of inputs 5 through 8 and outputs 5 through 8.
INPUTS
5
6
7
8 15 16
5
6
7
8 15 16
OUTPUTS
VIEW
ESC
3
4
INPUTS
5
6
7
8 15 16
5
6
7
8 15 16
OUTPUTS
FOX 4G Matrix Switchers • Operation
3-21
