User Presets Submenu

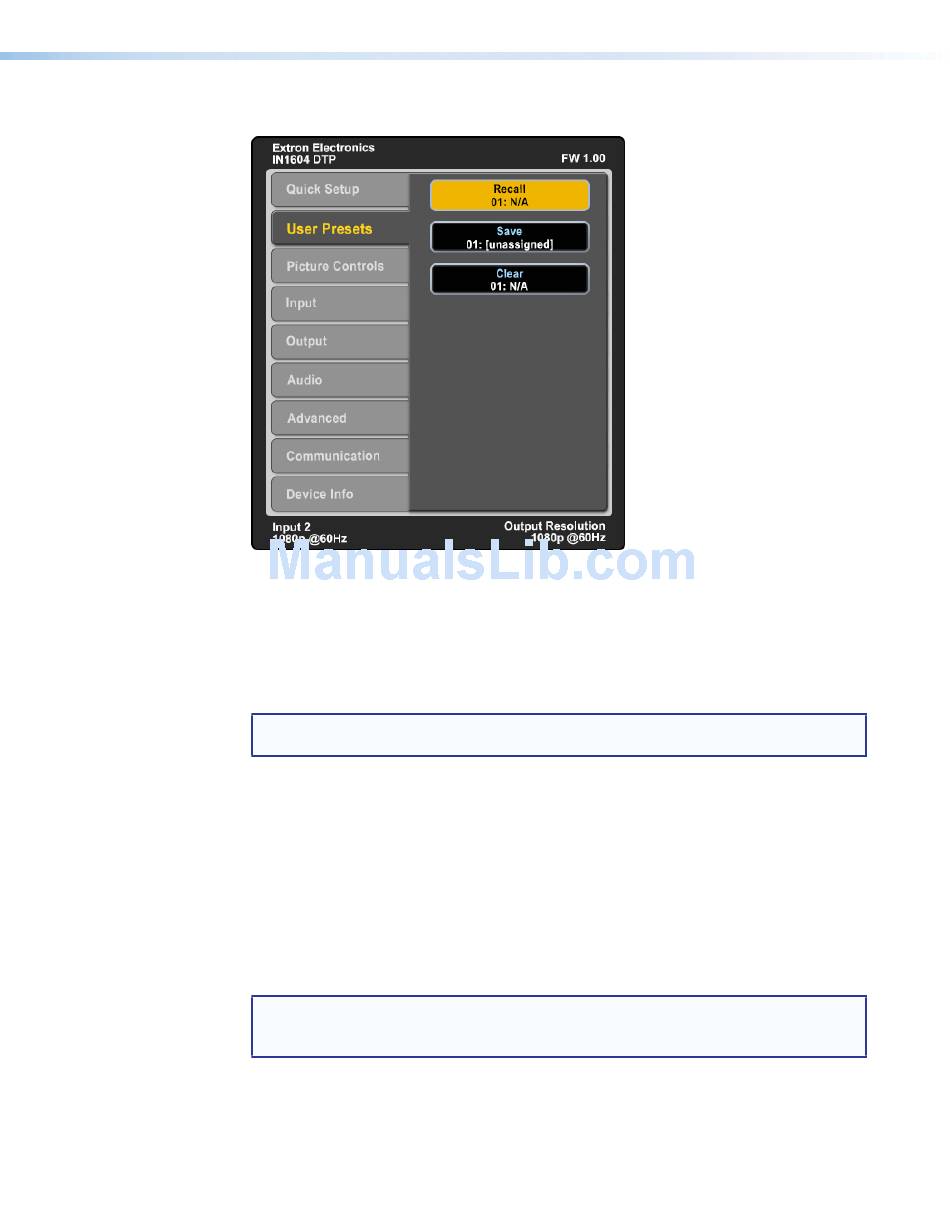

Figure 12.
The
User Presets
Controls Submenu
recalled, or a user preset to be erased. User presets can be saved and recalled later on
another input, allowing them to also be used as aspect ratio or discrete size and center
shortcuts. There are 16 user presets available per input. Press the Input Selection buttons to
select an input.
NOTE: If a saved preset is not named, "
the preset number).
From the
Recall
desired preset to either save picture control settings, recall previously saved picture control
settings, or reset a preset.
User presets save the following settings:
• Brightness and contrast
• Color and tint
Detail
•
• Image size and position
Preset name
•
NOTE: This submenu is for user presets only. To save and recall input presets, use SIS
commands (see
Preset Management Page
User Presets Submenu
submenu allows the current picture control settings (see
on page 19) for the selected input to be saved, a user preset to be
, , or submenu item, press the navigation buttons to select the
Save Clear
Preset Commands
on page 72).
IN1604 DTP and IN1604 HD Scalers • Operation
" is assigned (
User Preset XX
on page 40) or the Configuration Software (see
represents
XX
18
