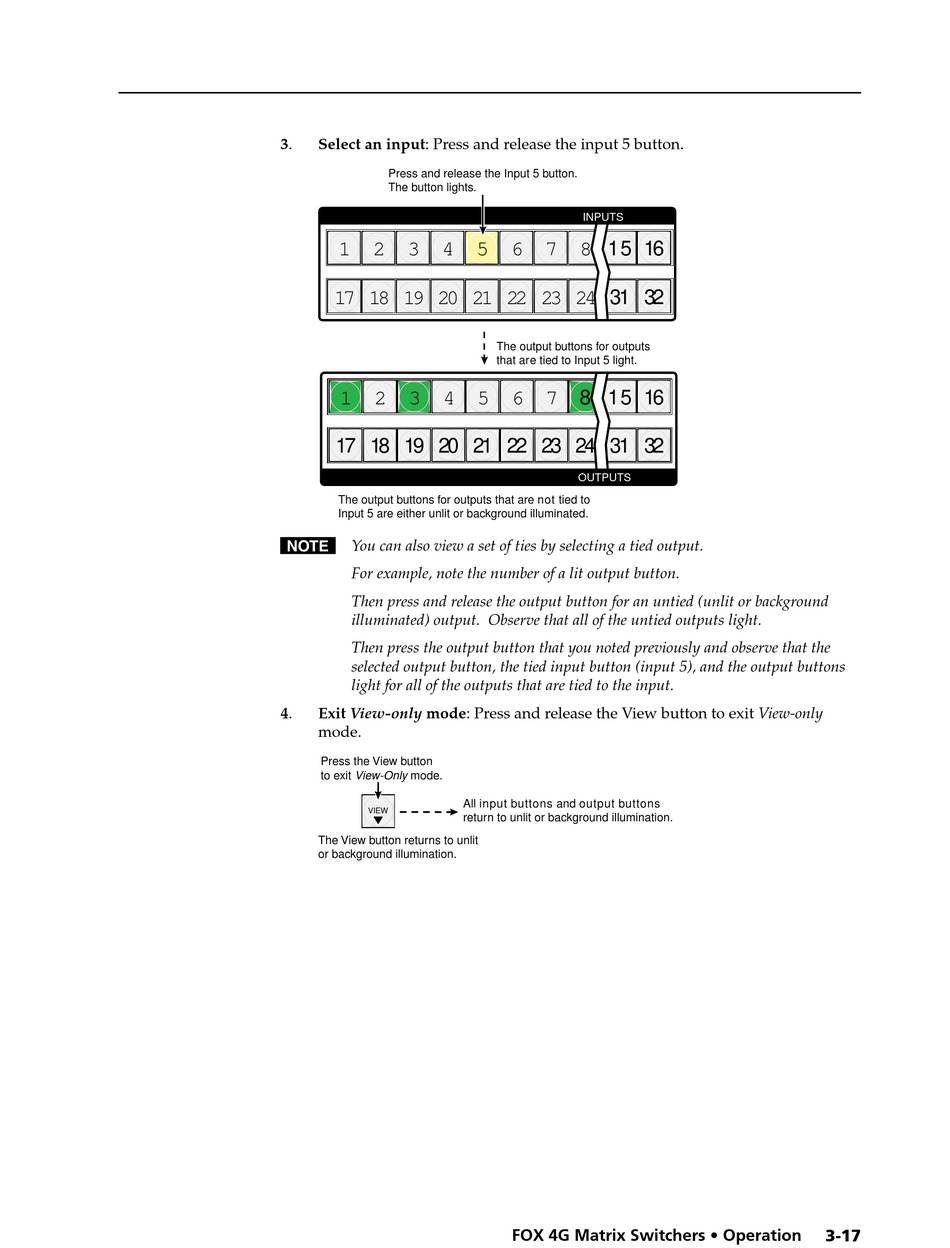

3. Select an input: Press and release the input 5 button.
Press and release the Input 5 button.
The button lights.
1 2 3 4
17 18 19 20 21 22 23
1 2 3 4
17 18 19 20 21 22 23 24 31 32
The output buttons for outputs that are not tied to
Input 5 are either unlit or background illuminated.
N You can also view a set of ties by selecting a tied output.
For example, note the number of a lit output button.
Then press and release the output button for an untied (unlit or background
illuminated) output. Observe that all of the untied outputs light.
Then press the output button that you noted previously and observe that the
selected output button, the tied input button (input 5), and the output buttons
light for all of the outputs that are tied to the input.
4. Exit View-only mode: Press and release the View button to exit View-only
mode.
Press the View button
to exit View-Only mode.
VIEW
The View button returns to unlit
or background illumination.
INPUTS
5 6 7 8 15 16
24 31 32
The output buttons for outputs
OUTPUTS
that are tied to Input 5 light.
5 6 7 8 15 16
OUTPUTS
All input buttons and output buttons
return to unlit or background illumination.
FOX 4G Matrix Switchers • Operation 3-17
