Matrix Software, cont'd
Using the Matrix Switcher Control software
Many items found in the Matrix Switchers Control Program are also accessible
via front panel controls (see chapter 3, "Operation") and under SIS control (see
chapter 4, "Programmer's Guide"). The Matrix Switcher Help Program provides
information on settings and on how to use the control program, itself.
1.

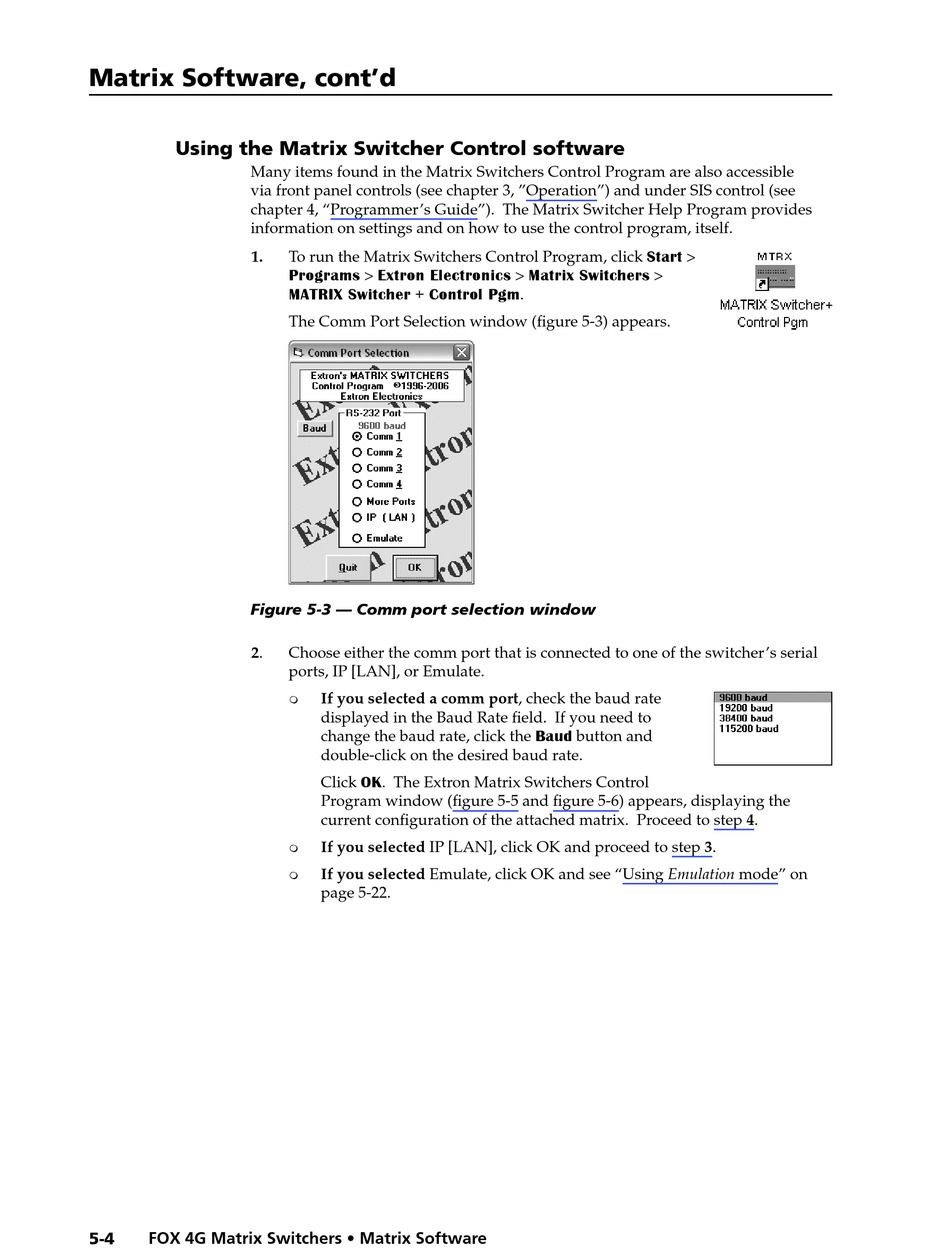

Figure 5-3 — Comm port selection window
2.
5-4 FOX 4G Matrix Switchers • Matrix Software
To run the Matrix Switchers Control Program, click Start >
Programs > Extron Electronics > Matrix Switchers >
MATRIX Switcher + Control Pgm.
The Comm Port Selection window (figure 5-3) appears.
Choose either the comm port that is connected to one of the switcher's serial
ports, IP [LAN], or Emulate.
If you selected a comm port, check the baud rate

displayed in the Baud Rate field. If you need to
change the baud rate, click the Baud button and
double-click on the desired baud rate.
Click OK. The Extron Matrix Switchers Control
Program window (figure 5-5 and figure 5-6) appears, displaying the
current configuration of the attached matrix. Proceed to step 4.
If you selected IP [LAN], click OK and proceed to step 3.

If you selected Emulate, click OK and see "Using Emulation mode" on

page 5-22.
