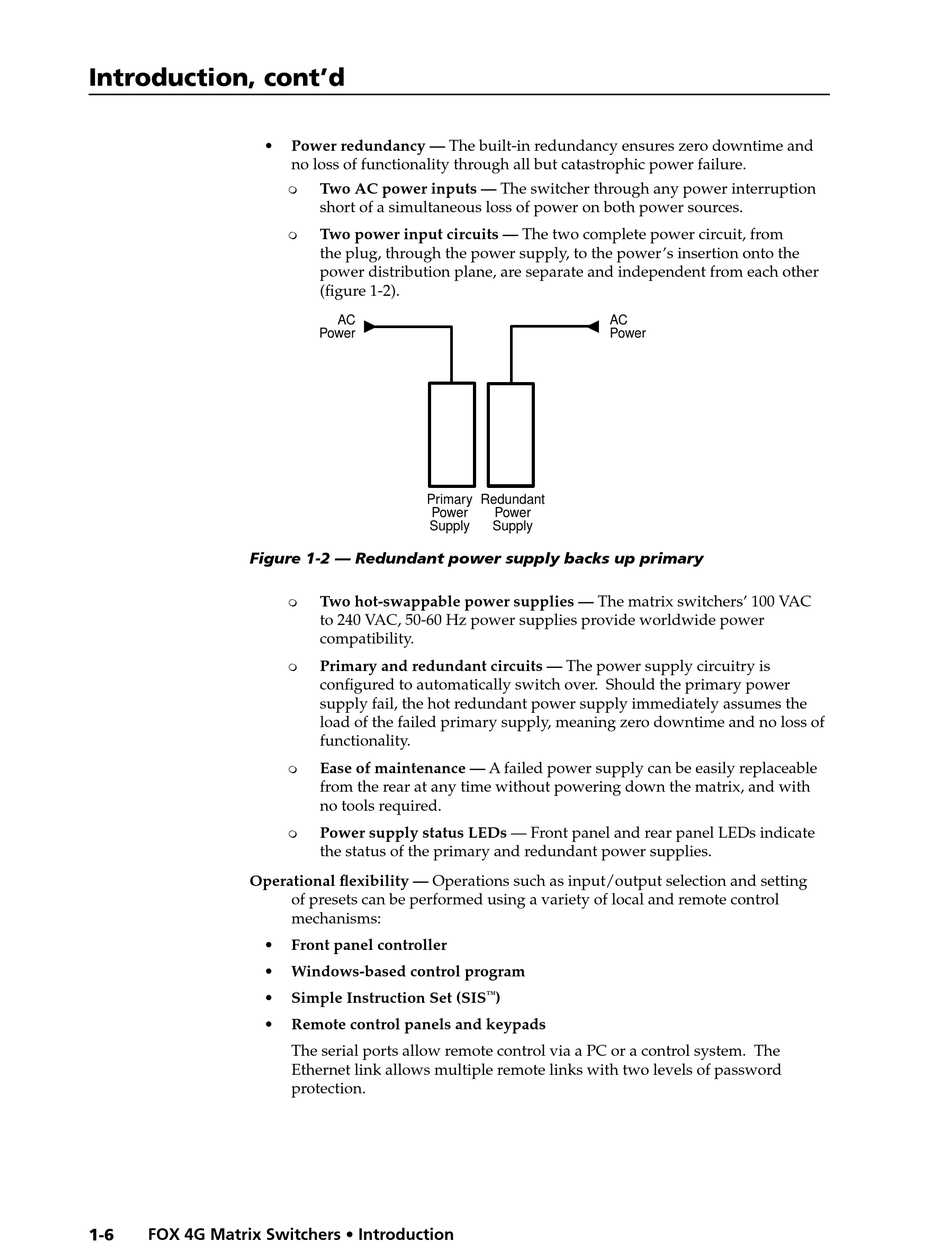

Extron electronics FOX 4G Matrix 3200 User Manual page 16

Introduction, cont'd
•
Figure 1-2 — Redundant power supply backs up primary
Operational flexibility — Operations such as input/output selection and setting
• Front panel controller
• Windows-based control program
• Simple Instruction Set (SIS
• Remote control panels and keypads
1-6 FOX 4G Matrix Switchers • Introduction
Power redundancy — The built-in redundancy ensures zero downtime and
no loss of functionality through all but catastrophic power failure.
Two AC power inputs — The switcher through any power interruption

short of a simultaneous loss of power on both power sources.
Two power input circuits — The two complete power circuit, from

the plug, through the power supply, to the power's insertion onto the
power distribution plane, are separate and independent from each other
(figure 1-2).
AC
Power
Primary
Power
Supply
Two hot-swappable power supplies — The matrix switchers' 100 VAC

to 240 VAC, 50-60 Hz power supplies provide worldwide power
compatibility.
Primary and redundant circuits — The power supply circuitry is

configured to automatically switch over. Should the primary power
supply fail, the hot redundant power supply immediately assumes the
load of the failed primary supply, meaning zero downtime and no loss of
functionality.
Ease of maintenance — A failed power supply can be easily replaceable

from the rear at any time without powering down the matrix, and with
no tools required.
Power supply status LEDs — Front panel and rear panel LEDs indicate

the status of the primary and redundant power supplies.
of presets can be performed using a variety of local and remote control
mechanisms:
The serial ports allow remote control via a PC or a control system. The
Ethernet link allows multiple remote links with two levels of password
protection.
AC
Power
Redundant
Power
Supply
)
™
