Matrix Software, cont'd
12.

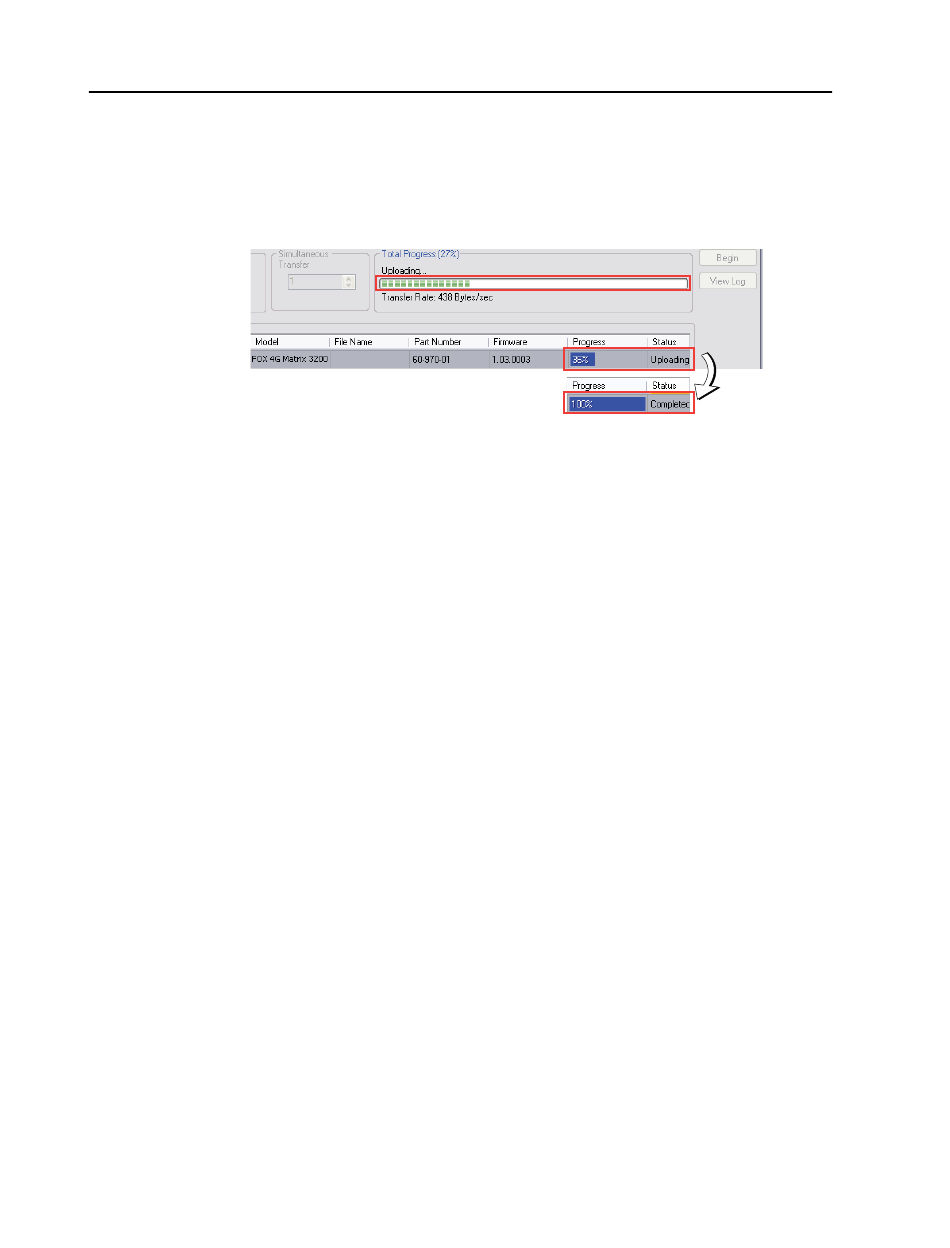

Figure 5-13 — Firmware Loader screen
9.
5-16 FOX 4G Matrix Switchers • Matrix Software
In the Firmware Loader window, click Begin (figure 5-13).
The Total Progress and Progress status bars show the progress of the
upload. The firmware upload to the switcher may take several minutes.
Once the status bars have progressed from 0% to 100%, and Status is listed
as Complete, the firmware loader utility resets the switcher.
Click Exit to close the Firmware Loader.
