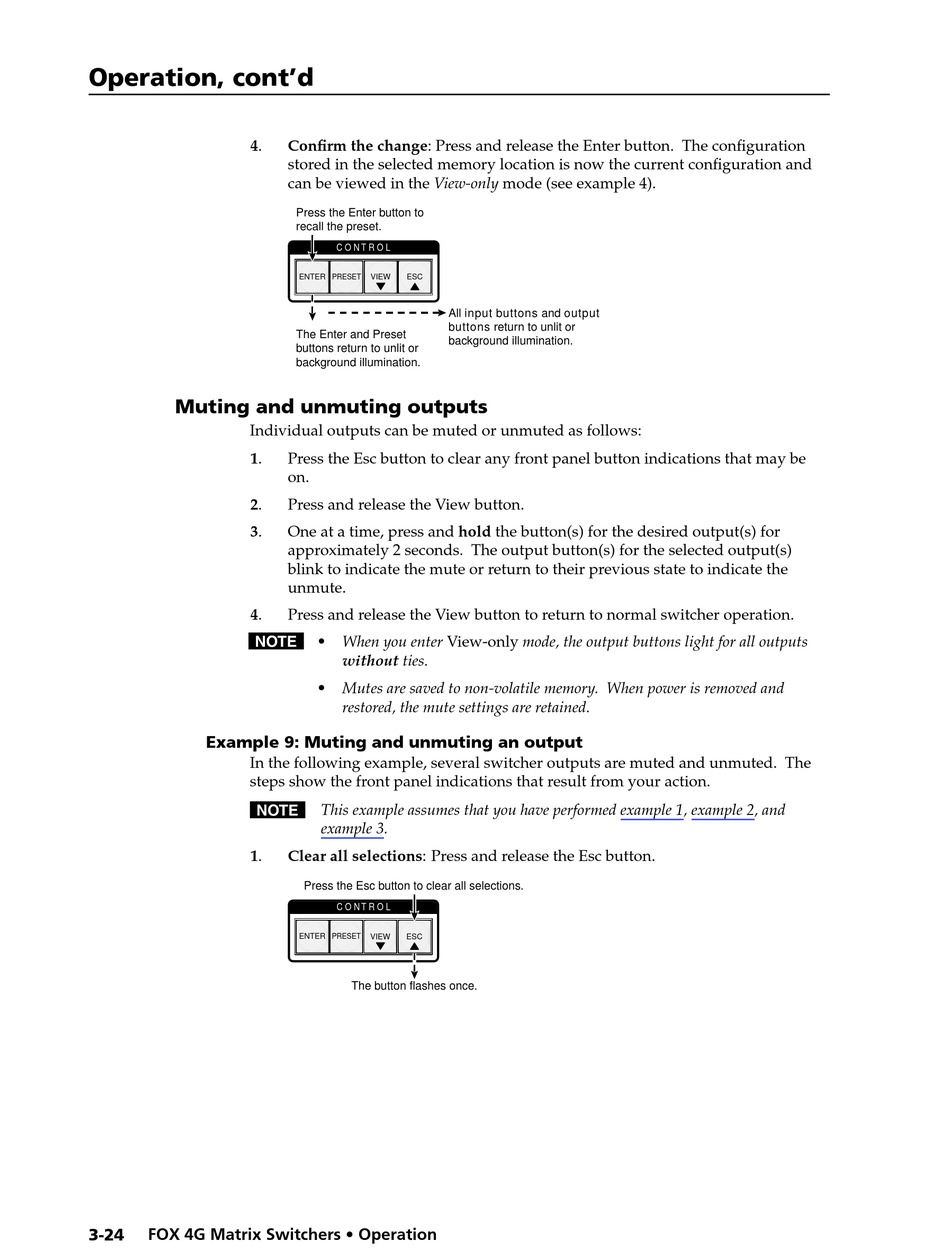

Muting.and.unmuting.outputs; Example.9:.Muting.and.unmuting.an.output - Extron electronics FOX 4G Matrix 3200 User Manual

Operation, cont'd
4.
Muting and unmuting outputs
Individual outputs can be muted or unmuted as follows:
1.
2.
3.
4.
N • When you enter View-only mode, the output buttons light for all outputs
Example 9: Muting and unmuting an output
In the following example, several switcher outputs are muted and unmuted. The
steps show the front panel indications that result from your action.
N This example assumes that you have performed example 1, example 2, and
1.
3-24 FOX 4G Matrix Switchers • Operation
Confirm the change: Press and release the Enter button. The configuration
stored in the selected memory location is now the current configuration and
can be viewed in the View-only mode (see example 4).
Press the Enter button to
recall the preset.
C O N T R O L
ENTER PRESET
VIEW ESC
All input buttons and output
buttons return to unlit or
The Enter and Preset
background illumination.
buttons return to unlit or
background illumination.
Press the Esc button to clear any front panel button indications that may be
on.
Press and release the View button.
One at a time, press and hold the button(s) for the desired output(s) for
approximately 2 seconds. The output button(s) for the selected output(s)
blink to indicate the mute or return to their previous state to indicate the
unmute.
Press and release the View button to return to normal switcher operation.
without ties.
• Mutes are saved to non-volatile memory. When power is removed and
restored, the mute settings are retained.
example 3.
Clear all selections: Press and release the Esc button.
Press the Esc button to clear all selections.
C O N T R O L
ENTER PRESET VIEW ESC
The button flashes once.
