Operation, cont'd

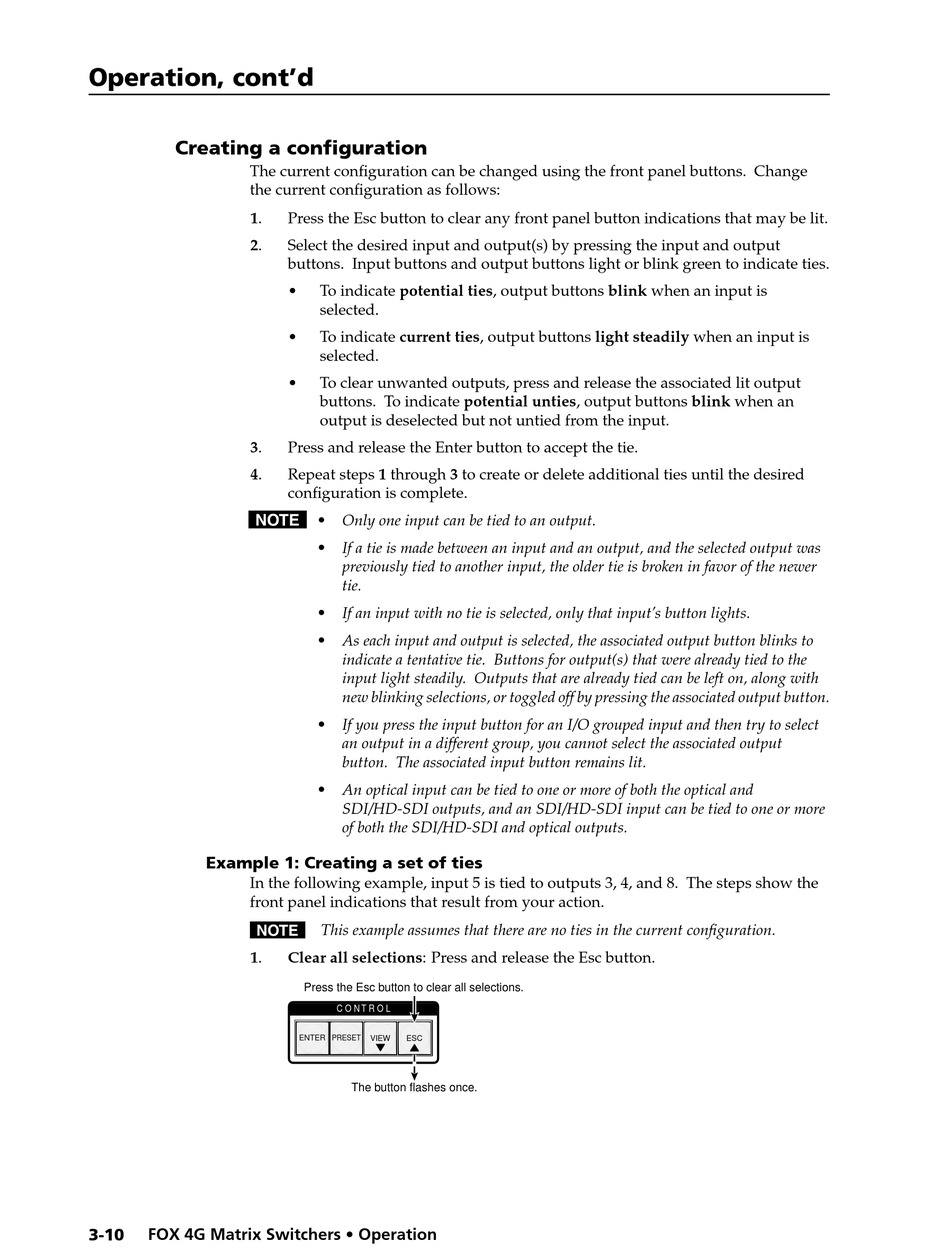

Creating a configuration
The current configuration can be changed using the front panel buttons. Change
the current configuration as follows:
1.
2.
3.
4.
N
Example 1: Creating a set of ties
In the following example, input 5 is tied to outputs 3, 4, and 8. The steps show the
front panel indications that result from your action.
N This example assumes that there are no ties in the current configuration.
1.
3-10 FOX 4G Matrix Switchers • Operation
Press the Esc button to clear any front panel button indications that may be lit.
Select the desired input and output(s) by pressing the input and output
buttons. Input buttons and output buttons light or blink green to indicate ties.
• To indicate potential ties, output buttons blink when an input is
selected.
• To indicate current ties, output buttons light steadily when an input is
selected.
• To clear unwanted outputs, press and release the associated lit output
buttons. To indicate potential unties, output buttons blink when an
output is deselected but not untied from the input.
Press and release the Enter button to accept the tie.
Repeat steps 1 through 3 to create or delete additional ties until the desired
configuration is complete.
• Only one input can be tied to an output.
• If a tie is made between an input and an output, and the selected output was
previously tied to another input, the older tie is broken in favor of the newer
tie.
• If an input with no tie is selected, only that input's button lights.
• As each input and output is selected, the associated output button blinks to
indicate a tentative tie. Buttons for output(s) that were already tied to the
input light steadily. Outputs that are already tied can be left on, along with
new blinking selections, or toggled off by pressing the associated output button.
• If you press the input button for an I/O grouped input and then try to select
an output in a different group, you cannot select the associated output
button. The associated input button remains lit.
• An optical input can be tied to one or more of both the optical and
SDI/HD-SDI outputs, and an SDI/HD-SDI input can be tied to one or more
of both the SDI/HD-SDI and optical outputs.
Clear all selections: Press and release the Esc button.
Press the Esc button to clear all selections.
C O N T R O L
ENTER PRESET VIEW ESC
The button flashes once.
