The 4400 uses the Compact Flash data card as primary storage for data. It automatically
Where you can
save data
saves data in the card when monitoring is on. The Compact Flash card must be installed
in either data card Slot 1 or Slot 2 in order to record data.
NOTE: Although 4400 is able to detect availability of data card in either slot, Dranetz
strongly recommends the use of only one card slot (one data card) at a time.
The 4400 requires a Compact Flash data card with minimum storage capacity of 32MB,
Data card size
maximum of 128MB. See Appendix A Optional Accessories for the part numbers of
Compact Flash cards supplied by Dranetz.
NOTE: Dranetz Compact Flash data cards have been tested to work properly with
the 4400. Non-Dranetz Compact Flash cards may not be compatible with the
instrument and cannot be supported by Dranetz Customer Service in case
problems arise. Users are advised to use only Dranetz parts and accessories.
The following files are created on the data card: filename.set for setups template and
Filename
filename.ddb for saved events. The maximum allowable length for a site/file name is 32
characters.

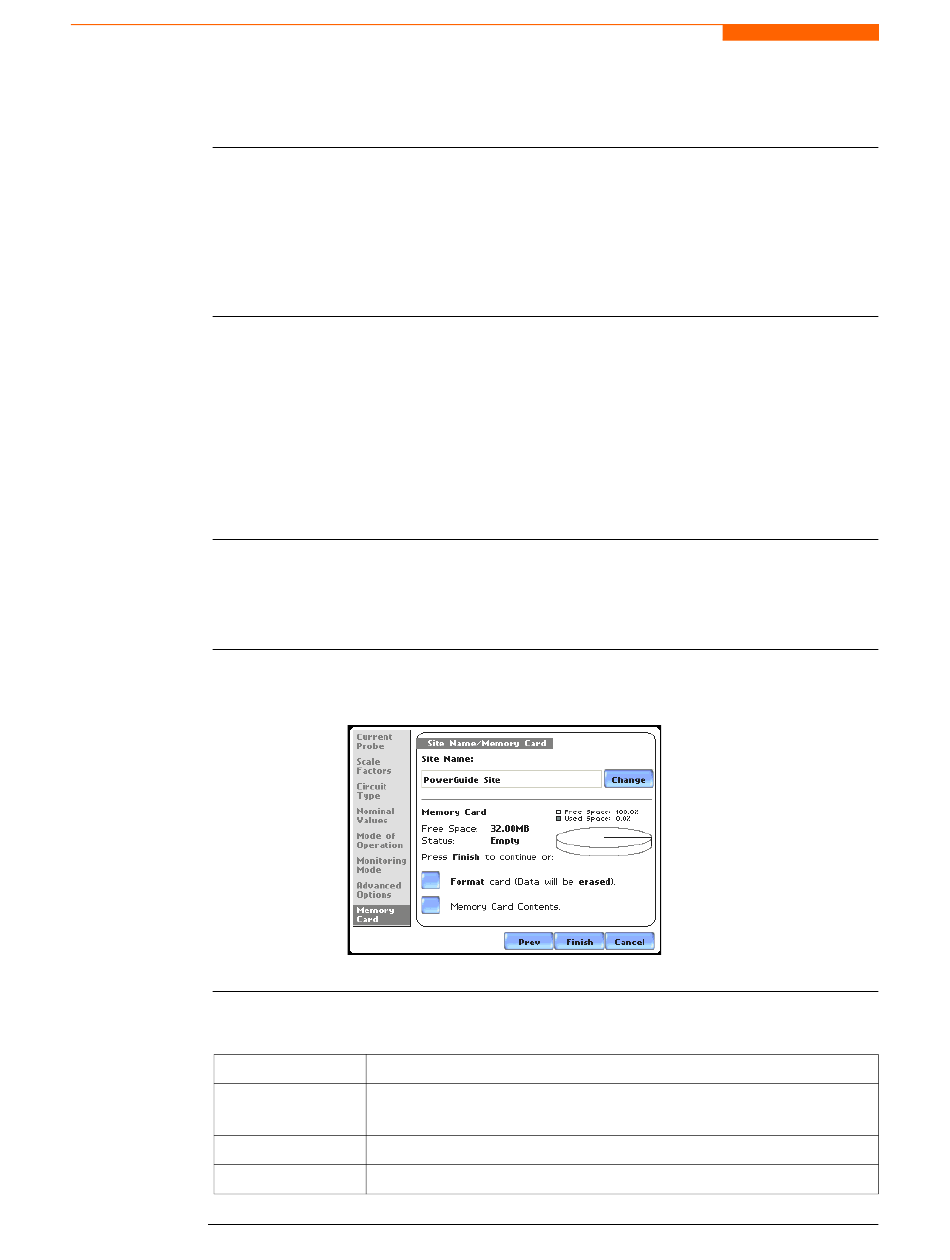

Data card screen Before monitoring begins, the Site Name/Memory Card screen is displayed. The screen
reports the current operational status of the data card.
The following messages may appear in the data card status line.
Data card status
messages
Status Message
Not Inserted
Empty
Contains File
5-20
Data card not inserted or not detected. Insert a valid data card to
proceed.
Data card is empty.
Data card presently contains files.
MARK113pg
Description
Continued on next page
