Overview

Users have the option to view QOS compliance reports in two ways: via EN50160 or
Report types
Status. Each report has their own method of presenting compliance data. Each also
differs on the length of evaluation period to monitor compliance. From the Home
screen, press Reports.
EN50160 displays statistical reports on QOS compliance. Statistical data is calculated

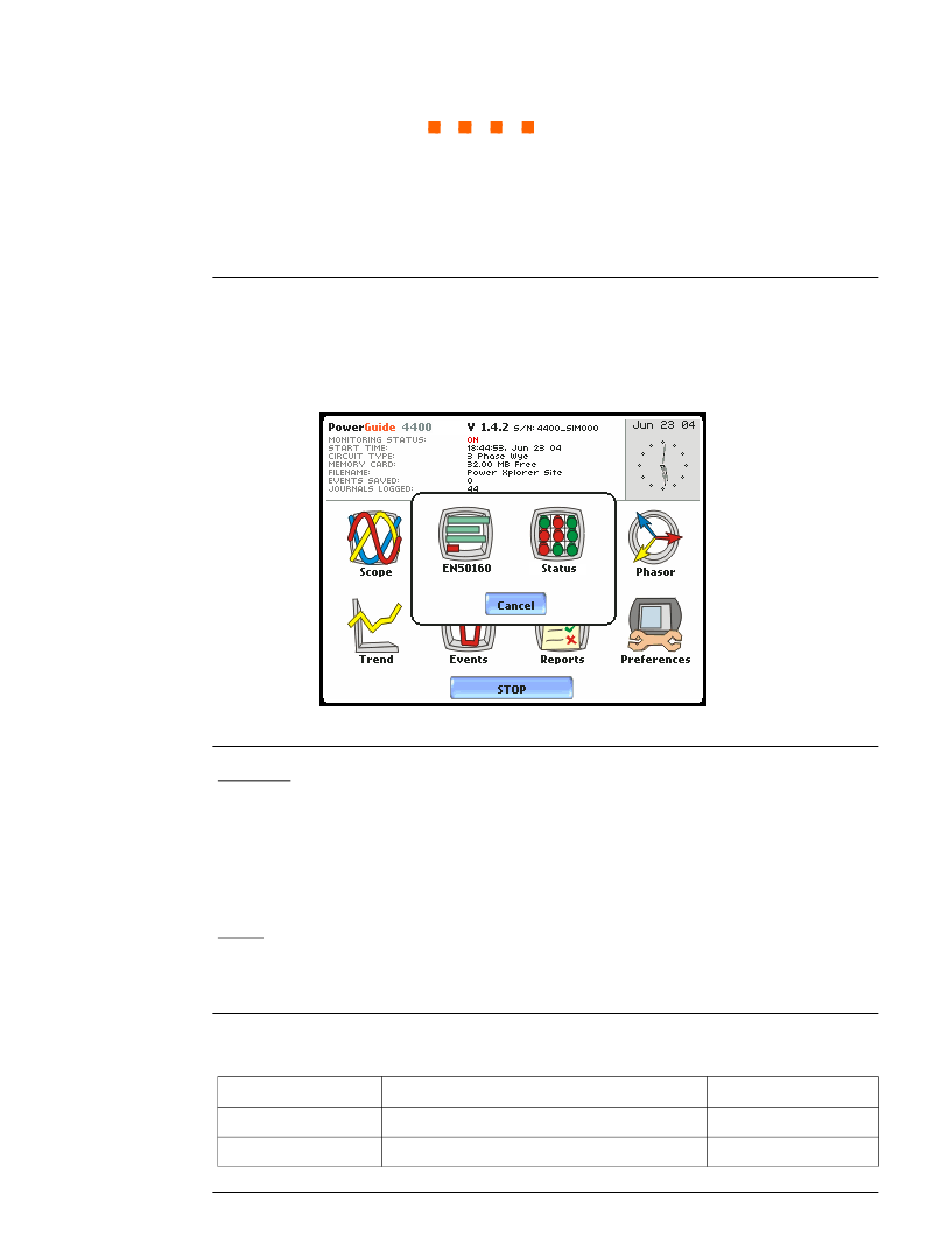

View Reports
options
on the required parameters specified in EN50160 over a one week interval to produce a
PASS/FAIL decision of compliance. The standard monitoring period is one complete
week, beginning Sunday 00:00 (midnight). Monitoring periods of less than one week
will render an evaluation status that is Incomplete and compliance marked as
Undetermined. Press EN50160 to access the EN50160 statistical reports.
Status displays meter data (or event count) in a 2x2, 3x3, or 4x4 matrix. The
annunciator panel is also color coded to indicate whether the parameter is within limits.
The elements of the matrix are linked to the journal plot screen.
This chapter covers the following topics.
In this chapter
C H A P T E R
Reports
Section
A EN50160
B Status Report in Annunciator Panel
8
MARK491bpg2
Topic See Page
8-2
8-16
8-1
