Circuit Setup
(continued)
Action...

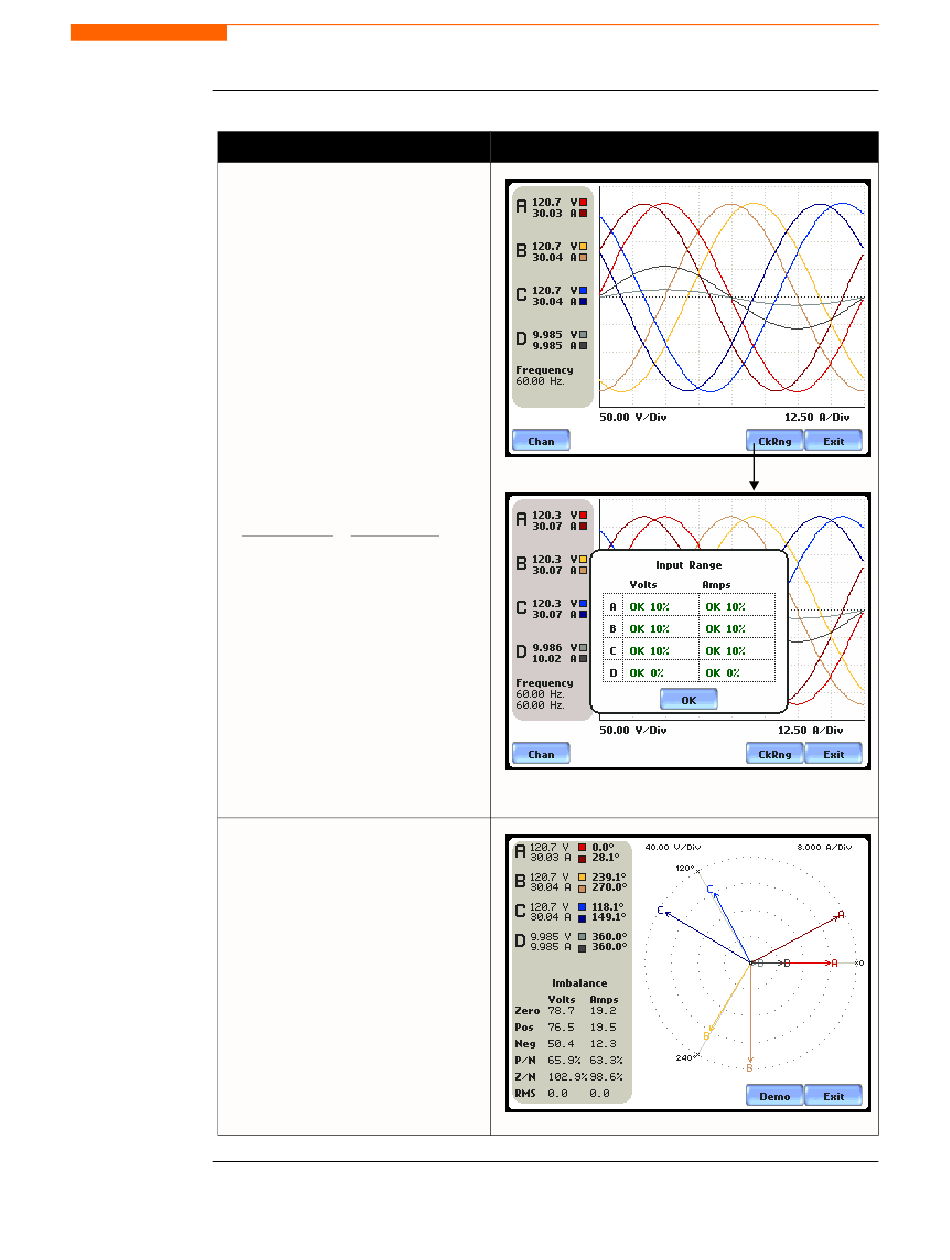

STEP 2: Scope mode allows users
to verify if waveforms look
correct for the specified wiring
setup.
• To check input range, press
CkRng. The Input Range
screen displays the detected
range for voltage and current
channels A, B, C, and D.
• The instrument registers a
message on the Input Range
screen that corresponds to the
detected input range for each
channel:
Input Range
OK
OVER
UNDER
N/A
CLIP
• When done checking the input
range, press OK to return to the
Scope mode screen. Once in
Scope mode screen, press Exit
to return to Circuit Type
Selection screen.
STEP 3: Phasor display shows a
graph that indicates phase
relations between voltage and
current.
For more information on phasors,
refer to Chapter 3 View Real
Time Data - Section D Voltage
and Current Phasor.
• Press Demo to show animated
phasor rotations.
• Press Exit to return to Circuit
Type Selection screen.
Result...
Description
Within Range
Over Range
Under Range
Channel Disabled
Clipping
